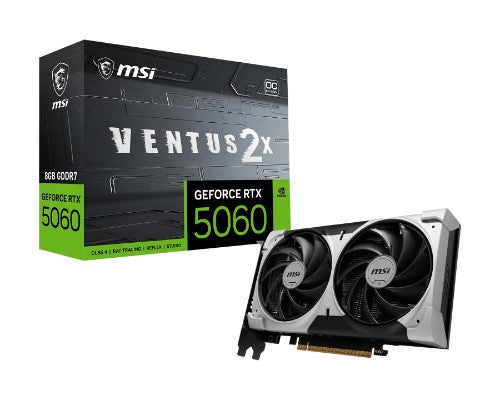

MSI GeForce RTX 5060 8G VENTUS 2X OC V1 NVIDIA 8 GB GDDR7

NVIDIA GeForce RTX 5060, 2535MHz, 8GB GDDR7, 128 bit, PCI Express x16 5.0, 1 x HDMI (2.1b), 3 x DP (2.1b), CUDA, DirectX 12 Ultimate, OpenGL 4.6, 145W

Key Features

• Powered by the NVIDIA Blackwell architecture and DLSS 4.5
• Core Clocks:
• Extreme Performance: 2535 MHz (MSI Center)
• Boost: 2527 MHz
• TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow
• Heat Pipes designed for efficient heat transfer, the heat pipes effectively draw thermal energy away from the GPU, improving overall cooling performance

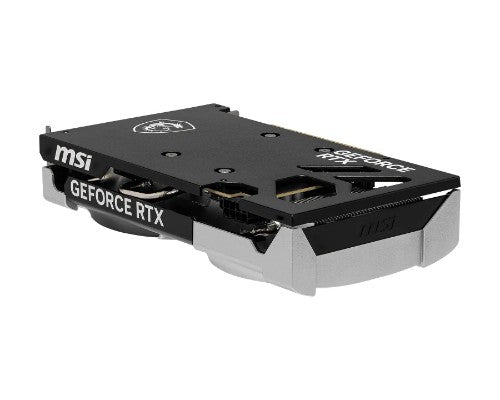

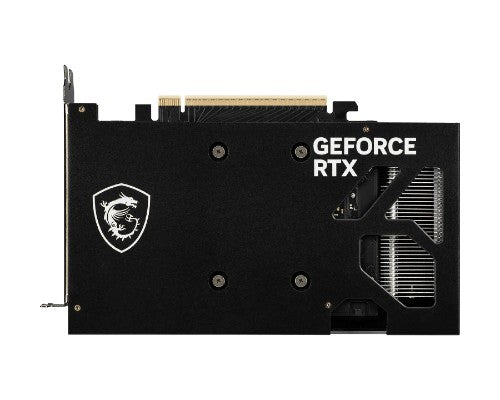

• Reinforcing Backplate: The reinforcing backplate features an airflow vent that allows exhaust air to directly pass through
• MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time
• Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world

Description

TAKE THE ESSENTIALS
VENTUS focuses on the essentials to tackle any challenge. Its efficient thermal solution is encased in a resilient enclosure with a neutral aesthetic, allowing this sleek graphics card to integrate seamlessly into any build.

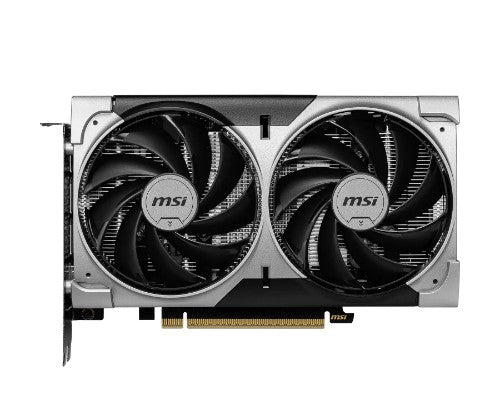

DUAL-FAN THERMAL DESIGN
Two fans on a large heatsink ensure great cooling performance with a quieter experience.

MSI CENTER
BRINGING IT ALL TOGETHER
MSI's exclusive MSI Center software empowers you to maximize your MSI products. Monitor, tweak, and optimize in real-time with just a few clicks. One of its standout features, AI Tuning, intelligently adjusts your system to meet AI-oriented requirements.

AFTERBURNER
PRECISION CONTROLS,
UNLIMITED POWER
MSI Afterburner is the world's leading graphics card overclocking software, offering complete control and real-time system monitoring. It’s free and compatible with most graphics cards.

MSI APP PLAYER
SEAMLESS GAMING EXPERIENCE
Developed under an exclusive partnership with BlueStacks, the MSI APP Player provides a seamless gaming experience between mobile gaming and the PC.

Specifications

Processor
Graphics processor	GeForce RTX 5060
Maximum resolution	7680 x 4320 pixels
Graphics processor family	NVIDIA
CUDA	Yes
Processor frequency	2535 MHz
Processor boost clock speed	2527 MHz
Maximum displays per videocard	4
CUDA cores	3840
Memory
Discrete graphics card memory	8 GB
Graphics card memory type	GDDR7
Memory bus	128 bit
Data transfer rate	28 Gbit/s

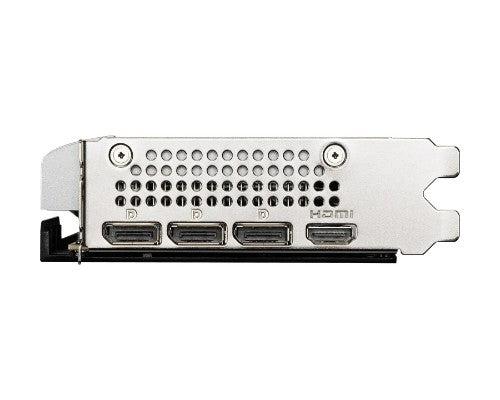

Ports & interfaces
Interface type	PCI Express x16 5.0
HDMI ports quantity	1
DVI-I ports quantity	0
DVI-D ports quantity	0
DisplayPorts quantity	3
HDMI version	2.1b
DisplayPort version	2.1b
Performance
NVIDIA G-SYNC	Yes
TV tuner integrated	No
DirectX version	12 Ultimate
OpenGL version	4.6
HDCP	Yes
Dual Link DVI	No
Design
Number of fans	2 fan(s)
Cooling type	Active
Form factor	Full-Height/Half-Length (FH/HL)
Cooling technology	MSI TORX FAN 5.0
Power
Minimum system power supply	550 W
Supplementary power connectors	1x 8-pin
Power consumption (typical)	145 W
Weight & dimensions
Weight	548 g
Height	120 mm
Depth	41 mm
Length	197 mm
Packaging data
Package weight	840 g
Technical details
Legal guarantee	3 year(s)
