Intel Core 7 150U (12MB Cache), Intel Iris Xe Graphics, LAN, WLAN, Bluetooth, No OS
Key Features
- No OS
- Intel Core 7 150U (12MB Cache)
Description
MSI Cubi NUC 1M-001BAU Black, Barebone NUC Tall, Core 7 150U/Up to DDR5/2*M.2+1*2.5'SSD&HDD/2*HDMI/2*TBT/2*LAN/Wifi6E/Card Reader/Switch Cable/3Y

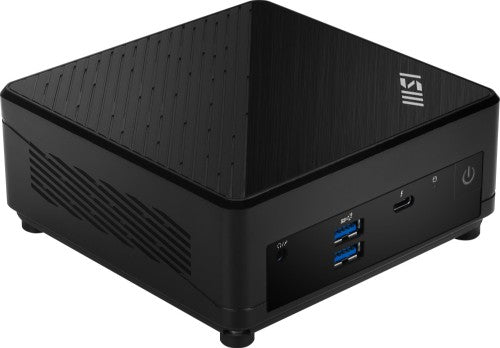

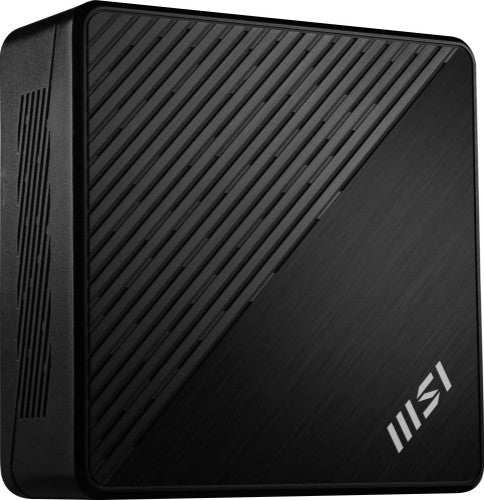

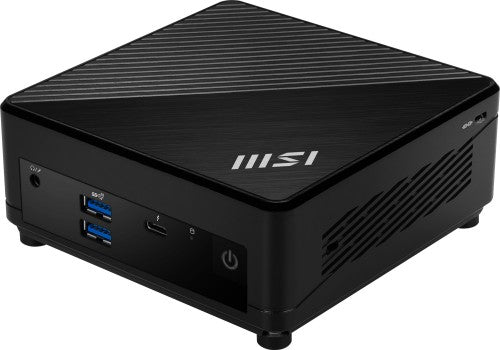

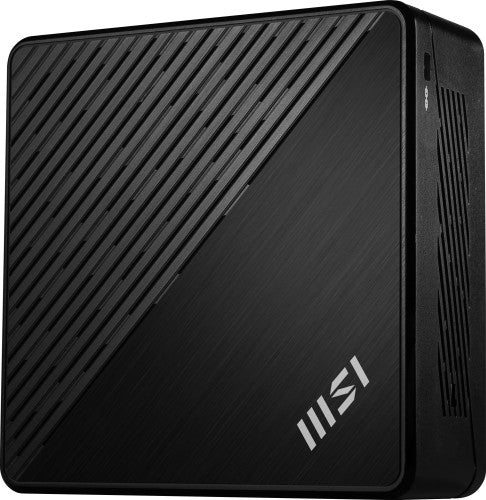

The MSI Cubi NUC 1M is a compact and versatile barebone mini PC. Powered by an Intel Core 7-150U processor, it offers impressive performance in a small package. With dual DDR5 SODIMM slots and M.2 SSD support, you can customize storage and memory to your needs. Enjoy versatile connectivity with dual HDMI, Thunderbolt, and Wi-Fi/Bluetooth. This barebone system gives you the freedom to build your ideal mini PC.
SPECIFICATION
Processor
Intel Core 7-150U Processor
Max Boost Clock
Up to 5.40 GHz
Number of Cores
10
Number of Threads
12
Chipset
SOC
Intel vPro
No
Memory Slots
2 DDR5 SO-DIMM
Max Memory
64 GB
Audio
HD Audio
Ethernet
Yes
Wireless
Wi-Fi 6E (802.11ax) + Bluetooth 5.3
Ports

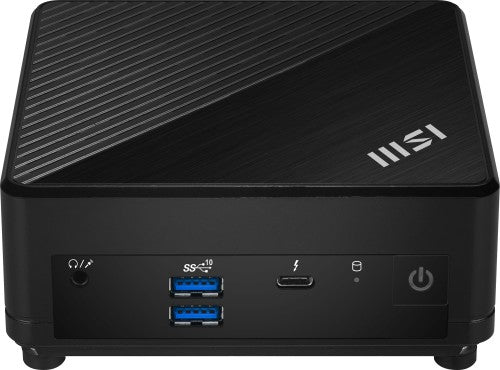

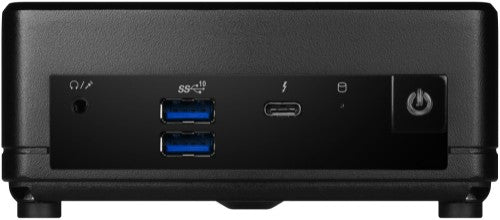

I/O Ports (Side):
2 USB 3.2 Gen 2 Type A
Mic-in/Headphone-out combo

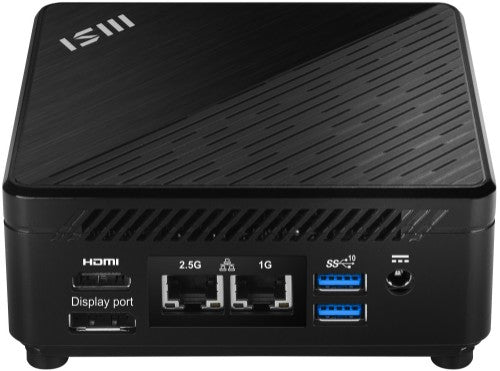

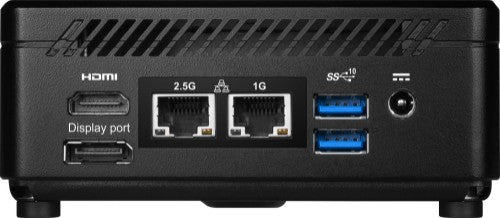

I/O Ports (Rear):
2 USB 3.2 Gen 2 Type A (R)
2 RJ45
2 HDMI out (v2.0)
Card Reader
Yes
Form Factor
Mini
Colour
Black
Dimensions (WxDxH)
135.6 x 132.5 x 50.10 mm
Weight
Starting at 1.45 kg
Warranty
3-Years
Specifications
| Motherboard |
|---|
| Motherboard form factor |
NUC |
| Number of processors supported |
1 |
| Motherboard chipset |
Intel SoC |
| Processor |
|---|
| Built-in processor |
Yes |
| Processor model |
150U |
| Processor threads |
12 |
| Processor family |
Intel Core 7 |
| Processor cores |
10 |
| Number of processors supported |
1 |
| Motherboard chipset |
Intel SoC |
| Processor manufacturer |
Intel |
| Processor cache |
12 MB |
| Performance cores |
2 |
| Efficient cores |
8 |
| Performance-core Max Turbo Frequency |
5.4 GHz |
| Efficient-core Max Turbo Frequency |
4 GHz |
| Performance-core base frequency |
1.8 GHz |
| Efficient-core base frequency |
1.2 GHz |
| Processor generation |
Intel Core (Series 1) |
| Memory |
|---|
| Memory slots type |
SO-DIMM |
| Number of memory slots |
2 |
| Supported memory types |
DDR5-SDRAM |
| Supported memory clock speeds |
5200 MHz |
| Maximum internal memory |
64 GB |
| Video |
|---|
| Graphics card family |
Intel |
| On-board graphics card |
Yes |
| Storage |
|---|
| Supported storage drive types |
HDD & SSD |
| Storage drive sizes supported |
2.5,M.2 |
| Storage drive interface |
M.2 |
| Number of storage drives supported |
3 |
| Compatible memory cards |
MicroSD (TransFlash) |
| Card reader integrated |
Yes |
| SSD form factor |
M.2 |
| NVMe |
Yes |
| Graphics |
|---|
| Graphics card family |
Intel |
| On-board graphics card |
Yes |
| Number of displays supported |
4 |
| On-board graphics card model |
Intel Iris Xe Graphics |
| Performance |
|---|
| Motherboard form factor |
NUC |
| Trusted Platform Module (TPM) version |
2.0 |
| Trusted Platform Module (TPM) |
Yes |
| Number of processors supported |
1 |
| Motherboard chipset |
Intel SoC |
| Operating system installed |
No |
| Number of displays supported |
4 |
| Audio |
|---|
| Built-in speaker(s) |
No |
| Network |
|---|
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| LAN controller |
Intel I226-V |
| Bluetooth version |
5.3 |
| Bluetooth |
Yes |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| WLAN controller model |
Intel Wi-Fi 6E AX211 |
| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| Combo headphone/mic port |
Yes |
| VGA (D-Sub) ports quantity |
0 |
| USB 2.0 ports quantity |
0 |
| Microphone in |
No |
| HDMI version |
1.4b/2.1 |
| HDMI ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
2 |
| DVI port |
No |
| DisplayPorts quantity |
0 |
| DC-in jack |
Yes |
| Thunderbolt 4 ports quantity |
2 |
| Expansion slots |
|---|
| Number of M.2 (M) slots |
2 |
| Design |
|---|
| VESA mounting |
Yes |
| Motherboard form factor |
NUC |
| Product type |
Mini PC barebone |
| Housing material |
Plastic |
| Panel mounting interface |
100 x 100 mm |
| On/off switch |
Yes |
| Cooling type |
Active |
| Product colour |
Black |
| Chassis type |
0.84L sized PC |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Colour |
|---|
| Product colour |
Black |
| Technical details |
|---|
| Panel mounting interface |
100 x 100 mm |
| Trusted Platform Module (TPM) version |
2.0 |
| Trusted Platform Module (TPM) |
Yes |
| Cooling type |
Active |
| Chassis type |
0.84L sized PC |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Packaging data |
|---|
| AC adapter included |
Yes |
| Package width |
205 mm |
| Package depth |
220 mm |
| Package height |
94 mm |
| Package weight |
1.45 g |
| Software |
|---|
| Operating system installed |
No |
| Management features |
|---|
| On/off switch |
Yes |
| Features |
|---|
| Number of displays supported |
4 |
| Power |
|---|
| Power supply type |
External AC adapter |
| Power supply |
120 W |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 60 °C |
| Storage relative humidity (H-H) |
0 - 90% |
| Operating temperature (T-T) |
0 - 35 °C |
| Operating relative humidity (H-H) |
0 - 85% |
| Weight & dimensions |
|---|
| Width |
132.5 mm |
| Depth |
135.6 mm |
| Height |
50.1 mm |
| Weight |
0.625 g |
| Package width |
205 mm |
| Package depth |
220 mm |
| Package height |
94 mm |
| Package weight |
1.45 g |
| Packaging content |
|---|
| Mouse included |
No |
| Display included |
No |
| AC adapter included |
Yes |
| Keyboard included |
No |
| Other features |
|---|
| Chassis type |
0.84L sized PC |
