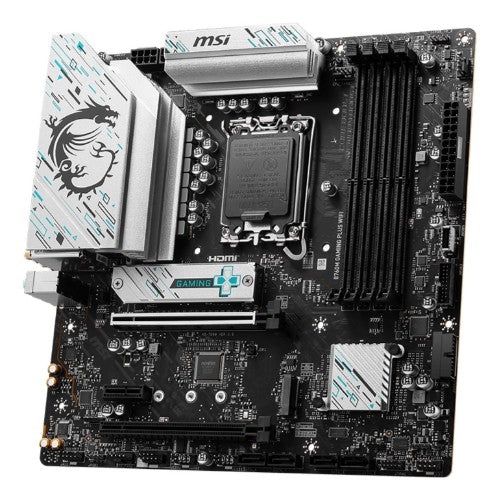

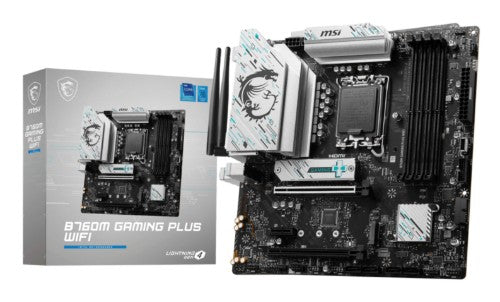

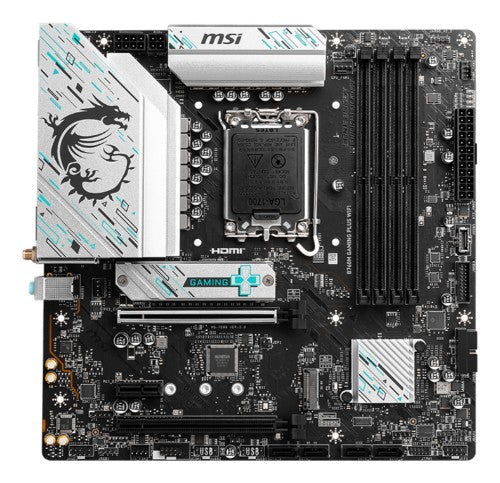

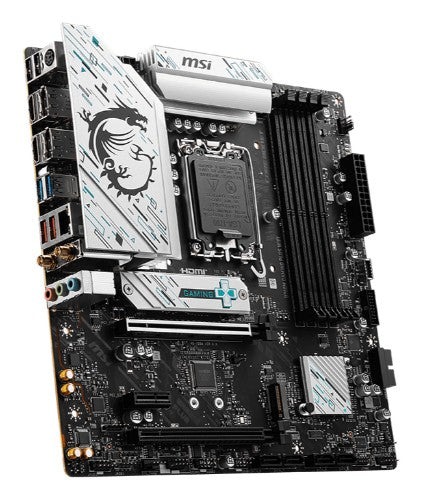

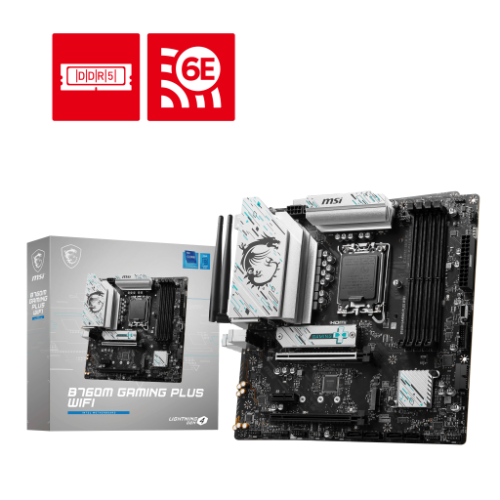

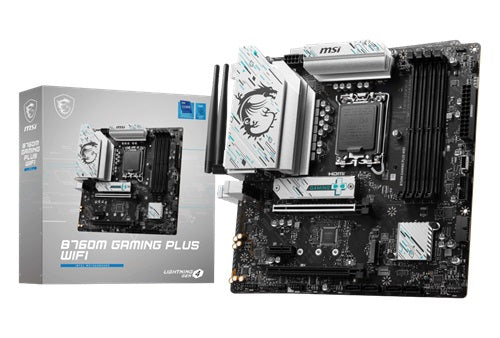

Intel B760, 4x DDR5, 2x HDMI, 2x DisplayPort, 2x M.2, 4x SATA 6G, 2.5G LAN, Wi-Fi 6E, mATX
Key Features
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
- Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2 10G
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- High Quality PCB: 6-layer PCB made by 2oz thickened copper
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Description
B760M GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want it all.
LIGHTNING GEN 4 PCI-EDoubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.
REINFORCED,
HEAVY SOLDERED CONNECTIONSSecure to the motherboard with extra solder points and support the weight of heavy graphics cards.
Specifications
| Internal I/O |
|---|
| Number of M.2 (M) slots |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
1 |
| Front panel connector |
Yes |
| Supported storage drive interfaces |
M.2, SATA III |
| USB 2.0 connectors |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
4 |
| TPM connector |
Yes |
| Number of SATA III connectors |
4 |
| Front panel audio connector |
Yes |
| CPU fan connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| RGB LED pin header |
Yes |
| Performance |
|---|
| Component for |
PC |
| Motherboard chipset family |
Intel |
| Motherboard chipset |
Intel B760 |
| Motherboard form factor |
micro ATX |
| Audio output channels |
7.1 channels |
| Supported processor sockets |
LGA 1700 |
| RAID levels |
0, 1, 5, 10 |
| Windows operating systems supported |
Windows 10, Windows 11 |
| Processor |
|---|
| Processor manufacturer |
Intel |
| Compatible processor series |
Intel® Celeron®, Intel® Pentium® Gold |
| Processor socket |
LGA 1700 |
| Supported processor sockets |
LGA 1700 |
| Maximum number of SMP processors |
1 |
| Memory |
|---|
| Number of memory slots |
4 |
| Supported memory types |
DDR5-SDRAM |
| Memory slots type |
DIMM |
| Memory channels |
Dual-channel |
| Supported memory clock speeds |
6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz |
| Maximum internal memory |
192 GB |
| Supported memory clock speed (max) |
6800 MHz |
| ECC сompatibility |
Non-ECC |
| Storage controllers |
|---|
| Supported storage drive interfaces |
M.2, SATA III |
| RAID levels |
0, 1, 5, 10 |
| Number of storage drives supported |
6 |
| RAID support |
Yes |

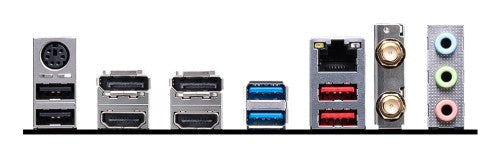

| Rear panel I/O ports |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
| DisplayPort version |
1.4 |
| USB 2.0 ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
1 |
| VGA (D-Sub) ports quantity |
0 |
| HDMI version |
2.1 |
| HDMI ports quantity |
2 |
| DVI-D ports quantity |
0 |
| DisplayPorts quantity |
2 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| Wi-Fi standards |
802.11a, 802.11ad, 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Bluetooth |
Yes |
| Bluetooth version |
5.3 |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Features |
|---|
| Power source type |
ATX |
| Component for |
PC |
| Motherboard chipset family |
Intel |
| Motherboard chipset |
Intel B760 |
| Motherboard form factor |
micro ATX |
| Audio output channels |
7.1 channels |
| Supported processor sockets |
LGA 1700 |
| Windows operating systems supported |
Windows 10, Windows 11 |
| Audio chip |
Realtek ALC897 |
| Expansion slots |
|---|
| Number of M.2 (M) slots |
2 |
| PCI Express x1 (Gen 3.x) slots |
2 |
| PCI Express x16 (Gen 4.x) slots |
2 |
| BIOS |
|---|
| BIOS type |
UEFI AMI |
| Clear CMOS jumper |
Yes |
| BIOS memory size |
256 Mbit |
| ACPI version |
6.4 |
| System Management BIOS (SMBIOS) version |
3.5 |
| Power |
|---|
| Power source type |
ATX |
| Weight & dimensions |
|---|
| Width |
243.8 mm |
| Depth |
243.8 mm |
