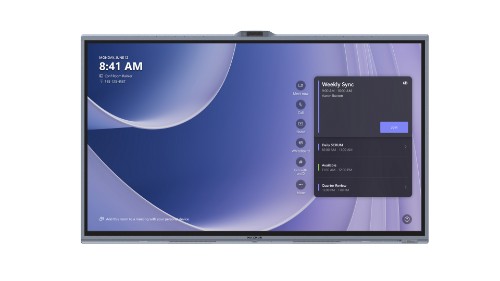

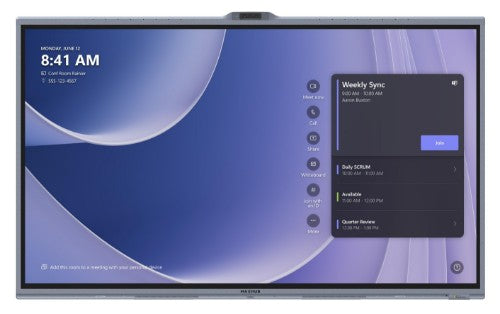

XBoard V7 series V655T 65" Microsoft Teams Rooms Interactive Touch Display
Description
The MAXHUB XBoard is a Windows-based, all-in-one collaboration solution designed for meeting rooms and huddle spaces. It consists of a high-resolution 4K LCD touch display, a triple-camera system, crystal-clear speakers and a 16-microphone array. As a certified Microsoft Teams Room device, the MAXHUB XBoard oers seamless colloboration and immersive video conferencing experiences.
Specifications
| Display |
|---|
| Display diagonal |
165.1 cm (65") |
| Display technology |
IPS |
| Display resolution |
3840 x 2160 pixels |
| Pixel pitch |
0.372 x 0.372 mm |
| Aspect ratio |
16:9 |
| Response time |
8 ms |
| LED backlight |
Yes |
| Viewing angle |
178° |
| Touchscreen |
Yes |
| Touchscreen technology |
Capacitive |
| LED backlighting type |
Direct-LED |
| Display brightness |
350 cd/m² |
| Contrast ratio (typical) |
1200:1 |
| Number of simultaneous touchpoints |
50 |
| Maximum refresh rate |
60 Hz |
| Anti-glare surface |
Yes |
| Design |
|---|
| Housing colour |
Black |
| VESA mounting |
Yes |
| Ambient light sensor |
Yes |
| Motion sensor |
Yes |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| USB port type |
USB Type-A |
| USB port |
Yes |
| Performance |
|---|
| Built-in processor |
Yes |
| Processor manufacturer |
Intel |
| RAM capacity |
16 GB |
| Storage capacity |
256000 MB |
| Processor model |
i5-1240P |
| Processor family |
Intel® Core™ i5 |
| Audio |
|---|
| Built-in speaker(s) |
Yes |
| Built-in microphone |
Yes |
| Number of speakers |
2 |
| Speaker power |
40 W |
| Camera |
|---|
| Built-in camera |
Yes |
| Total megapixels |
50 MP |
| Field of view (FOV) angle |
99° |
| Camera privacy shutter |
Yes |
| Second camera resolution |
50 MP |
| Second camera field of view (FOV) angle |
68° |
| Network |
|---|
| Wi-Fi standards |
Wi-Fi 6 (802.11ax) |
| Bluetooth |
Yes |
| Bluetooth version |
5.1 |
| Wi-Fi |
Yes |
| Ethernet LAN |
Yes |
| Ports & interfaces |
|---|
| USB port type |
USB Type-A |
| USB port |
Yes |
| Audio RCA inputs |
1 |
| Audio RCA outputs |
1 |
| HDMI input ports quantity |
3 |
| HDMI output ports quantity |
2 |
| RJ-45 ports quantity |
2 |
| Power |
|---|
| Power source type |
AC |
| Input voltage |
100 - 240 V |
| Power consumption (max) |
350 W |
| Power consumption (idle) |
0.5 W |
| Power consumption (average) |
275 W |
| Weight & dimensions |
|---|
| Width |
1488 mm |
| Depth |
91 mm |
| Height |
914 mm |
| Weight |
35.5 kg |
| Packaging data |
|---|
| Package width |
1628 mm |
| Package depth |
208 mm |
| Package height |
1005 mm |
| Package weight |
47.5 kg |
| Packaging content |
|---|
| Mounting kit |
Yes |
| Cables included |
AC, HDMI |
| Stylus pen |
Yes |
| Number of stylus pens |
2 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
10 - 90% |
| Technical details |
|---|
| Warranty period |
3 year(s) |
| Features |
|---|
| Built-in speaker(s) |
Yes |
