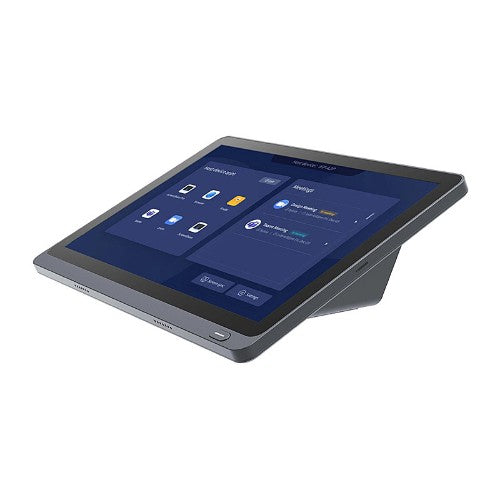

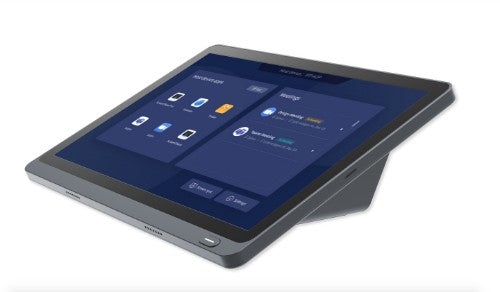

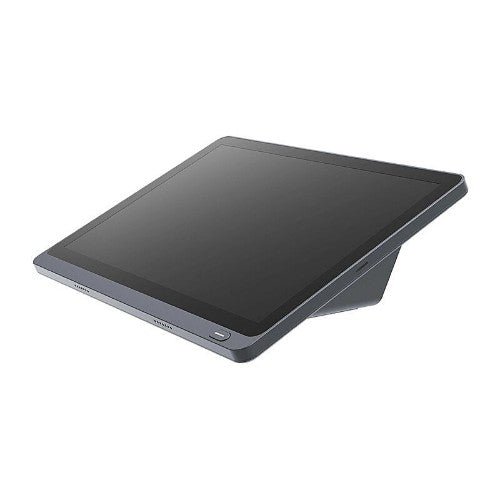

MAXHUB TCP10M touch control panel 25.6 cm (10.1") 1920 x 1080 pixels

10.1" 1920(H)×1080(V), 280cd/m2, Mali-G52, A53×4, 4G/16G, 15000 Hours, 60Hz, Android 10.0, 241.6×157.4×83.2mm, 850 g

Key Features

• Touch Screen
• Power Over Ethernet
• Cable Free Paring
• Sleek Design

Description

MAXHUB Touch Controller
Transform your meeting spaces with the MAXHUB TCP10M touch controller, designed to seamlessly control
MAXHUB IFP/Commercial Display/VideoBar family with leading video conferencing solutions. With one-touch join and easy content sharing, you can enhance collaboration and elevate your meeting experience. Plus, with a simple setup using a single cable routed through the back of the device, installation is a breeze.

Specifications

Display
Display diagonal	25.6 cm (10.1")
Display resolution	1920 x 1080 pixels
Display brightness	280 cd/m²
Touchscreen technology	Capacitive
Number of simultaneous touchpoints	10
LED backlight	Yes
Performance
Ethernet LAN	Yes
RAM capacity	4 MB
Product colour	Black
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Operating system installed	Android
Audio
Built-in speaker(s)	Yes
Number of speakers	1
Speaker power	0.8 W
Built-in microphone	Yes
Ports & interfaces
RJ-45 ports quantity	2
Bluetooth	Yes
Bluetooth version	5.0
Power
Power source type	AC, PoE
Power consumption (max)	24 W
Input voltage	12 V
Input current	3 A
Weight & dimensions
Width	241.6 mm
Depth	83.2 mm
Height	157.4 mm
Weight	850 g
Package width	320 mm
Package weight	1.86 kg
Package height	225 mm
Package depth	145 mm
Packaging data
Package width	320 mm
Package weight	1.86 kg
Package height	225 mm
Package depth	145 mm
Quantity per pack	1 pc(s)
Packaging content
Cables included	LAN (RJ-45)
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Logistics data
Quantity per pack	1 pc(s)
