86'' 3840 × 2160 VA, 16:9, 350 nits, 12th gen Intel Core i5 – 1240p, 155 W, HDMI, USB, RS232, RJ-45, Wide Camera, 1957 × 1180.1 × 103 mm
Description

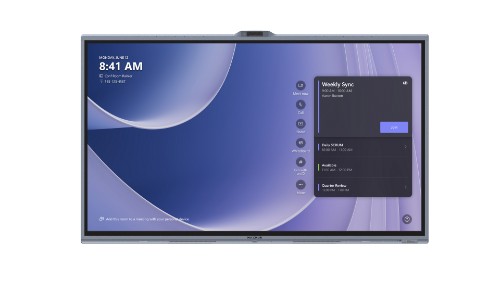

MAXHUB XBOARD V7 T8650Flagship interactive display for business meetings, with a flip camera, ultra-narrow bezel, high screen-to-body ratio, and capacitive touch.
BORDERLESS COLLABORATION, ULTIMATE IMMERSIONWith an ultra-slim 2.6mm bezel and an impressive 97.8% screen-to-body ratio, enjoy a wider view with minimal distractions. Keep your content focused and enhance meeting immersion like never before.
MINI-LED IFPRedefine visual performance with the industry-leading Mini-LED IFP, offering 1152-zone local dimming for exceptional brightness, contrast, and detail. Ideal for immersive presentations and collaboration.
FLAGSHIP DISPLAYDelivering stunning color accuracy with 96% NTSC and ΔE≤1, the flagship display offers an ultra-high 1,200,000:1 contrast ratio, 500 nits full-screen brightness, and an impressive 1250 nits peak brightness for vivid, lifelike visuals in any environment.
NON-GLARE SCREENThe MAXHUB XBoard screen features Non-Glare Screen technology to reduce reflections and enhance visibility in bright settings. Its surface glass is coated with an anti-fingerprint layer to prevent smudges from touch.
FLAGSHIP IMAGINGUnlock professional-grade imaging with triple 50MP cameras and a motorized flip design for dynamic shooting angles. Independent Quad-Core DSP delivers outstanding performance, while multimodal AI—featuring facial, audio, lip movement, and voiceprint recognition—delivers smarter, faster, and more intuitive interactions for every scenario.
MULTIPLE-SPEAKER TRACKINGWhen multiple people are discussing, the screen splits to highlight each speaker.
AUTO FRAMINGWith auto-framing, MAXHUB XBoard display automatically adjusts to achieve the best angle based on the number of participants and their location, so it feels like a face-to-face interaction.
SPEAKER TRACKINGSpeaker-tracking technology locates the sound source in real time, ensuring the speaker is always the center of attention. It supports two active speakers with dual focus.
INTELLIGENT FOCUSIntelligent focus technology enables individual close-ups for multiple participants simultaneously, delivering an immersive in-person experience.
Specifications
| Display |
|---|
| Display diagonal |
2.18 m (86") |
| Display technology |
VA |
| Display resolution |
3840 x 2160 pixels |
| Pixel pitch |
0.4935 x 0.4935 mm |
| Aspect ratio |
16:9 |
| Response time |
8 ms |
| LED backlight |
Yes |
| Viewing angle |
178° |
| Touchscreen |
Yes |
| Touchscreen technology |
Capacitive |
| LED backlighting type |
Direct-LED |
| Display brightness |
350 cd/m² |
| Contrast ratio (typical) |
1200:1 |
| Number of simultaneous touchpoints |
50 |
| Maximum refresh rate |
60 Hz |
| Anti-glare surface |
Yes |
| Design |
|---|
| Housing colour |
Black |
| VESA mounting |
Yes |
| Ambient light sensor |
Yes |
| Motion sensor |
Yes |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| USB port |
Yes |
| Performance |
|---|
| Built-in processor |
Yes |
| RAM capacity |
16 GB |
| Storage capacity |
26000 MB |
| Audio |
|---|
| Built-in speaker(s) |
Yes |
| Built-in microphone |
Yes |
| Number of speakers |
2 |
| Speaker power |
40 W |
| Camera |
|---|
| Built-in camera |
Yes |
| Total megapixels |
50 MP |
| Camera privacy shutter |
Yes |
| Network |
|---|
| Wi-Fi standards |
Wi-Fi 6 (802.11ax) |
| Bluetooth |
Yes |
| Bluetooth version |
5.1 |
| Wi-Fi |
Yes |
| Ethernet LAN |
Yes |
| Ports & interfaces |
|---|
| USB port |
Yes |
| Audio RCA inputs |
1 |
| Audio RCA outputs |
1 |
| HDMI input ports quantity |
2 |
| HDMI output ports quantity |
1 |
| RJ-45 ports quantity |
2 |
| USB Type-C ports quantity |
2 |
| Power |
|---|
| Power source type |
AC |
| Input voltage |
100 - 240 V |
| Power consumption (max) |
465 W |
| Power consumption (idle) |
0.5 W |
| Power consumption (average) |
275 W |
| Weight & dimensions |
|---|
| Width |
1957 mm |
| Depth |
103 mm |
| Height |
1180.1 mm |
| Weight |
58 kg |
| Packaging data |
|---|
| Package width |
2110 mm |
| Package depth |
225 mm |
| Package height |
1283 mm |
| Package weight |
78.5 kg |
| Packaging content |
|---|
| Mounting kit |
Yes |
| Cables included |
AC, HDMI |
| Stylus pen |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
10 - 90% |
| Technical details |
|---|
| Warranty period |
3 year(s) |
| Features |
|---|
| Built-in speaker(s) |
Yes |
