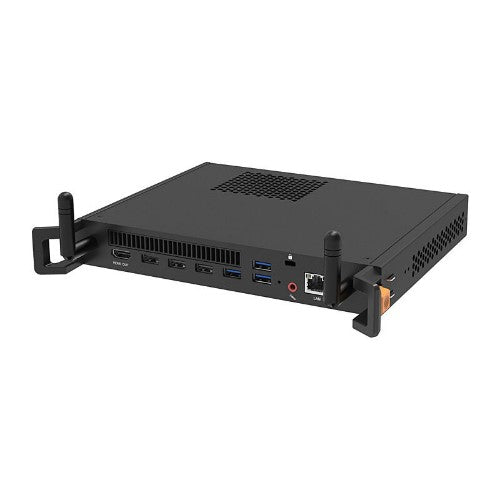

MT71F 12th Gen Intel-i7 Windows 11 Pro PC module
Description
MT71F is modular PC which could be easily inserted into MAXHUB Interactive Flat panel , with 12th Generation Intel® Core™ i7 Processor and pre-installed the MAXHUB OS based on windows system.
Specifications
| Processor |
|---|
| Processor generation |
12th gen Intel® Core™ i7 |
| Processor cache type |
Smart Cache |
| Processor family |
Intel® Core™ i7 |
| Processor manufacturer |
Intel |
| Processor model |
i7-12650H |
| Processor cores |
10 |
| Processor boost frequency |
4.7 GHz |
| Processor cache |
24 MB |
| Processor threads |
16 |
| Performance cores |
6 |
| Efficient cores |
4 |
| Processor base power |
45 W |
| Maximum turbo power |
115 W |
| Efficient-core Max Turbo Frequency |
3.5 GHz |
| Performance-core Max Turbo Frequency |
4.4 GHz |
| Memory |
|---|
| Internal memory |
16 GB |
| Internal memory type |
DDR4-SDRAM |
| Storage |
|---|
| Total storage capacity |
256 GB |
| Optical drive type |
No |
| Storage media |
SSD |
| Number of storage drives supported |
1 |
| Number of SSDs installed |
1 |
| SSD capacity |
256 GB |
| Total SSDs capacity |
256 GB |
| Graphics |
|---|
| Discrete graphics card |
No |
| On-board graphics card family |
Intel® UHD Graphics |
| Discrete graphics card model |
Not available |
| On-board graphics card model |
Intel® UHD Graphics |
| On-board graphics card |
Yes |
| On-board GPU manufacturer |
Intel |
| Optical drive |
|---|
| Optical drive type |
No |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
| Thunderbolt 3 ports quantity |
0 |
| USB 2.0 ports quantity |
3 |
| HDMI ports quantity |
1 |
| HDMI version |
2.0 |
| Ethernet LAN (RJ-45) ports |
1 |
| Line-out |
Yes |
| Microphone in |
Yes |
| Design |
|---|
| Product colour |
Black |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Performance |
|---|
| Product type |
Mini PC |
| Trusted Platform Module (TPM) |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Software |
|---|
| Operating system installed |
Windows 11 Pro |
| Operating system architecture |
64-bit |
| Power |
|---|
| Power consumption (typical) |
110 W |
| Power consumption (standby) |
2.3 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-10 - 55 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Storage relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Width |
244.5 mm |
| Depth |
32 mm |
| Height |
207.2 mm |
| Weight |
1.2 kg |
| Package width |
314 mm |
| Package depth |
70 mm |
| Package height |
256 mm |
| Package weight |
1.79 kg |
| Packaging data |
|---|
| Package width |
314 mm |
| Package depth |
70 mm |
| Package height |
256 mm |
| Package weight |
1.79 kg |
| Packaging content |
|---|
| Display included |
No |
| Display |
|---|
| Display included |
No |
| Other features |
|---|
| Processor manufacturer |
Intel |
| Trusted Platform Module (TPM) |
Yes |
| On-board graphics card |
Yes |
