Logitech Scribe

Scribe

Key Features

• Logitech extended guarantee adds one year to the original manufacturer's guarantee which provides that your Logitech Scribe hardware shall be free from defects in material and workmanship.
• The purchase of a one year Logitech extended guarantee, at the time of hardware or room solution purchase, adds one additional year to the original Logitech manufacturer's two year limited hardware guarantee.
• Logitech one year extended guarantee is intended to ensure that your Logitech hardware shall be free from defects in material and workmanship for a total of three years.
• The Logitech extended guarantee provides an additional year of coverage that helps protect your investment, maximise its value, and ensure optimal performance of your Logitech conference room hardware.
• A three year guarantee is right in line with the typical depreciation and replacement cycle of most conference room equipment.

Description

Effortlessly share whiteboards into video meetings with Logitech Scribe, an AI-powered whiteboard camera for Microsoft Teams Rooms, Zoom Rooms, and other leading video conferencing services. With built-in AI and a custom lens, Scribe broadcasts whiteboard content into video meetings with outstanding clarity. Now, even remote participants can have the best seat at the table.

Scribe works with any dry erase marker and all whiteboard surfaces, capturing an area up to 2m W (6’) by 1.2m H (4’). Sharing into video meetings is quick and easy, whether using Scribe’s wireless share button or your meeting room touch controller, like Logitech Tap.

With a clean wall-mounted design and thoughtful cable management, Scribe installs elegantly and out of the way of meeting collaboration. Together with the whiteboard content camera, Scribe includes a share button, mounting components, power supply, and category cables for deployment at scale.

Specifications

Performance
Product colour	White
Bluetooth	Yes
Technical details
Product colour	White
Bluetooth	Yes
Harmonized System (HS) code	85258900
Video
HD type	Full HD
Supported video modes	1080p
Maximum frame rate	15 fps
Maximum video resolution	1920 x 1080 pixels
System requirements
Minimum system requirements	Whiteboard Maximum Whiteboard Dimensions: Height: 1.2 m (4 ft) Width: 2 m (6 ft) Customer-Supplied Cabling Cable Type: Cat5e or higher [up to 35 metres (115.83 ft) in total length]
Battery
Battery capacity	0.675 Wh
Logistics data
Master (outer) case width	300 mm
Master (outer) case gross weight	6.38 kg
Master (outer) case length	634 mm
Master (outer) case height	173 mm
Harmonized System (HS) code	85258900
Computer system
Minimum system requirements	Whiteboard Maximum Whiteboard Dimensions: Height: 1.2 m (4 ft) Width: 2 m (6 ft) Customer-Supplied Cabling Cable Type: Cat5e or higher [up to 35 metres (115.83 ft) in total length]
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 95%
Power
AC input voltage	100 - 240 V
Power source type	AC
Number of batteries supported	2
Battery technology	Lithium
Battery capacity	220 mAh
Weight & dimensions
Width	119 mm
Depth	573 mm
Height	149 mm
Weight	1.1 kg
Package width	152.2 mm
Package depth	623.6 mm
Package height	146.2 mm
Package weight	2.9 kg
Remote control dimensions (W x H x D)	71.8 x 71.8 x 12.7 mm
Remote control weight	108 g
Packaging data
Package width	152.2 mm
Package depth	623.6 mm
Package height	146.2 mm
Package weight	2.9 kg
Packaging content
Mounting kit	Yes
Remote control included	Yes

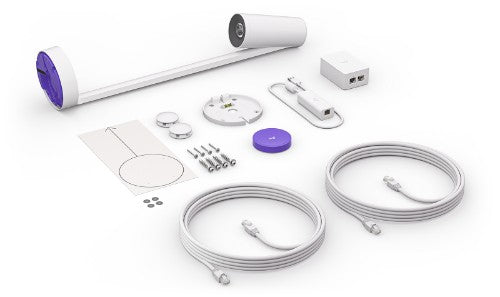

Packaging content	Camera Share Button Dongle Transceiver 100-240v Power Supply with International Adaptor Set 5.0 m Cat5e Cables x 2 Camera Installation Kit Documentation
Cables included	LAN (RJ-45)
Power cable length	5 m
Batteries included	Yes
Quick start guide	Yes
