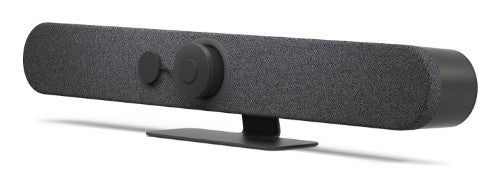

Rally Bar Mini
Description
LOGITECH RALLY BAR MINI ALL IN ONE 4K ULTRA HD VIDEO BAR,BUILTIN SPKR &MIC,GRAPHITE2YR WTY
Specifications
| Performance |
|---|
| Product type |
Group video conferencing system |
| Product colour |
Graphite |
| Tilt angle range |
-15 - 15° |
| PTZ control |
Yes |
| Pan range |
-25 - 25° |
| Technical details |
|---|
| Product type |
Group video conferencing system |
| Product colour |
Graphite |
| Tilt angle range |
-15 - 15° |
| PTZ control |
Yes |
| Pan range |
-25 - 25° |
| Video |
|---|
| HD type |
4K Ultra HD |
| Digital zoom |
4x |
| Supported video modes |
720p, 900p, 1440p, 2160p |
| Maximum frame rate |
30 fps |
| Audio |
|---|
| Output level |
90/99 dB |
| Output voltage Total Harmonic Distortion (THD) |
2% |
| Microphone pick-up range |
4.5 m |
| Built-in speaker(s) |
Yes |
| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| Microphone in |
Yes |
| Interface module |
|---|
| Interface module HDMI ports quantity |
3 |
| Interface module Ethernet LAN (RJ-45) ports |
1 |
| Interface module HDMI input ports quantity |
1 |
| Interface module HDMI output ports quantity |
2 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Wi-Fi |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Security algorithms |
128-bit AES |
| Camera |
|---|
| Field of view (FOV) angle |
120° |
| Horizontal field of view |
113° |
| Remote control interface |
Bluetooth |
| Digital zoom |
4x |
| Microphone |
|---|
| Microphone sensitivity |
-36 dB |
| Microphone frequency |
90 - 16000 Hz |
| Number of microphones |
6 |
| Sound pressure level (max) |
90 dB |
| System requirements |
|---|
| Minimum system requirements |
Internet Connection: Wired or wireless
USB Mode: Windows 11, Windows 10, the two most recent versions of macOS
Appliance Mode: Room solution software licence (not included) |
| Features |
|---|
| Telepresence |
No |
| Logistics data |
|---|
| Master (outer) case width |
300 mm |
| Master (outer) case gross weight |
4.73 kg |
| Master (outer) case length |
330 mm |
| Master (outer) case height |
160 mm |
| Computer system |
|---|
| Windows operating systems supported |
Yes |
| Mac operating systems supported |
MacOS |
| Minimum system requirements |
Internet Connection: Wired or wireless
USB Mode: Windows 11, Windows 10, the two most recent versions of macOS
Appliance Mode: Room solution software licence (not included) |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 95% |
| Heat dissipation |
64 BTU/h |
| Power |
|---|
| DC input voltage |
19 V |
| AC input voltage |
100 - 240 V |
| Current |
4.754 A |
| Weight & dimensions |
|---|
| Width |
719 mm |
| Depth |
101 mm |
| Height |
91.4 mm |
| Weight |
4.03 kg |
| Package width |
191 mm |
| Package depth |
789 mm |
| Package height |
199 mm |
| Package weight |
5.8 kg |
| Packaging data |
|---|
| Package width |
191 mm |
| Package depth |
789 mm |
| Package height |
199 mm |
| Package weight |
5.8 kg |
| Packaging content |
|---|
| Remote control included |
Yes |
| Packaging content |

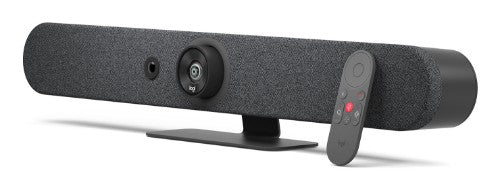

Rally Bar Mini Power supply AC power cord HDMI cable USB cable Remote control Lens caps for main lens and AI Viewfinder User documentation |
| Cables included |
AC, DC, HDMI, USB Type-A to USB Type-C |
| Power cable length |
2.5 m |
| HDMI cable length |
2 m |
| Batteries included |
Yes |
