4K UltraHD, 60 fps, 15x Zoom, HDMI, USB, RJ45, Mini XLR
Description

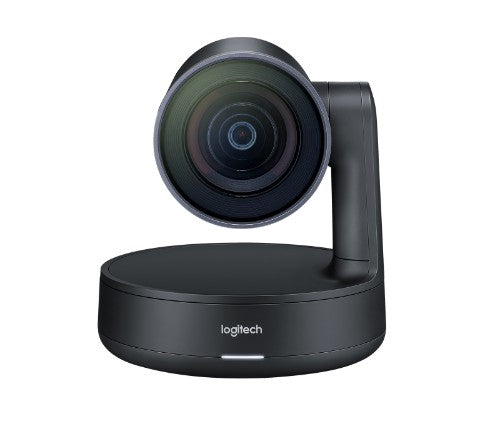

RALLY PlusPremier modular video conferencing system for large rooms
USB ModePlug and play Rally Plus with any PC, Mac, or Chromebox via USB
Appliance ModeDeploy Rally as a room system appliance with Logitech RoomMate, a computing appliance meeting room computer purpose-built for video conferencing.
Clean CablingKeep cables and components neat, organized, and secure. Two hubs for the table and display connected by a single CAT6 cable provide clean installation.
FIND THE BEST FIT FOR YOUR LARGE ROOMIn large rooms with one or two displays, deploy Rally with tremendous flexibility and ease
Simple To UseStart your meeting with just one touch, seamlessly connecting Rally to your preconfigured room solution.
LOOKS BRILLIANTUpgrade your large room meeting experience with cinema-quality video, outstanding color, and exceptional optical accuracy.
STAYS FOCUSEDUsing AI, human figure detection, and automated PTZ, Rally adapts to meeting dynamics and keeps the camera on the action.
SOUNDS AWESOMERally’s ultra-low distortion speakers deliver crystal clear, room-filling sound and make sure every voice is clearly heard.
Picks Up Voices at Every SeatRally’s exquisitely sensitive mic pods ensure that everyone in the meeting is clearly heard.
GREAT CONVERSATIONS START HEREAutomatic Sound OptimizationAuto-level loud and soft voices – while suppressing unwanted noise – with AI-based RightSound™ technology that improves over time.
Adaptive BeamformingFocus on the active talker with high-precision beamforming mics.
Full DuplexHear and be heard at the same time with excellent full duplex.
EXPAND THE CONVERSATIONAdd up to 7 mic pods to accommodate larger groups and provide convenient access to mute controls.
Simple To ManageMonitor and manage your meeting room devices from one single platform with Logitech Sync. Plus, get business insights into how your rooms are being used.
DEVICE MANAGEMENT TECHNOLOGY PARTNERSOur integration with partner solutions and dashboards means you can easily manage your devices in other platforms.
Specifications
| Performance |
|---|
| Product type |
Group video conferencing system |
| Product colour |
Graphite |
| Pan speed |
70 °/sec |
| Tilt speed |
70 °/sec |
| Tilt angle range |
-90 - 50° |
| PTZ control |
Yes |
| Pan range |
-90 - 90° |
| Technical details |
|---|
| Product type |
Group video conferencing system |
| Product colour |
Graphite |
| Pan speed |
70 °/sec |
| Tilt speed |
70 °/sec |
| Tilt angle range |
-90 - 50° |
| PTZ control |
Yes |
| Pan range |
-90 - 90° |
| Video |
|---|
| HD type |
4K Ultra HD |
| Optical zoom |
5x |
| Digital zoom |
3x |
| Supported video modes |
480p, 720p, 900p, 1080p, 1440p, 2160p |
| Maximum frame rate |
60 fps |
| Audio |
|---|
| Noise reduction |
Yes |
| Microphone pick-up range |
4.5 m |
| Echo cancellation |
Yes |
| Ports & interfaces |
|---|
| USB connector type |
USB Type-A, USB Type-B, USB Type-C |
| HDMI ports quantity |
4 |
| USB 2.0 ports quantity |
5 |
| Ethernet LAN (RJ-45) ports |
2 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Camera |
|---|
| Field of view (FOV) angle |
90° |
| Horizontal field of view |
260° |
| Optical zoom |
5x |
| Digital zoom |
3x |
| Focus adjustment |
Auto |
| Number of camera presets |
1 |
| Microphone |
|---|
| Microphone sensitivity |
-27 dB |
| Microphone frequency |
90 - 16000 Hz |
| Microphone direction type |
Omnidirectional |
| Microphone mute |
Yes |
| System requirements |
|---|
| Minimum system requirements |
– Windows 7, Windows 8.1 or Windows 10
– macOS 10.10 or higher
– Chrome OS
Resolutions higher than 1080p
– Windows 8.1 or higher or macOS 10.10 or higher
– USB 3.0 port and Type C cable
– Compatible software |
| Features |
|---|
| Telepresence |
No |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Computer system |
|---|
| Other operating systems supported |
ChromeOS |
| Windows operating systems supported |
Yes |
| Mac operating systems supported |
Yes, MacOS |
| Minimum system requirements |
– Windows 7, Windows 8.1 or Windows 10
– macOS 10.10 or higher
– Chrome OS
Resolutions higher than 1080p
– Windows 8.1 or higher or macOS 10.10 or higher
– USB 3.0 port and Type C cable
– Compatible software |
| Computer case |
|---|
| Other operating systems supported |
ChromeOS |
| Power |
|---|
| Power source type |
AC |
| Number of batteries supported |
2 |
| Battery capacity |
220 mAh |
| Weight & dimensions |
|---|
| Speaker dimensions (WxDxH) |
449 x 103 x 80 mm |
| Camera dimensions (WxDxH) |
152 x 152 x 182.5 mm |
| Microphone dimensions (WxHxD) |
102 x 102 x 21 mm |
| Interface module dimensions (W x D x H) |
206 x 179 x 40 mm |
| Package width |
275 mm |
| Package depth |
700 mm |
| Package height |
220 mm |
| Package weight |
8.53 kg |
| Packaging data |
|---|
| Package width |
275 mm |
| Package depth |
700 mm |
| Package height |
220 mm |
| Package weight |
8.53 kg |
| Packaging content |
|---|
| Speaker included |
Yes |
| Microphone included |
Yes |
| Remote control included |
Yes |
| Camera included |
Yes |
| Packaging content |

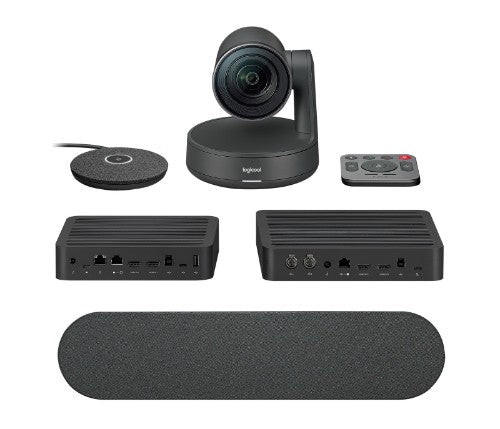

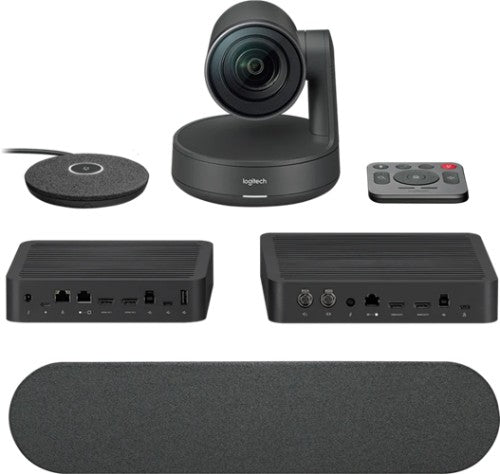

Logitech Rally Rally Camera Rally Display Hub Rally Table Hub Rally Speaker (x1) Rally Mic Pod (x1) Remote control USB Type C to USB Type C USB Type A to USB Type B CAT6A Ethernet cable HDMI Type A (x2) A/C cables (x2) Power Supplies (x2) Documentation Logitech Rally Plus Rally Camera Rally Display Hub Rally Table Hub Rally Speaker (x2) Rally Mic Pod (x2) Remote control USB Type C to USB Type C USB Type A to USB Type B CAT6A Ethernet cable HDMI Type A (x2) A/C cables (x2) Power Supplies (x2) Documentation |
| Batteries included |
Yes |
