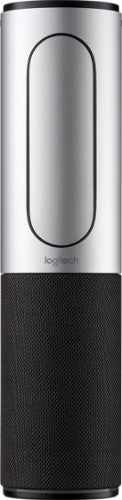

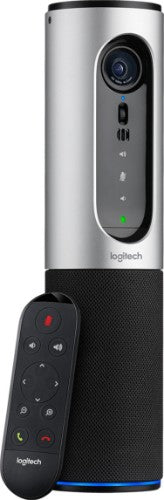

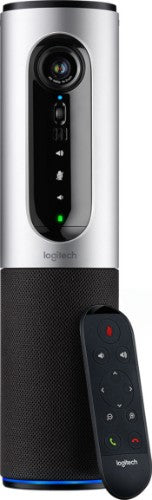

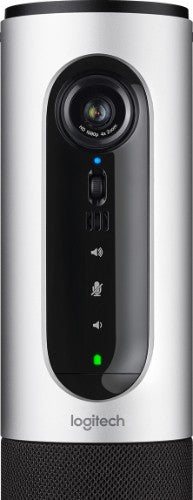

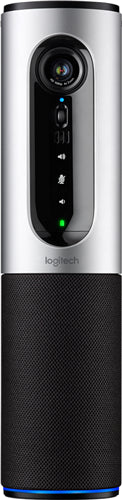

ConferenceCam Connect
Key Features
- Portable all-in-one design. Sleek, easy to carry and a snap to set up and use to expand the collaborative potential of the Anywhere Workplace.
- Optimised for teams of one to six. Experience HD 1080p video, 360-degree sound and wireless screen-mirror projection in virtually any workspace—and watch productivity soar.
- Multi-device connectivity. Simply connect a PC or Mac to conduct lifelike meetings within the user’s familiar computing environment or use the convenience of wireless connectivity for screen mirroring and audio pairing from a compatible mobile device. Compatible with Android and Windows 8.1 – see specifications for requirements.
- Interact with everyone at the table. The 90-degree field of view with digital pan, tilt and the 4X digital zoom in Full HD is ideal for small group meetings.
- Hear and be heard. The acoustics are tuned to provide a quality experience so that users can hear and be heard within a 3.6-metre (12-foot) diameter range.
Description
Logitech Connect is a portable, all-in-one videoconference solution with HD 1080p video, professional audio, and multi-device connectivity for small group collaboration.
Optimized for workgroups of 1-6 people, the affordable Connect videoconference solution offers multi-device connectivity and sets up in a snap to elevate small group collaboration to the next level.
Connect offers a generous 90-degree field of view with digital pan, mechanical tilt, 4x digital Full HD zoom, and a glass lens with autofocus. The mobile speakerphone features Bluetooth® wireless technology, Near Field Communication (NFC), and USB. With true 360-degree sound, users can hear and be heard within a 12-foot diameter range while acoustic echo and noise-cancelling technology delivers conversational realism.
For ultimate flexibility in the Anywhere Workplace, Connect runs on battery or AC power, provides multi-device connectivity and features certifications from Microsoft®, Cisco®, and Skype™ to ensure broad-based UC compatibility.
Specifications
| Performance |
|---|
| Product colour |
Grey |
| Tilt angle range |
-10 - 10° |
| PTZ control |
Yes |
| Bluetooth |
Yes |
| Technical details |
|---|
| Product colour |
Grey |
| Tilt angle range |
-10 - 10° |
| PTZ control |
Yes |
| Bluetooth |
Yes |
| Video |
|---|
| HD type |
Full HD |
| Digital zoom |
4x |
| Video formats supported |
H.264 |
| Supported video modes |
720p, 1080p |
| Maximum video resolution |
1920 x 1080 pixels |
| Audio |
|---|
| Microphone pick-up range |
3.6 m |
| Built-in speaker(s) |
Yes |
| Camera |
|---|
| Field of view (FOV) angle |
90° |
| Digital zoom |
4x |
| Focus adjustment |
Auto |
| Zoom capability |
Yes |
| Privacy type |
Privacy shutter |
| Privacy camera |
Yes |
| Photo feature |
Yes |
| Microphone |
|---|
| Microphone sensitivity |
-34 dB |
| Microphone Total Harmonic Distortion (THD) |
1% |
| Number of microphones |
2 |
| Sound pressure level (max) |
91.5 dB |
| System requirements |
|---|
| Minimum RAM |
2000 MB |
| Battery |
|---|
| Battery capacity |
11.52 Wh |
| Features |
|---|
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Mounting type |
Stand |
| Logistics data |
|---|
| Master (outer) case width |
308 mm |
| Master (outer) case gross weight |
6.46 kg |
| Master (outer) case length |
428 mm |
| Master (outer) case height |
200 mm |
| Computer system |
|---|
| Other operating systems supported |
ChromeOS |
| Windows operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Mobile operating systems supported |
Android |
| Computer case |
|---|
| Other operating systems supported |
ChromeOS |
| Power |
|---|
| Power source type |
AC, Battery |
| Number of batteries supported |
2 |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Battery capacity |
3200 mAh |
| Weight & dimensions |
|---|
| Width |
75 mm |
| Depth |
75 mm |
| Height |
304.2 mm |
| Weight |
766 g |
| Package width |
145 mm |
| Package depth |
419 mm |
| Package height |
91 mm |
| Package weight |
1.5 kg |

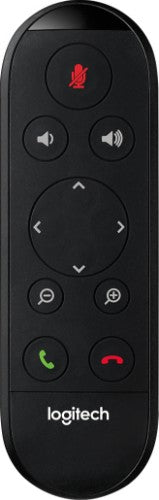

| Remote control dimensions (W x H x D) |
41 x 128 x 9 mm |
| Remote control weight |
32 g |
| Packaging content |
|---|
| Remote control included |
Yes |
| Packaging content |
Logitech Connect device Remote control 1.8 meter USB cable Power adapter with regional plugs Documentation |
| Cables included |
USB |
| Batteries included |
Yes |
| AC adapter included |
Yes |
| Quick start guide |
Yes |
