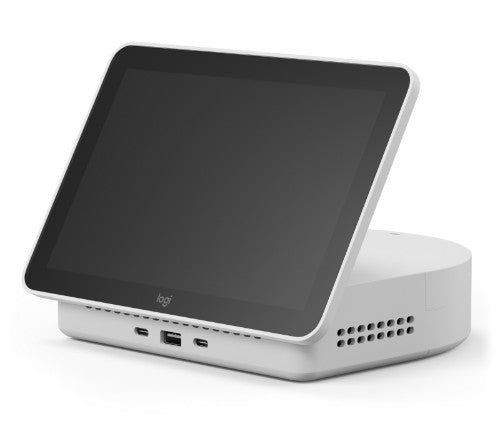

Logitech 939-002184 video conferencing system Ethernet LAN

8", IPS, 1x HDMI 2.0, 1x DisplayPort 1.4, 3x USB A, 4x USB C, RJ45, 201 x 176.9 x 141.2 mm, 1 kg

Description

A MULTI-PURPOSE DOCK
Logi Dock Flex is a managed docking station that enables easy and personalized desk booking for employees and simple device management for IT.

DESK AVAILABILITY AT A GLANCE
Employees never have to guess which desk is free, occupied, or in between. The 8” screen clearly indicates desk status at a glance.

BOOK SHARED DESKS WITH EASE
Tap to book and claim the desk directly at the desk, whether pre-booked or adhoc.

MANAGE SPACES AND DEVICES WITH EASE
Ensure that desks are fully operational at all times from any location, using Logitech Sync.

LOGITECH DESK BOOKING
Enable employees to easily find and reserve desks, choose desks near coworkers, and notify colleagues when they’re coming to the office.

MICROSOFT TEAMS
Reserve a shared desk in advance through Teams, Outlook, or right from Logi Dock Flex for adhoc bookings.

ZOOM WORKSPACE RESERVATION
Logi Dock Flex works as a scheduling display to allow for easy check-in and adhoc or advanced booking of the shared desk.

A Secure and Reliable Connection

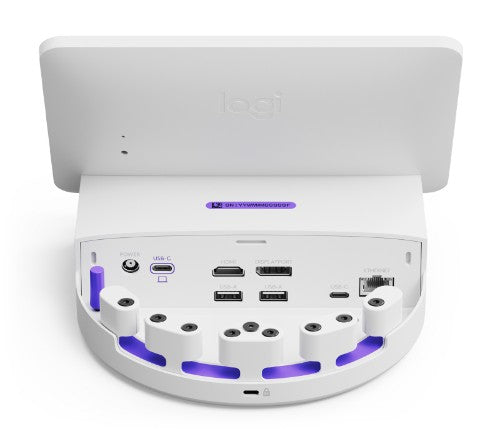

Attach up to two monitors with HDMI and DisplayPort. Attach peripherals with three IT-managed USB ports and Ethernet for security. There are also three front-facing USB ports for users.

Specifications

Performance
Product colour	White
Bluetooth	Yes
Bluetooth version	5.0
Technical details
Product colour	White
Bluetooth	Yes
Bluetooth version	5.0
Audio
Built-in speaker(s)	No
Ports & interfaces
HDMI ports quantity	1
HDMI version	2.0
DisplayPorts quantity	1
DisplayPort version	1.4
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Security algorithms	128-bit AES
Display
Display diagonal	20.3 cm (8")
Display resolution	1280 x 800 pixels
Display brightness	300 cd/m²
Oleophobic coating	Yes
System requirements
Minimum system requirements	Windows 11, Windows 10 macOS two most recent versions Available USB-C port AC Power The latest version of Logitech CollabOS For USB-C functionality, laptops must support USB Power Delivery 2.0 (or greater) for power delivery of up to 100W, USB 3.1 Gen 2 (or greater) for data transfer, and DisplayPort Alt mode for video output.
Features
Cable lock slot	Yes
Cable lock slot type	Kensington
Computer system
Windows operating systems supported	Yes
Mac operating systems supported	MacOS
Minimum system requirements	Windows 11, Windows 10 macOS two most recent versions Available USB-C port AC Power The latest version of Logitech CollabOS For USB-C functionality, laptops must support USB Power Delivery 2.0 (or greater) for power delivery of up to 100W, USB 3.1 Gen 2 (or greater) for data transfer, and DisplayPort Alt mode for video output.
Operational conditions
Storage temperature (T-T)	-40 - 75 °C
Storage relative humidity (H-H)	0 - 95%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Power
Power source type	DC
Weight & dimensions
Width	201 mm
Depth	177 mm
Height	141 mm
Weight	1 kg
Package width	229 mm
Package depth	241 mm
Package height	197 mm
Package weight	2.37 kg
Packaging data
Package width	229 mm
Package depth	241 mm
Package height	197 mm
Package weight	2.37 kg
Packaging content
Packaging content	Managed docking station Power supply + Regional AC cord 1.5m USB-C Cable + magnetic dock Power Supply Bracket
Cables included	USB Type-C, AC
