LG LAPA136-GF Signage Display Digital signage flat panel 3.45 m (136") LED Wi-Fi 500 cd/m² Full HD Black Built-in processor WebOS

136", 1920 x 1080, 500 nit, HDR10, HDR10 Pro, HDMI/DP/USB/LAN/RS232C/IR, webOS, 3005 x 1692.5 x 29.95 mm, 108.5 kg

Description

All-in-One LED Screen with Built-in Speaker
Experience the convenience of LG’s LED All-in-One LAPA series, featuring stunning 136-inch screen. This all-in-one package includes an embedded controller and built-in speaker, making setup a breeze. Dispelling the notion that LED displays are difficult and complex to install, it requires no controller connections or module configuration.

Easy Installation
The installation process for the LED All-in-One is straightforward. First, secure the cabinets (three for the LAPA136). Next, attach each LED display module to the cabinets, and finally, plug in the power cable. This simple installation saves time and labor, allowing users to easily manage the LED screen.

Simple Power Connection
The LAPA series operates with a double AC cable, simplifying power connections and ensuring a clean, tidy installation.

Quick Maintenance
In case of a failure related to the LED module or the system board, it can be serviced from the front. The LED module can be easily detached using the provided magnetic tool and replaced quickly without cabling.

Versatile Installation with Dedicated Accessories

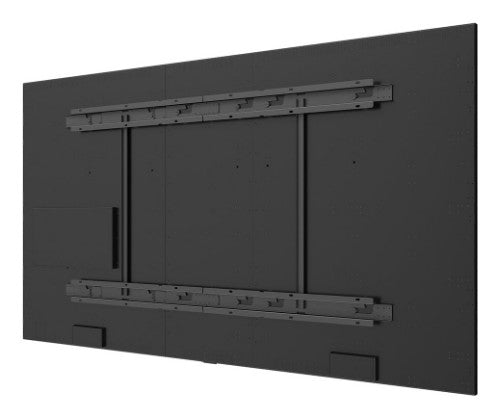

The product is offered with the necessary component including the landscape wall mount and tools for installation. For added convenience, a dedicated stand is available as an option, allowing you to easily position the screen based on your installation needs. Additionally, the LAPA series can be seamlessly arranged side by side in a 1 × N configuration, accommodating up to 10 screens to suit your specific installation site and purpose.

Real-time LG ConnectedCare
Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients’ businesses.

High Performance SoC with webOS
Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS smart signage platform offers an intuitive GUI and simple app development tools.

Compatible with AV Control Systems
The LAPA series supports Crestron Connected®* for high compatibility with professional AV controls to achieve seamless integration and automated control**, boosting business management efficiency.

* Initial setting from display is required for Crestron Connected® compatibility.
** Network based control
*** Crestron Connected® needs to be purchased separately.

Office Meeting Mode
With Office Meeting Mode, easily configure meeting room details such as room number. It also includes convenient features like automatic input switching, a presentation timer, and adjustable settings such as auto-brightness and picture mode.

* Users can enable Office Meeting Mode at EZ Setting menu of the Signage.

Wireless Screen Sharing
The LAPA series is compatible with LG One:Quick Share*, a wireless screen sharing solution. It helps to simply share one’s personal PC screen to the display with its button and embedded Wi-Fi**, and it can also adjust the basic setting values (volume, picture mode, auto bright, etc.) of the connected display without a remote control.

* LG One:Quick Share needs to be purchased separately.
** Users need to set up SoftAP enabled at Network Menu of the Signage.

Flame Spread Protection
The LAPA series has satisfied the standards for the BS476 Part7 Class 1 rating, confirming its compliance with flame spread standards. Its excellent fire resistance can help improve safety at the installation site.

* The LAPA series was evaluated for spread of flame at 1.5 min and final spread of flame under BS476 Part7:1997 (R2016) procedures, verified by TUV SUDCertification and Testing (China) Co., Ltd. in December 2024, and satisfied Class 1 (165+25mm) standard requirements. (Technical Reprot No. 68.189.24.0712.01).
** Actual results or performance may vary depending on the use environment.

5,000m Operational Capability
The LAPA series is designed to function at altitudes of up to 5,000 meters. To support this capability, the original power supply unit (PSU) on the power board was replaced with a new PSU optimized for high-altitude performance.

Specifications

Display
Display diagonal	3.45 m (136")
Display resolution	1920 x 1080 pixels
Display brightness	500 cd/m²
HD type	Full HD
Contrast ratio (typical)	3000:1
Viewing angle, horizontal	150°
Viewing angle, vertical	150°
Pixel pitch	1.56 x 1.56 mm
Display technology	LED
High Dynamic Range (HDR) technology	High Dynamic Range 10 (HDR10), High Dynamic Range 10 Pro (HDR10 Pro)
High Dynamic Range (HDR) supported	Yes
Ports & interfaces
USB connector type	USB Type-A
Remote (IR) input	1
Ethernet LAN	Yes
HDMI ports quantity	3
USB port	Yes
DVI port	No
Ethernet LAN (RJ-45) ports	1
Wi-Fi	Yes
USB version	2.0
USB ports quantity	1
RS-232C	Yes
DisplayPorts quantity	1
Digital audio optical out	1
Audio
Number of built-in speakers	2
RMS rated power	18 W
Built-in speaker(s)	Yes
Design
Product design	Digital signage flat panel
Product colour	Black
Placement supported	Indoor
Certification	CE,FCC,ETL,CB,CE-RED EMC Class A BS476: Part7 Class 1 EN13501-1 (Class C-s2,d0) (TBD)
VESA mounting	Yes
Screen shape	Flat
Bezel colour	Black
Performance
Purpose	Universal
International Protection (IP) code	IP30
HDCP version	2.2
Wi-Fi	Yes
Power
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	1300 W
Computer system
Computer system	Yes
Computer system type	System on Chip (SoC)
Processor cores	8
Operating system installed	WebOS
Built-in processor	Yes
Weight & dimensions
Display width	3005 mm
Display depth	29.9 mm
Display height	1692.5 mm
Display weight	108.5 kg
Packaging content
Remote control included	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Certificates
Certification	CE,FCC,ETL,CB,CE-RED EMC Class A BS476: Part7 Class 1 EN13501-1 (Class C-s2,d0) (TBD)
Technical details
VESA mounting	Yes
USB connector type	USB Type-A
Compliance certificates	REACH, RoHS
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Thin Client
Operating system installed	WebOS
Packaging data
Remote control included	Yes
Other features
USB connector type	USB Type-A
Wi-Fi	Yes
Power consumption (max)	1300 W
Display technology	LED
Digital audio optical out	1
