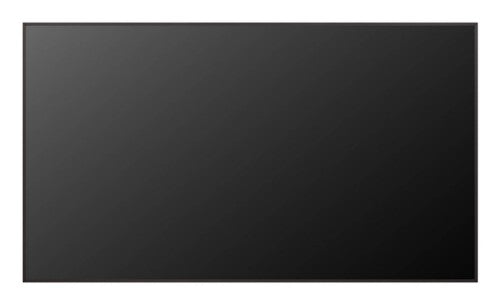

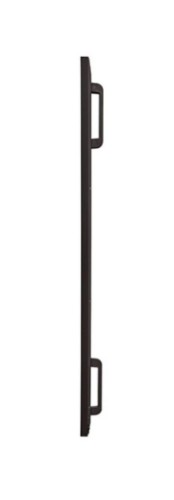

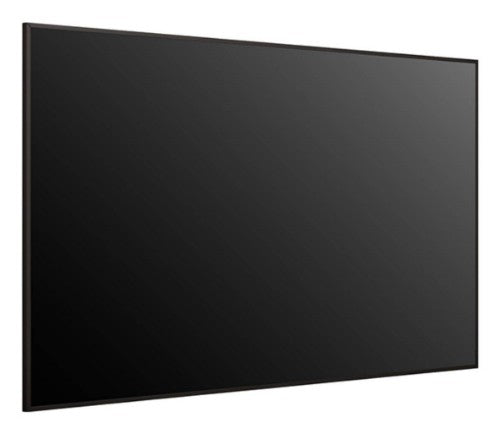

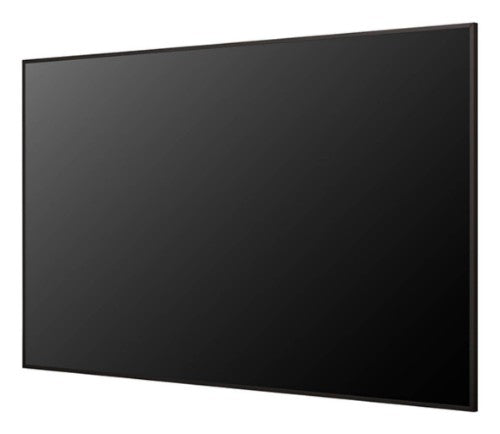

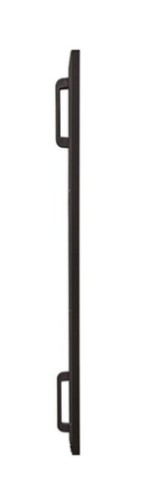

LG 86UH5Q-E Signage Display Digital signage flat panel 2.18 m (86") Wi-Fi 700 cd/m² 4K Ultra HD Black WebOS 24/7

86", 3840 × 2160 (UHD), 16:9, 500 nits, HDMI, RJ45, RS232C, USB, Wi-Fi, Internal Memory 16GB, webOS 8.0, IP5X

Key Features

• Resolution : 3,840 × 2,160 (UHD)
• Brightness : 500 nits (Typ.)
• Bezel Width : 13.4 mm (Even)
• webOS Smart Platform
• LG Shield

Description

Superb Picture Quality with Ultra HD Resolution
With the resolution of UHD, it makes the colors and details of the content vivid and realistic. In addition, the wide viewing angle provides clear content.

Convenient webOS Platform
The UH5Q is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, and includes webOS partner apps to create an SI-friendly environment.

Durability that Provides Reliability
Optimized for business environments, the UH5Q is protected against salt, dust, iron powder and humidity thanks to conformal partial coating on power board, allowing for stable operation. Also, its customer-centric features, such as IP5x and Shock Monitoring*, provide both reliability and satisfaction.

Comprehensive Security
webOS Signage goes beyond security measures at the operating system (OS) level. LG Shield employs a five-tiered defense system, encompassing server, application, operating system, system, and hardware. Each layer operates independently, providing comprehensive protection against various threats. Also, the webOS platform supports ETSI EN 303 645.

SuperSign Solutions
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.

Specifications

Display
LED backlight	Yes
Display number of colours	1.07 billion colours
Display diagonal	2.18 m (86")
Display resolution	3840 x 2160 pixels
Display brightness	700 cd/m²
HD type	4K Ultra HD
Response time	8 ms
Contrast ratio (typical)	1200:1
Contrast ratio (dynamic)	1000000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Touchscreen	No
Panel type	ADS
Native aspect ratio	16:9
LED backlighting type	Edge-LED
Rated lifetime	50000 h
Native refresh rate	60 Hz
Haze rate	25%
Ports & interfaces
USB connector type	Mini-USB A
Remote (IR) input	1
Ethernet LAN	Yes
HDMI ports quantity	3
USB port	Yes
HDMI version	2.2/1.4
Ethernet LAN (RJ-45) ports	1
Wi-Fi	Yes
USB version	2.0
USB ports quantity	2
RS-232C	Yes
DisplayPorts quantity	1
HDMI input ports quantity	3
Audio
Number of built-in speakers	2
RMS rated power	20 W
Built-in speaker(s)	Yes
Design
Product design	Digital signage flat panel
Product colour	Black
Placement supported	Indoor/outdoor
Orientation	Horizontal/Vertical
Panel mounting interface	600 x 400 mm
VESA mounting	Yes
Screen shape	Flat
Wall mountable	Yes
Performance
Purpose	Commercial
Operating hours (hours/days)	24/7
International Protection (IP) code	IP5X
On Screen Display (OSD) languages	English, French, German, Spanish, Italian, Korean, Simplified Chinese, Traditional Chinese, Portuguese, Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Dutch, Czech, Greek, Turkish, Arabic
On Screen Display (OSD)	Yes
HDCP	Yes
webRTC support	Yes
Screen sharing	Yes
Wi-Fi	Yes
Power
Power consumption (typical)	205 W
AC input voltage	100-240 V
AC input frequency	50/60 Hz
Power consumption (off)	0.5 W
Power consumption (max)	297 W
Heat generation (typical)	699 BTU/h
Heat generation (max)	1013 BTU/h
Computer system
Operating system installed	WebOS
Internal memory	16 GB
Operating system version	8.0
Weight & dimensions
Display width	1928.8 mm
Display depth	29.7 mm
Display height	1099.8 mm
Display weight	53 kg
Packaging data
Package width	2100 mm
Package depth	253 mm
Package height	1250 mm
Package weight	66.7 kg
Remote control included	Yes
Cables included	Power
Packaging content
Remote control included	Yes
Cables included	Power
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80%
Technical details
VESA mounting	Yes
USB connector type	Mini-USB A
Panel type	ADS
LED backlighting type	Edge-LED
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Thin Client
Operating system installed	WebOS
Internal memory	16 GB
Sensors
Gyroscope	Yes
Temperature sensor	Yes
Features
Wall mountable	Yes
Other features
USB connector type	Mini-USB A
Wi-Fi	Yes
Power consumption (max)	297 W
Panel type	ADS
