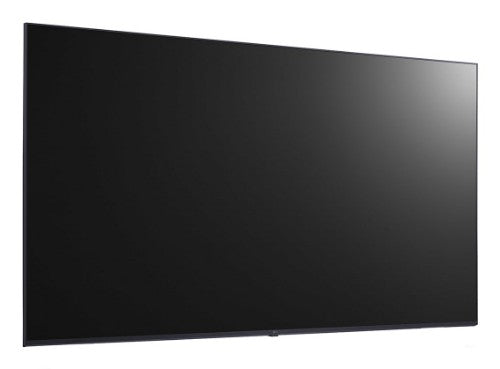

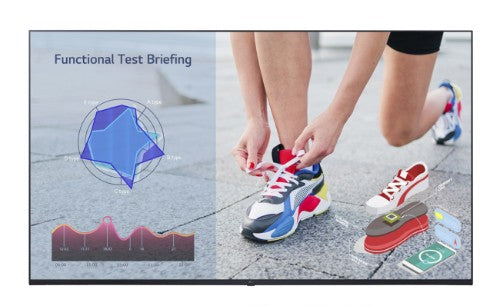

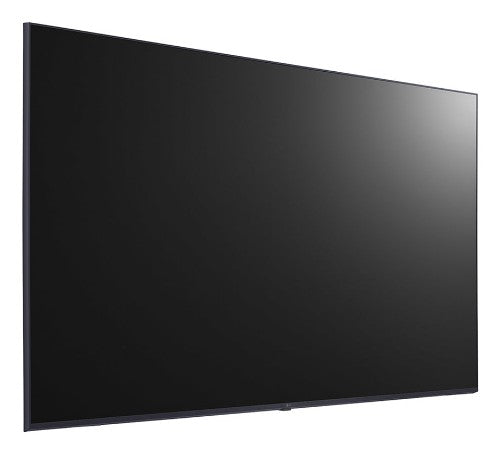

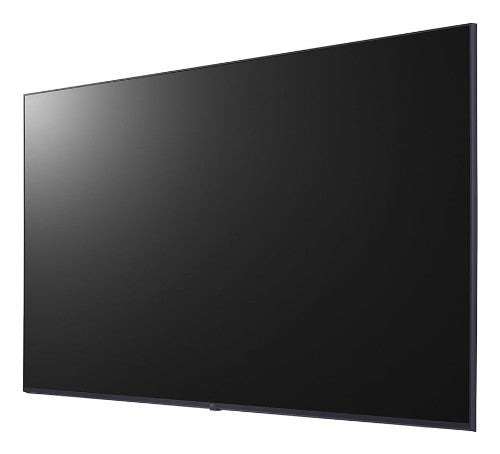

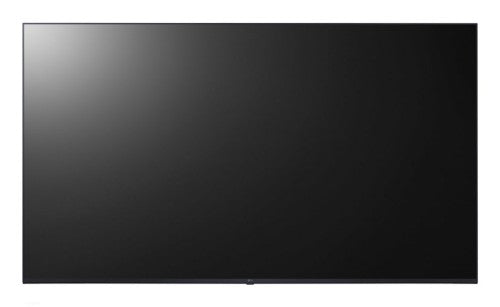

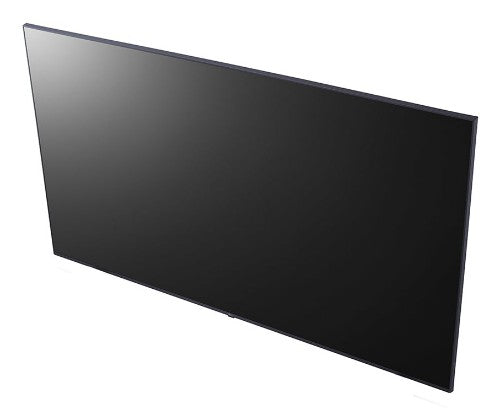

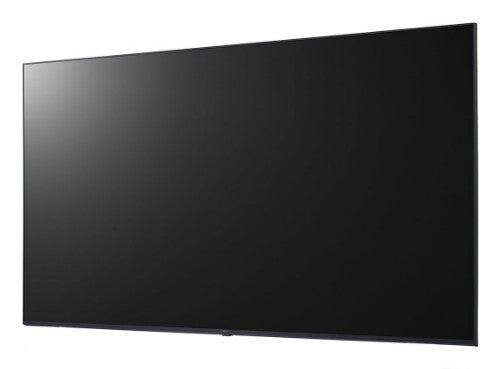

LG 55UL3J-N Signage Display Digital signage flat panel 139.7 cm (55") LED Wi-Fi 400 cd/m² 4K Ultra HD Black WebOS 16/7

55'' UHD (3840 x 2160), 16:9, ADS 400nit, 6ms, 60Hz, Wi-Fi, webOS 6.0

Key Features

• Brightness(Typ.) : 400 nits
• Resolution : ULTRA HD (3,840 x 2,160)
• webOS-based High Performance
• Built-in Speaker
• Compatible with LG's One:Quick Share
• Compatible with AV Control Systems

Description

Superb Picture Quality with Ultra HD Resolution
With the resolution of UHD, it makes the color and details of the contents vivid and realistic. In addition, the wide viewing angle provides clear contents.

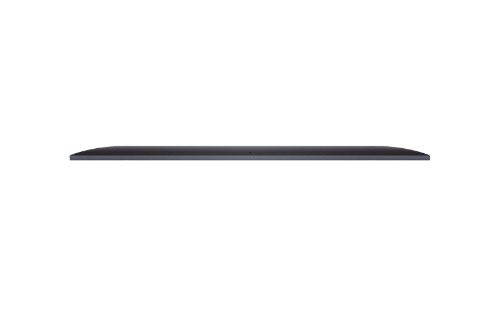

Sophisticated Slim Design
This series is thin in bezel size and thickness*, which saves space and enables easy installation. In addition, it increases the immersive experience from the screen and provides a sophisticated design, improving the décor of the space where the product is installed.

High-Performance with LG webOS 6.0
LG webOS 6.0, upgraded in SoC* and web engine, is available on UL3J series for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI.**

* SoC : System On Chip
** GUI : Graphical User Interface

Various Sensor Connection
LG webOS smart signage platform helps to easily provide value-added solutions* by supporting simple connections with external sensors** such as GPIO, NFC/RFID, temperature sensors, etc., via USB plug-in.

* e.g. showing specific promotional information according to weather change to store visitors
** External sensors need to be purchased separately and tested for compatibility with webOS platform.

LG’s Wireless Screen Sharing Solution, LG One:Quick Share
LG One:Quick Share is a wireless screen sharing solution available through the UL3J series, USB transmission unit, and its app. You can simply share personal PC screen to the display with it's USB dongle button and embedded Wi-Fi*, and can adjust the basic setting values (volume, picture mode, auto bright, etc.) of the connected display without a remote control. Also, the Office Meeting Mode** helps you to display the agenda, note before the meeting starts.

* Users need to set up Soft AP enabled at Network Menu of the Signage.
** Users can enable Office Meeting Mode at EZ Setting Menu of the Signage.
*** LG One:Quick Share needs to be purchased separately.

Remote Monitoring and Control
This web-based monitoring solution is user-friendly and allows the user to be at ease. It enables the user to have full access anywhere at anytime from their mobile phone & PC under network-accessible environment while having access to both current and past data. It allows the user to monitor the unit, make adjustments and control the unit remotely in real time.

Compatible with AV Control Systems
The UL3J series supports Crestron Connected®* for high compatibility with professional AV controls to achieve seamless integration and automated control**, boosting business management efficiency.

* Initial setting from display is required for Crestron Connected® compatibility.
** Network based control

Compatible with Video Conference System
For effective visual meeting, the UL3J series supports its compatibility with Cisco solutions that offers powerful and integrated control* for a smarter video conference.

* Using an HDMI cable connection (HDMI cable is optional)

Easy Content Distribution & SW Update
UL3J series features embedded Wi-Fi making it easy to distribute content wirelessly and update Firmware under the same network.

Wireless Access Point
UL3J series operates as a virtual router which can be an wireless access point for mobile devices.

Built-in Speaker
Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.

Real-Time LG ConnectedCare Service
Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.

* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately.
So please contact the LG sales representative in your region for more details.

Specifications

Display
LED backlight	Yes
Display number of colours	1.07 billion colours
Display diagonal	139.7 cm (55")
Display resolution	3840 x 2160 pixels
Display brightness	400 cd/m²
HD type	4K Ultra HD
Response time	8 ms
Contrast ratio (typical)	1200:1
Contrast ratio (dynamic)	1000000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Panel life	30000 h
Touchscreen	No
Panel type	ADS
Native aspect ratio	16:9
LED backlighting type	Direct-LED
Display technology	LED
Colour gamut	80%
Colour depth	8 bit
Native refresh rate	60 Hz
Haze rate	1%
RGB colour space	DCI-P3
Ports & interfaces
Ethernet LAN	Yes
HDMI ports quantity	3
USB port	Yes
HDMI version	2.2/1.4
Ethernet LAN (RJ-45) ports	1
Wi-Fi	Yes
USB version	2.0
USB ports quantity	2
RS-232C	Yes
DisplayPorts quantity	0
Audio
Number of built-in speakers	2
RMS rated power	20 W
Built-in speaker(s)	Yes
Design
Product design	Digital signage flat panel
Product colour	Black
Placement supported	Indoor
Orientation	Horizontal
Panel mounting interface	300 x 300 mm
VESA mounting	Yes
Screen shape	Flat
Bezel colour	Ashed Blue
Performance
Purpose	Commercial
Operating hours (hours/days)	16/7
On Screen Display (OSD)	Yes
HDCP	Yes
Ambient light sensor	Yes
HDCP version	1.4/2.2
Panel life	30000 h
Wi-Fi	Yes
Power
Heat dissipation	358 BTU/h
Power consumption (typical)	105 W
Power consumption (standby)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (off)	0.5 W
Power consumption (max)	160 W
Energy efficiency scale	A to G
Energy efficiency class (SDR)	G
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	102 kWh
Computer system
Operating system installed	WebOS
Internal memory	16 GB
Operating system version	webOS 6.0
Weight & dimensions
Display width	1235 mm
Display depth	57.5 mm
Display height	715 mm
Display weight	14 kg
Packaging data
Package width	1360 mm
Package depth	162 mm
Package height	810 mm
Package weight	18.8 kg
Remote control included	Yes
Cables included	Power
Batteries included	Yes
Packaging content
Remote control included	Yes
Cables included	Power
Batteries included	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80%
Technical details
VESA mounting	Yes
Power supply type	Internal
Panel type	ADS
LED backlighting type	Direct-LED
Ambient light sensor	Yes
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Thin Client
Operating system installed	WebOS
Internal memory	16 GB
Sensors
Ambient light sensor	Yes
Features
Heat dissipation (max)	546 BTU/h
Other features
Power supply type	Internal
Wi-Fi	Yes
Power consumption (max)	160 W
Panel type	ADS
Display technology	LED
Audio output	1
Energy efficiency scale	A to G
