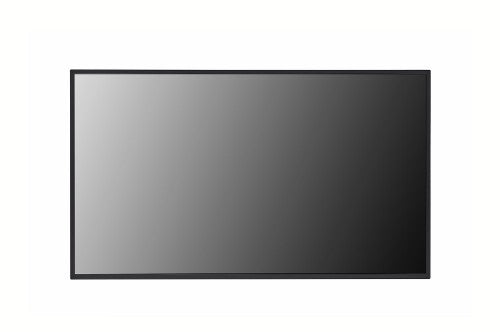

LG 32TNF5P-B Signage Display Interactive flat panel 81.3 cm (32") LED 500 cd/m² Full HD Black Touchscreen WebOS

32", 1920 x 1080, 1000:1, 9ms, IPS, HDMI, RS232C, RJ-45, USB 2.0

Key Features

• Brightness : 500 nit
• Multi Touch Point : 10 Points (Max.)
• Interface : HDMI (2, HDCP 2.2/1.4), RS-232C In, RJ45(LAN), IR In, USB2.0 Type A, Audio Out, Touch USB (USB 2.0 Type B)

Description

New In-Cell Touch Open Frame for Optimal Customization

Slim & Light
The In-Cell Touch Open Frame has a touch function built into the display, allowing for the implementation of a slim design and a narrow bezel compared to general touch products that require additional touch parts (Film).

Clear Picture Quality
Compared to general touch products, TNF5P implements clear picture quality without milk effects caused by additional touch sensor film parts.

Design Flexibility
By providing integrated parts such as touchscreen, display, and webOS, users can realize free design for their own needs.

24hrs / 7days
TNF5P’s excellent durability allows for use in kiosks that require a full day of operation.

Wide Viewing Angle
IPS panel technology provides better control of the liquid crystals, which in turn allows the screen to be viewed at virtually any angle.

45-degree Tilt (Face up) Installation Possible
When a display is installed at low places, it is usually tilted for the user’s viewing comfort. Considering this, the installation with a max tilt of 45 degrees is supported.

10 Points of Multi-Touch
The TNF5P provides a more realistic touch sensation since it can recognize up to 10 points of multi-touch at once, and various touchbased user services can be provided through the screen.

High-Performance with webOS 6.0
webOS 6.0, upgraded in SoC* and web engine, is available on TNF5P for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI** and provides to SI or/and developers simple app development tools such as SDK (Software Development Kit), SCAP, sample applications.

Specifications

Display
LED backlight	Yes
Display number of colours	16.7 million colours
Display diagonal	81.3 cm (32")
Display resolution	1920 x 1080 pixels
Display brightness	500 cd/m²
HD type	Full HD
Response time	9 ms
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Panel life	50000 h
Touchscreen	Yes
Panel type	IPS
Number of simultaneous touchpoints	10
Display technology	LED
Haze rate	25%
Ports & interfaces
Remote (IR) input	1
Ethernet LAN	Yes
HDMI ports quantity	2
USB port	Yes
Audio (L/R) out	1
Ethernet LAN (RJ-45) ports	1
USB version	2.0
USB ports quantity	2
RS-232C	Yes
USB 2.0 Type-B ports quantity	1
Design
Product design	Interactive flat panel
Product colour	Black
Placement supported	Indoor
Orientation	Horizontal/Vertical
Panel mounting interface	200 x 200 mm
Bezel width (top)	1.13 cm
Bezel width (side)	1.13 cm
Bezel width (bottom)	1.13 cm
VESA mounting	Yes
Screen shape	Flat
Performance
HDCP	Yes
HDCP version	1.4
Security algorithms	SNMP
Panel life	50000 h
Power
Heat dissipation	164 BTU/h
Power consumption (typical)	48 W
Power consumption (standby)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	65 W
Computer system
Operating system installed	WebOS
Internal memory	8 GB
Operating system version	6.0
Weight & dimensions
Display width	723 mm
Display depth	39.1 mm
Display height	419.4 mm
Display weight	5.8 kg
Packaging data
Package width	812 mm
Package depth	142 mm
Package height	510 mm
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80%
Technical details
VESA mounting	Yes
Playback modes	Rotation
Temperature indicator	Yes
Panel type	IPS
Number of simultaneous touchpoints	10
Network
Ethernet LAN	Yes
Security algorithms	SNMP
Thin Client
Operating system installed	WebOS
Internal memory	8 GB
Other features
Playback modes	Rotation
Temperature indicator	Yes
Power consumption (max)	65 W
Panel type	IPS
Number of simultaneous touchpoints	10
Display technology	LED
Bezel width (top)	1.13 cm
Bezel width (side)	1.13 cm
Bezel width (bottom)	1.13 cm
