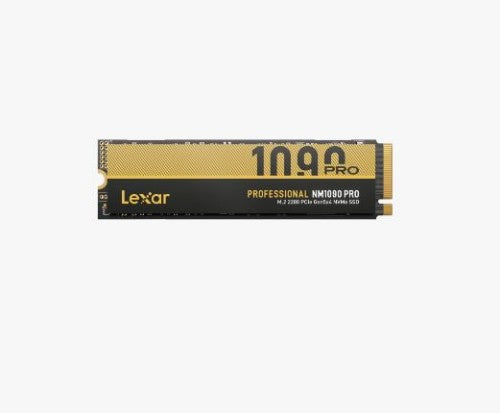

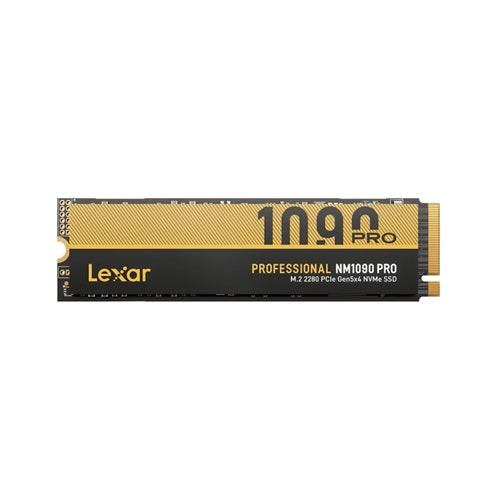

Lexar Professional NM1090 PRO 1 TB M.2 PCI Express 5.0 NVMe 3D TLC NAND

1 TB, M.2, PCIe Gen 5x4, NVMe, 3D TLC NAND flash

Description

Lexar LNMPLYX001T-RNNNG Internal SSD PLAY X PCIe 4.0 1TB,up to 7400MB/s read, 6400MB/s write M.2 2030, M.2 2230, M.2 2280

Capacity
1TB, 2TB, 4TB, 8TB
Form Factor
M.2 2280
Interface
PCIe Gen 5x4
Speed
1TB: Sequential read speed up to 14,000MB/s1, sequential write speed up to 10,000MB/s1, random read up to 1650K IOPs, random write up to 1800K IOPs
2TB: Sequential read speed up to 14,000MB/s1, sequential write speed up to 13,000MB/s1, random read up to 2100K IOPs, random write up to 1800K IOPs
4TB: Sequential read speed up to 14,000MB/s1, sequential write speed up to 13,000MB/s1, random read up to 2100K IOPs, random write up to 1700K IOPs
8TB: Sequential read speed up to 14,400MB/s1, sequential write speed up to 13,400MB/s1, random read up to 2000K IOPs, random write up to 2100K IOPs
Dram Capacity
1TB: 2GB, 2TB: 2GB, 4TB: 4GB, 8TB: 8GB
Operating Temperature
0° to 70° C (32°F to 158°F)
Storage Temperature
-40° to 85° C (-40°F to 185°F)
Shock Resistant
1500G, duration 0.5ms, Half Sine Wave
Vibration Resistant
10~2000Hz, 1.5mm, 20G, 1Oct/min, 30min/axis (X,Y,Z)
TBW
1TB: 700TBW, 2TB: 1400TBW, 4TB: 2800TBW, 8TB: 5600TBW
MTBF
1,500,000 Hours
Dimension (W x L x H)
1TB-2TB: 80 x 22 x 3.6 mm (3.15' x 0.87' x 0.14')
4TB-8TB: 80 x 22 x 3.9 mm (3.15' x 0.87' x 0.15')
Weight
1TB-2TB：8g / 0.017lbs
4TB: 8.5g / 0.019 lbs
8TB: 9.6g / 0.021 lbs
Warranty
Five-year limited warranty

Specifications

Performance
Brand specific technologies	SLC Caching
Interface	PCI Express 5.0
Component for	PC/Laptop
SSD capacity	1 TB
Read speed	14000 MB/s
Write speed	10000 MB/s
NVMe	Yes
Memory type	3D TLC NAND
PCI Express interface data lanes	x4
Random read (4KB)	1650000 IOPS
Random write (4KB)	1800000 IOPS
Hardware encryption	No
Mean time between failures (MTBF)	1500000 h
TBW rating	700
Features
Interface	PCI Express 5.0
Component for	PC/Laptop
SSD capacity	1 TB
Read speed	14000 MB/s
Write speed	10000 MB/s
NVMe	Yes
Memory type	3D TLC NAND
PCI Express interface data lanes	x4
Random read (4KB)	1650000 IOPS
Random write (4KB)	1800000 IOPS
Hardware encryption	No
Mean time between failures (MTBF)	1500000 h
TBW rating	700
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Brand-specific features
Brand specific technologies	SLC Caching
Design
SSD form factor	M.2
Weight & dimensions
Width	80 mm
Depth	22 mm
Height	3.6 mm
Weight	8 g
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating shock	1500 G
Operating vibration	20 G
Technical details
Interface	PCI Express 5.0
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating shock	1500 G
Operating vibration	20 G
SSD form factor	M.2
