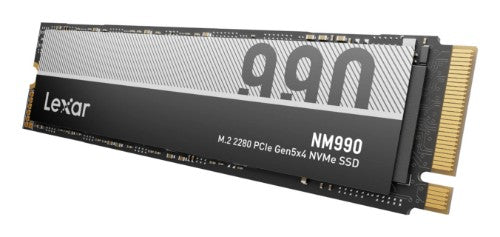

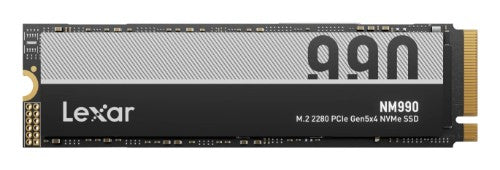

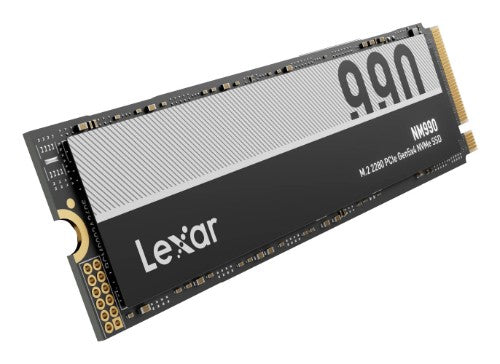

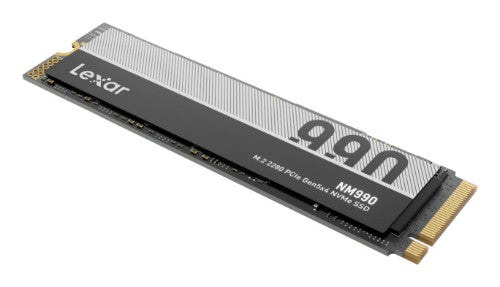

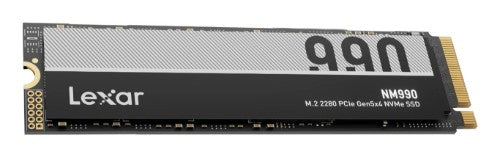

Lexar NM990 1 TB M.2 PCI Express 5.0 NVMe

1 TB, M.2, PCIe Gen 5 x4, NVMe

Description

Lexar LNM990X001T-RNNNG Internal SSD 1TB PCIe G5x4 M.2 2280 up to 14000MB/s read, 7500MB/s write - 5 year limited warranty


Form Factor M.2 2280

Interface PCle Gen5x4

Speed 1TB: Sequential read speed up to 14,000MB/s1, sequential write speed up to 7,500MB/s1, random read up to 1600K IOPs, random write up to 1000K IOPs

Operating Temperature 0° to 70° C (32°F to 158°F)

Storage Temperature - 40° to 85° C (- 40°F to 185°F)

Shock Resistant 1500G, duration 0.5ms, Half Sine Wave

Vibration Resistant 10~2000Hz, 1.5mm, 20G, 1Oct/min, 30min/axis (X,Y,Z)

TBW 1TB: 750TBW

MTBF 1,500,000 Hours

Dimension (W x L x H)

80 x 22 x 2.45 mm / 3.15'x0.87'x0.10'

Specifications

Features
Interface	PCI Express 5.0
Component for	PC/Notebook/Game console
SSD capacity	1 TB
Read speed	14000 MB/s
Write speed	7500 MB/s
NVMe	Yes
PCI Express interface data lanes	x4
Random read (4KB)	1600000 IOPS
Random write (4KB)	1000000 IOPS
Hardware encryption	No
Mean time between failures (MTBF)	1500000 h
TBW rating	750
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Performance
Interface	PCI Express 5.0
Component for	PC/Notebook/Game console
SSD capacity	1 TB
Read speed	14000 MB/s
Write speed	7500 MB/s
NVMe	Yes
PCI Express interface data lanes	x4
Random read (4KB)	1600000 IOPS
Random write (4KB)	1000000 IOPS
Hardware encryption	No
Mean time between failures (MTBF)	1500000 h
TBW rating	750
Design
SSD form factor	M.2
Weight & dimensions
Width	80 mm
Depth	22 mm
Height	2.45 mm
Weight	6 g
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating shock	1500 G
Operating vibration	20 G
Technical details
Interface	PCI Express 5.0
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating shock	1500 G
Operating vibration	20 G
SSD form factor	M.2
