80.0cm (31.5") 4K Ultra HD 3840 x 2160 W-LED IPS, 16:9, 350cd/m², 1.07B, 6ms, 178°/178°, 1500:1
Key Features
- 80.0cm (31.5") 4K Ultra HD 3840 x 2160 W-LED IPS
- 6ms, 16:9, 350cd/m², 1500:1
- USB, HDMI, DisplayPort
Description
LENOVO ThinkVision T32UD-40 31.5'/32' 60Hz UHD IPS Monitor 3840x2160 16:9 4ms Height Adjustable Tilt Pivot Swivel HDMI DP USB-C hub LAN RJ45 VESA 3yr wty
PERFORMANCE
Display Size 31.5'
View Area 697.3x392.2 mm
Panel In-Plane Switching
Backlight WLED
Aspect Ratio 16:09
Resolution 3840x2160
Pixel Pitch 0.1816x0.1816 mm
Dot / Pixel Per Inch 140 dpi
View Angle (H / V) 178 / 178
Response Time 4ms GtG (Extreme mode) / 6ms GtG (Typical mode)
Color Support 1.07 Billion
Refresh Rate 48Hz - 60Hz
Brightness 350 cd/m²
Contrast Ratio 1500:01:00
Color Gamut 99% sRGB, 99% BT.709
Screen Surface Treatment Yes
Curvature None
Camera Modular Camera Support
Microphone None
Speakers Modular Speaker Support
Power Consumption (Typical / Maximum) 25.5W / 195W
Power Adapter Integrated
Touchscreen None
Smart System None
DESIGN
Stand Tilt, Swivel, Pivot, Height Adjust Stand
Case Color Eclipse Black
Side Bezel Width 2 mm
Mounting Supports VESA mount 100 x 100 mm
ThinkCentre M Series Support Tiny Support
Pen None
Dimensions (WxDxH) Lowest Position | 714.2 x 218.0 x 439.3 mm (28.12 x 8.58 x 17.30 inches)
Highest Position | 714.2 x 218.0 x 594.3 mm (28.12 x 8.58 x 23.40 inches)
Head Only | 714.2 x 46.5 x 413.0 mm (28.12 x 1.83 x 16.26 inches)
Packaging Dimensions (WxDxH) 950.0 x 139.0 x 520.0 mm (37.40 x 5.47 x 20.47 inches)
Weight Monitor With Stand | 9.2 kg (20.3 lbs)
Monitor Head Only | 6.3 kg (13.9 lbs)
Packaging Weight 13.5 kg (29.8 lbs)
CONNECTIVITY

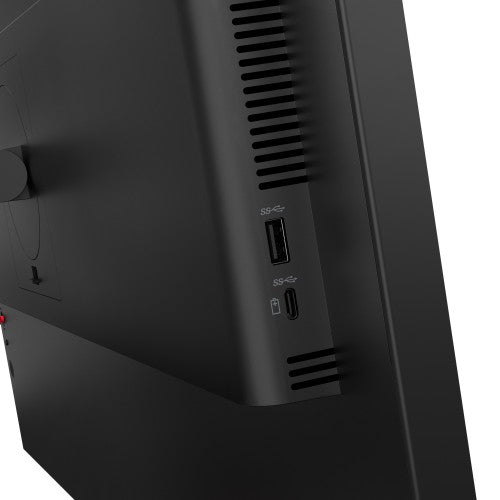

USB Port x USB-C® (USB 10Gbps,DP 1.4 Alt Mode HBR3, PD3.0 100W, USB upstream), 3x USB-A (USB 5Gbps, 1x BC1.2, USB downstream), 1x USB-C (USB 5Gbps, 15WPD, USB downstream)
Video Connector 1x HDMI® 2.1 TMDS, 1x DP 1.4 (HBR3), 1x USB-C® (10Gbps, DP 1.4 Alt Mode HBR3)
Network Connectivity 1x RJ45, Ethernet (10M/100M/1000M)
SERVICE
Base Warranty 3-year
Specifications
| Display |
|---|
| Display brightness (typical) |
350 cd/m² |
| Screen shape |
Flat |
| Display number of colours |
1.07 billion colours |
| Native aspect ratio |
16:9 |
| Maximum refresh rate |
60 Hz |
| sRGB coverage (typical) |
99% |
| Display diagonal |
80 cm (31.5") |
| Response time |
6 ms |
| Display resolution |
3840 x 2160 pixels |
| Display technology |
LCD |
| Contrast ratio (typical) |
1500:1 |
| Contrast ratio (dynamic) |
3000000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Pixel pitch |
0.1816 x 0.1816 mm |
| Viewable size, horizontal |
69.7 cm |
| Viewable size, vertical |
39.2 cm |
| HD type |
4K Ultra HD |
| Pixel density |
140 ppi |
| Colour gamut |
99% |
| Backlight type |
W-LED |
| Response time (fast) |
4 ms |
| Touchscreen |
No |
| High Dynamic Range (HDR) supported |
Yes |
| Panel type |
IPS |
| Colour depth |
10 bit |
| High Dynamic Range (HDR) technology |
High Dynamic Range 10 (HDR10) |
| LED backlight |
Yes |
| Colour gamut standard |
Rec. 709 |
| Anti-glare screen |
Yes |
| Network |
|---|
| Ethernet LAN data rates |
1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN |
Yes |
| Performance |
|---|
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
No |
| Windows operating systems supported |
Windows 10, Windows 11 |
| Low Blue Light technology |
Yes |
| Multimedia |
|---|
| Built-in speaker(s) |
No |
| Built-in camera |
No |
| Power |
|---|
| Power cable length |
1.8 m |
| Power supply type |
Internal |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power consumption (max) |
195 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
25.5 W |
| Power consumption (off) |
0.3 W |
| Energy efficiency scale |
A to G |
| Energy efficiency class (SDR) |
F |
| Energy efficiency class (HDR) |
G |
| Energy consumption (SDR) per 1000 hours |
30 kWh |
| Energy consumption (HDR) per 1000 hours |
45 kWh |
| Design |
|---|
| Product colour |
Black |
| Feet colour |
Black |
| Certification |
Energy Star Certified, TCO 10.0, TCO Edge 2.1, EPEAT Gold, EU Energy Efficiency Level (Level-F)
TÜV Rheinland Eye Comfort 4 Stars, Eyesafe Display 2.0, TÜV Low Blue Light (Hardware solution) |
| Colour name |
Eclipse Black |
| Ports & interfaces |
|---|
| Built-in USB hub |
Yes |
| USB upstream port type |
USB Type-C |
| Number of upstream ports |
1 |
| USB Type-A downstream ports quantity |
3 |
| USB Type-C downstream ports quantity |
1 |
| HDMI ports quantity |
1 |
| DisplayPorts quantity |
1 |
| Headphone out |
No |
| HDMI |
Yes |
| HDMI version |
2.1 |
| DisplayPort version |
1.4 |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery up to |
100 W |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Number of USB Type-C upstream ports quantity |
1 |
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Ergonomics |
|---|
| VESA mounting |
Yes |
| Cable lock slot |
Yes |
| Panel mounting interface |
100 x 100 mm |
| Swivelling |
Yes |
| Swivel angle range |
-45 - 45° |
| Tilt angle range |
-5 - 23.5° |
| Height adjustment |
Yes |
| Pivot angle |
-90 - 90° |
| Pivot |
Yes |
| Cable lock slot type |
Kensington |
| Tilt adjustment |
Yes |
| Adjustable height (max) |
15.5 cm |
| Weight & dimensions |
|---|
| Width (with stand) |
714.2 mm |
| Depth (with stand) |
218 mm |
| Height (with stand) |
594.3 mm |
| Bezel width (side) |
2 mm |
| Bezel width (top) |
2 mm |
| Bezel width (bottom) |
1.14 cm |
| Width (without stand) |
714.2 mm |
| Height (without stand) |
413 mm |
| Depth (without stand) |
46.5 mm |
| Weight (with stand) |
9.2 kg |
| Weight (without stand) |
6.3 kg |
| Package width |
950 mm |
| Package depth |
139 mm |
| Package height |
520 mm |
| Package weight |
13.5 kg |
| Packaging data |
|---|
| Package width |
950 mm |
| Package depth |
139 mm |
| Package height |
520 mm |
| Package weight |
13.5 kg |
| Stand included |
Yes |
| Power cable length |
1.8 m |
| Quick start guide |
Yes |
| Cables included |
DisplayPort, Power, USB Type-C to USB Type-C |
| DisplayPort cable length |
1.8 m |
| Packaging content |
|---|
| Stand included |
Yes |
| Power cable length |
1.8 m |
| Quick start guide |
Yes |
| Cables included |
DisplayPort, Power, USB Type-C to USB Type-C |
| DisplayPort cable length |
1.8 m |
| Other features |
|---|
| Certification |
Energy Star Certified, TCO 10.0, TCO Edge 2.1, EPEAT Gold, EU Energy Efficiency Level (Level-F)
TÜV Rheinland Eye Comfort 4 Stars, Eyesafe Display 2.0, TÜV Low Blue Light (Hardware solution) |
| Ethernet LAN data rates |
1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Power consumption (max) |
195 W |
| Width (without stand) |
714.2 mm |
| Quick start guide |
Yes |
| Height (without stand) |
413 mm |
| HDMI |
Yes |
| Depth (without stand) |
46.5 mm |
| USB Power Delivery up to |
100 W |
| Energy efficiency scale |
A to G |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Power supply type |
Internal |
| Power cable length |
1.8 m |
| Ethernet LAN |
Yes |
| Touchscreen |
No |
| USB Power Delivery (USB PD) |
Yes |
| Certificates |
|---|
| Certification |
Energy Star Certified, TCO 10.0, TCO Edge 2.1, EPEAT Gold, EU Energy Efficiency Level (Level-F)
TÜV Rheinland Eye Comfort 4 Stars, Eyesafe Display 2.0, TÜV Low Blue Light (Hardware solution) |
| Technical details |
|---|
| Power supply type |
Internal |
| Weight (with stand) |
9.2 kg |
| Touchscreen |
No |
