Intel Core Ultra 5 135H, 14C (4P + 8E + 2LPE), 2x 8GB SO-DIMM DDR5-5600, 256GB SSD M.2 2280 PCIe 4.0, 10.1" Touch Controller, Intel Arc Graphics, Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3, Windows 11 IoT Enterprise for Collaboration GAC 64
Description

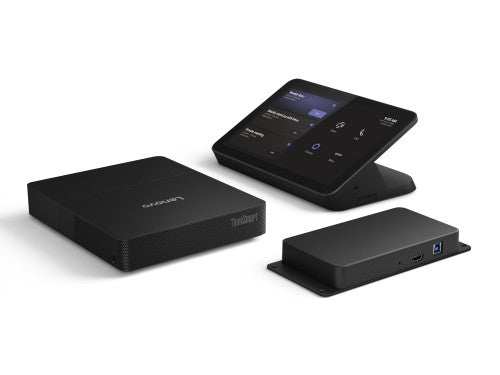

ThinkSmart Core + Lenovo IP Controller (MTR) - kit includes ThinkSmart Core w/Intel Ultra 5 135H vPro Intel Arc graphics and ThinkSmart IP Controller with 10.1-inch touch HD display - 3YPS
Specifications
| Performance |
|---|
| Product colour |
Black |
| Bluetooth |
Yes |
| Bluetooth version |
5.3 |
| Technical details |
|---|
| Product colour |
Black |
| Bluetooth |
Yes |
| Bluetooth version |
5.3 |
| Memory |
|---|
| Internal memory |
16384 MB |
| Internal memory type |
DDR5 |
| Storage media type |
SSD |
| Total storage capacity |
256 GB |
| Memory card slot(s) |
No |
| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| USB connector type |
USB Type-A, USB Type-C |
| DC-in jack |
Yes |
| HDMI ports quantity |
3 |
| USB 2.0 ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI output ports quantity |
2 |
| HDMI input ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| HDMI version |
2.1 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
100,1000 Mbit/s |
| Wi-Fi |
Yes |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| Display |
|---|
| Display diagonal |
25.6 cm (10.1") |
| Display resolution |
1280 x 800 pixels |
| Touchscreen |
Yes |
| Contrast ratio (typical) |
16:10 |
| Display brightness |
340 cd/m² |
| Anti-glare screen |
Yes |
| Features |
|---|
| Trusted Platform Module (TPM) version |
2.0 |
| Trusted Platform Module (TPM) |
Yes |
| Computer system |
|---|
| Computer system type |
Mini PC |
| Operating system installed |
Windows 11 IoT Enterprise GAC |
| Windows operating systems supported |
Yes |
| Computer case |
|---|
| Computer system type |
Mini PC |
| Operating system installed |
Windows 11 IoT Enterprise GAC |
| Power |
|---|
| Power consumption (max) |
170 W |
| Power source type |
AC |
| Weight & dimensions |
|---|
| Width |
185 mm |
| Depth |
140 mm |
| Height |
38 mm |
| Weight |
860 g |
| Packaging content |
|---|
| Packaging content |
External Adapter Cage + Removable Cable Management Box + Lenovo BYOM Cable for ThinkSmart Core Gen 2 - USB-C to USB-C 3m + VESA Mount Bracket |
