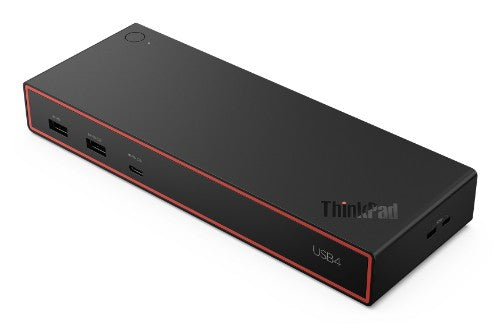

ThinkPad USB4 Dock 5000
Description

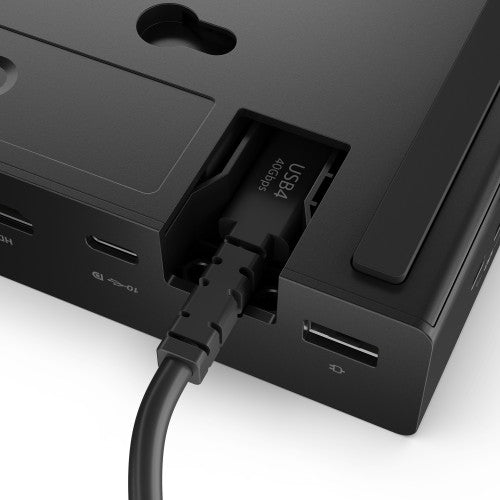

Designed to enhance everyday productivity, the Lenovo™ ThinkPad® USB4 Dock 5000 is the Successor of our famous Universal USB-C Dock equipped with cutting edge USB4 Technology, The dock can connect to your laptop with 40Gbps bandwidth USB4 upstream connectivity, that allows you to extend your monitor setup with more pixels and higher refresh rates. It can output 65W charge power to your laptop with 100W power adapter, or you can choose a 135W power adapter to boost the charge power up to 100W to you laptop.
Specifications
| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| Connectivity technology |
Wired |
| USB 2.0 ports quantity |
0 |
| Host interface |
Thunderbolt 4 |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
1 |
| HDMI version |
2.1 |
| DisplayPorts quantity |
2 |
| Microphone in |
No |
| Headphone outputs |
0 |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery revision |
3.1 |
| USB Power Delivery up to |
100 W |
| DisplayPort version |
1.4 |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Performance |
|---|
| Maximum digital resolution |
3840 x 2160 pixels |
| Number of displays supported |
4 |
| Product colour |
Black |
| Card reader integrated |
No |
| Cable lock slot |
Yes |
| Certification |
FCC/ICES
CE
KCC
RCM
BSMI
VCCI
CB
cULus
EAC
TUV- Mark
LoA
Ukraine DoC
NOM |
| Cable lock slot type |
Kensington |
| Colour name |
Eclipse Black |
| Storage |
|---|
| Card reader integrated |
No |
| Power |
|---|
| Power source type |
DC |
| Software |
|---|
| Windows operating systems supported |
Windows 11 |
| Mac operating systems supported |
Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
20 - 95% |
| Weight & dimensions |
|---|
| Width |
218 mm |
| Depth |
80 mm |
| Height |
31.5 mm |
| Weight |
470 g |
| Package width |
240 mm |
| Package depth |
145 mm |
| Package height |
77 mm |
| Package weight |
1.03 kg |
| Design |
|---|
| Windows operating systems supported |
Windows 11 |
| Mac operating systems supported |
Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia |
| Product colour |
Black |
| Cable lock slot |
Yes |
| Certification |
FCC/ICES
CE
KCC
RCM
BSMI
VCCI
CB
cULus
EAC
TUV- Mark
LoA
Ukraine DoC
NOM |
| Cable lock slot type |
Kensington |
| Packaging data |
|---|
| Package width |
240 mm |
| Package depth |
145 mm |
| Package height |
77 mm |
| Package weight |
1.03 kg |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Cables included |
AC, USB |
| AC adapter included |
Yes |
| Warranty card |
Yes |
