Thunderbolt 4, 8K, 40Gbps
Description

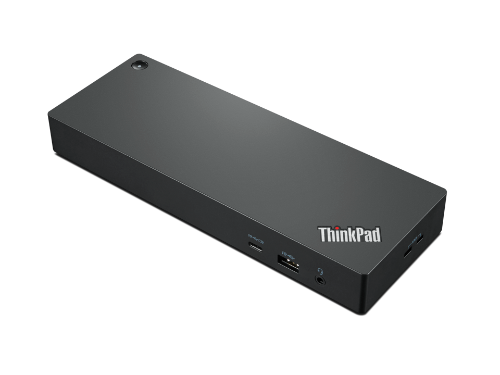

Enterprise-Grade Universal Thunderbolt™ 4 Docking Experience: ThinkPad Universal Thunderbolt 4 Dock delivers reliable and consistent industry leading video, data and power connectivity in a Windows based mixed-PC environment. Maximize Your Productivity: Expand your horizon with versatile 8K display support or multiple 4K displays support, silent firmware upgrades, VPro/AMT support and transfer data at lightning fast 40Gbps. The ThinkPad Universal Thunderbolt 4 is future-proof and fully loaded to take your productivity, efficiency and creativity to the peak.
The ThinkPad Universal Thunderbolt™ 4 Dock supports upto 100W PD, Single 8K@30Hz or upto 4 4K@60HZ display support, silent firmware upgrades, vPro/AMT Pass through support, and data transfer rates upto 40 Gbps (depending on host system and peripheral processing capability, file attributes, and other configuration and operating environment factors)
Specifications
| Ports & interfaces |
|---|
| Combo headphone/mic port |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| Connectivity technology |
Wired |
| Host interface |
Thunderbolt 4 |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
1 |
| HDMI version |
2.1 |
| DisplayPorts quantity |
2 |
| Headphone connectivity |
3.5 mm |
| DC-in jack |
Yes |
| DisplayPort version |
1.4 |
| Thunderbolt 4 ports quantity |
1 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Performance |
|---|
| Product colour |
Black |
| Certification |
cULus, FCC, ICES, NOM |
| Power |
|---|
| Power source type |
DC |
| Input current |
6.75 A |
| Power consumption (max) |
100 W |
| Power supply |
135 W |
| Software |
|---|
| Windows operating systems supported |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
|---|
| Width |
220 mm |
| Depth |
80 mm |
| Height |
30 mm |
| Weight |
450 g |
| Package width |
270 mm |
| Package depth |
195 mm |
| Package height |
85 mm |
| Package weight |
1.2 kg |
| Design |
|---|
| Windows operating systems supported |
Yes |
| Product colour |
Black |
| Certification |
cULus, FCC, ICES, NOM |
| Packaging data |
|---|
| Package width |
270 mm |
| Package depth |
195 mm |
| Package height |
85 mm |
| Package weight |
1.2 kg |

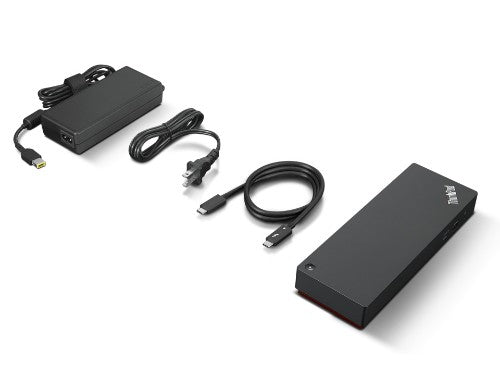

| Packaging content |
|---|
| AC adapter included |
Yes |
