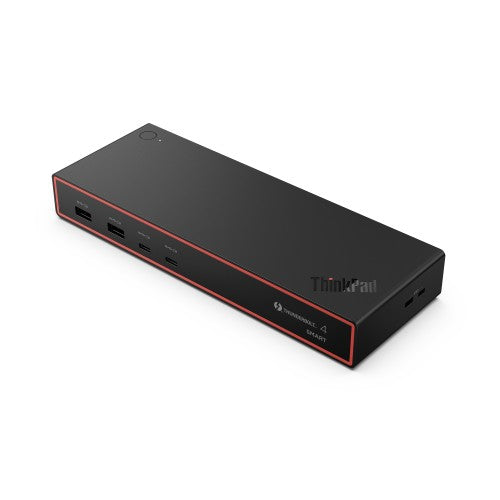

ThinkPad Thunderbolt 4 Smart Dock Gen2 7500 - ANZ/Fiji/PNG/NZ
Key Features
- The ThinkPad® Thunderbolt™ 4 Smart Dock 7500 with up to 40 Gbps bandwidth, you can have one Ultra-High Resolution 8K 60Hz Displays or two 4K 144Hz High Refresh Rate monitors setup, to fully extend your laptop to a powerful work platform with all different kinds of Peripheral Devices. It supports PD 3.1 and output up to 100W to give a fast-charge to your laptop, you can drastically expand the potential of your workspace with ease
- Universal Dock Compatibility a cross different Operating System
- With Lenovo™ Accessories Fleet Manager (LAFM), the New Gen Cloud-Based Intelligent Manageability runs on Web Browser, can let IT manager to Manage, Update, Configure and Diagnostic their dock fleet in a Flexible, Efficient and Convenient way at anytime, anywhere with ease
Description
New Generation ThinkPad® Thunderbolt™ 4 Smart Dock; The ThinkPad® Thunderbolt™ 4 Smart Dock Gen 2 7500 is a refresh of its Thunderbolt™ 4 Smart Dock Predecessor, Best for business professionals, IT decision-makers, and creative professionals who need Premium PC experience with multiple displays setup, secure and reliable connections for intensive tasks. Capable of driving up to 8K 60Hz display and 40Gbps data speed, and new generation cloud-based management console powered by AWS for IT managers.
Specifications
| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| Connectivity technology |
Wired |
| USB 2.0 ports quantity |
0 |
| Host interface |
Thunderbolt 4 |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
1 |
| HDMI version |
2.1 |
| DisplayPorts quantity |
2 |
| Thunderbolt ports quantity |
2 |
| Microphone in |
No |
| Headphone outputs |
0 |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery revision |
3.1 |
| USB Power Delivery up to |
100 W |
| DisplayPort version |
1.4 |
| Thunderbolt 4 ports quantity |
2 |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
2500 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Performance |
|---|
| Maximum digital resolution |
7680 x 4320 pixels |
| Number of displays supported |
4 |
| Product colour |
Black |
| On/off switch |
Yes |
| Card reader integrated |
No |
| Cable lock slot |
Yes |
| LED indicators |
Yes |
| Certification |
FCC/ICES
CE
KCC
RCM
BSMI
NCC
VCCI
CB
cULus
EAC
TUV-Mark
LoA
Ukraine DoC
NOM
IFT
TELEC
UKCA
FAC DoC
VNTA
WPC ETA
SRRC
SDPPI
IMDA
SIRIM
NBTC
SUBTEL
KVALITET/RATEL
MCIT
ANRT
UCC
INACOM
CITRA
TRA
NTC
PSRC
NCA
ARTCI
INCM
Thunderbolt Cert.
EVO |
| Cable lock slot type |
Kensington, MicroSaver |
| Colour name |
Eclipse Black |
| Maximum refresh rate |
144 Hz |
| Storage |
|---|
| Card reader integrated |
No |
| Power |
|---|
| Power source type |
DC |
| Software |
|---|
| Windows operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
20 - 95% |
| Weight & dimensions |
|---|
| Width |
220 mm |
| Depth |
80 mm |
| Height |
30 mm |
| Weight |
547.5 g |
| Package width |
237.8 mm |
| Package depth |
141 mm |
| Package height |
75.8 mm |
| Package weight |
1.26 kg |
| Design |
|---|
| Windows operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Product colour |
Black |
| Cable lock slot |
Yes |
| LED indicators |
Yes |
| Certification |
FCC/ICES
CE
KCC
RCM
BSMI
NCC
VCCI
CB
cULus
EAC
TUV-Mark
LoA
Ukraine DoC
NOM
IFT
TELEC
UKCA
FAC DoC
VNTA
WPC ETA
SRRC
SDPPI
IMDA
SIRIM
NBTC
SUBTEL
KVALITET/RATEL
MCIT
ANRT
UCC
INACOM
CITRA
TRA
NTC
PSRC
NCA
ARTCI
INCM
Thunderbolt Cert.
EVO |
| Cable lock slot type |
Kensington, MicroSaver |
| Packaging data |
|---|
| Package width |
237.8 mm |
| Package depth |
141 mm |
| Package height |
75.8 mm |
| Package weight |
1.26 kg |
