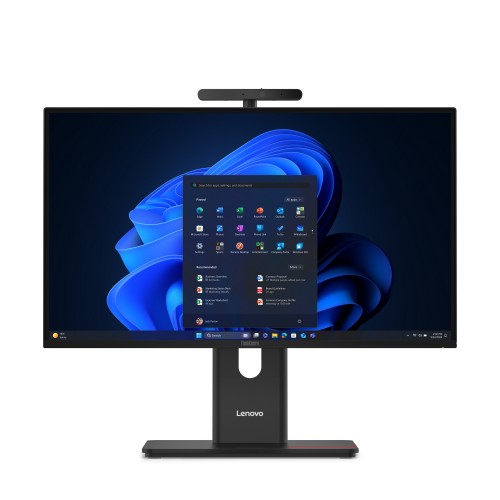

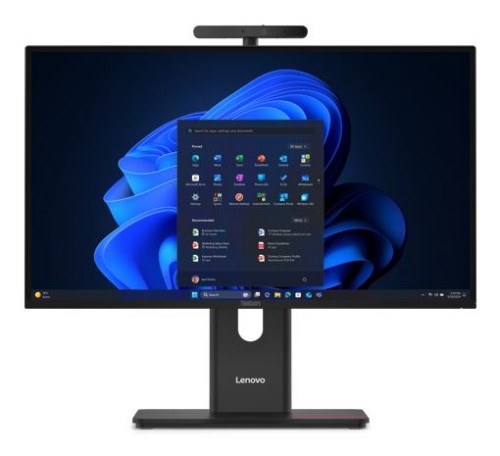

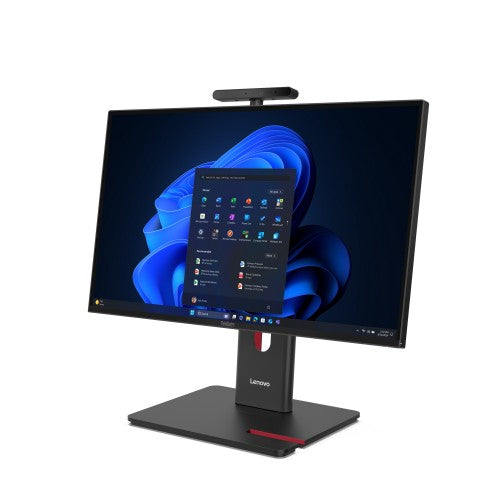

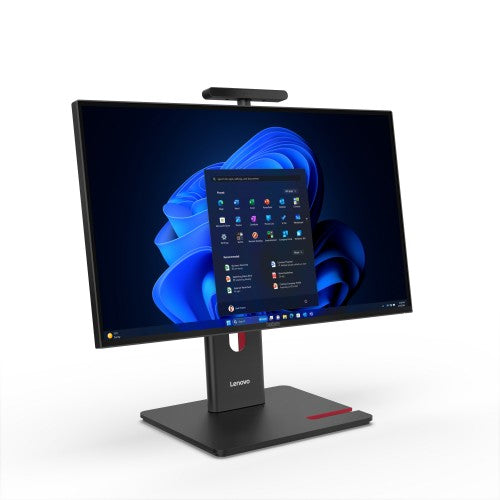

Lenovo ThinkCentre M90a Gen 6 Intel Core Ultra 5 235 60.5 cm (23.8") 1920 x 1080 pixels Touchscreen All-in-One PC 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Wi-Fi 7 (802.11be) Black
Your price
$2,256.00
List price
GST included · AUD
In stock — ready to ship
Estimate shipping
Enter an Australian postcode for a quick estimate.
Final shipping options and price are confirmed at checkout.
- Local Australian stock
- Australian manufacturer warranty
- GST included
- Secure checkout
Need bulk pricing for schools or councils? Request a quote via Contact Us.
Intel Core Ultra 5 235, 14C (6P + 8E)/14T, Max Turbo up to 5.0GHz, 24MB Intel Smart Cache, 2x 8GB SODIMM DDR5-5600, 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0, 23.8" FHD (1920x1080) IPS 250nits 120Hz 99% sRGB hardware low blue light flicker free eyesafe touch, Intel Graphics, Realtek Wi-Fi 7 RTL8922AE 802.11be 2x2 + BT5.4, Windows 11 Pro
Processor Intel® Core™ Ultra 5 235, 14C (6P + 8E) / 14T, Max Turbo up to 5.0GHz, 24MB
AI PC Category AI PC
NPU Integrated Intel® AI Boost, up to 13 TOPS
Graphics Integrated Intel® Graphics
Chipset Intel® Q870 Chipset
Memory 2x 8GB SO-DIMM DDR5-5600
Memory Slots Two DDR5 SO-DIMM slots, dual-channel capable
Max Memory Up to 64GB DDR5-5600
Storage 512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0
Storage Support Up to three drives, 3x M.2 SSD • M.2 SSD up to 2TB each (Discrete NPU and 3rd SSD are mutually exclusive)
RAID Preset None
Card Reader 3-in-1 Card Reader
Optical None
Audio Chip High Definition (HD) Audio, Realtek® ALC233NL-VB2-CG codec
Speakers 3Wx2
Camera 5.0MP + IR Hybrid
Microphone 2x, Array
Power Supply 180W 90%
DESIGN
Display 23.8' FHD (1920x1080) IPS Anti-glare 250nits, 120Hz, 99% sRGB, hardware low blue light, flicker free, eyesafe, touch
Touchscreen 10-point Multi-touch
Keyboard USB Traditional Keyboard, Black, English
Mouse USB Calliope Mouse
Optional Bay None
Expansion Slots Four M.2 slots (one for WLAN, three for SSD / discrete NPU)
Case Color Black
Stand Full Function Monitor Stand
Mounting VESA mount
Pen Pen Not Supported
Form Factor AIO (23.8 inches)
Dimensions (WxDxH) 539.6 x 222.21 x 393.01-543.01 mm (21.24 x 8.75 x 15.47-21.38 inches)
Weight 8.96 kg (19.75 lbs, maximum configuration)
CONNECTIVITY
WLAN + Bluetooth Realtek® Wi-Fi® 7 RTL8922AE, 802.11be 2x2 + BT5.4
WWAN Non-WWAN
Ethernet Integrated 100/1000M
Rear Ports 2x USB-A (USB 10Gbps / USB 3.2 Gen 2)
2x USB-A (USB 5Gbps / USB 3.2 Gen 1), one supports Smart Power On
1x HDMI® (HDMI in 1.4 / HDMI out 2.1 TMDS combo port)
1x DisplayPort™ 1.4a (HBR2)
1x Ethernet (RJ-45)
Right Ports 1x USB-A (USB 10Gbps / USB 3.2 Gen 2)
1x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 3.0 up to 65W output, DisplayPort™ 2.1, Always On
1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), support data transfer and 5V@3A charging
1x headphone / microphone combo jack (3.5mm)
Optional Right Ports (configured) 1x card reader
Optional Ports (configured) None
SECURITY & PRIVACY
Security Chip Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Fingerprint Reader No fingerprint reader
Physical Locks Kensington® Security Slot™, 3 x 7 mm
Chassis Intrusion Switch None
Additional Security None
Other Security ThinkShutter camera cover (camera models)
MANAGEABILITY
System Management Non-vPro®
SERVICE
Base Warranty 3-year, Onsite
Included Upgrade None
CERTIFICATIONS
Green Certifications ENERGY STAR® 9.0
EPEAT™ Gold Registered
ErP Lot 3
GREENGUARD®
RoHS compliant
TCO Certified 10.0
TCO edge
Other Certifications Anti-dust
IP55-compliant (front face, for touch models)
Healthcare compliance: Part of IEC 60601-1 / IEC 60601-1-2
Eyesafe® Certified 2.0
SGS Performance Tested certification : Super Quiet@Hi-Performance Grade 1
TÜV Rheinland® Flicker Free
TÜV Rheinland® Low Blue Light (Hardware Solution)
Mil-Spec Test MIL-STD-810H military test passed (Low Pressure [Altitude], High Temperature, Low Temperature, Temperature Shock, Humidity, Sand and Dust, Vibration, Shock, Fungus, Solar Radiation, Contamination by Fluids, Salt Fog)
Key Features
- Intel Core Ultra 5 235, 14C (6P + 8E)/14T, Max Turbo up to 5.0GHz, 24MB Intel Smart Cache
- 23.8" FHD (1920x1080) IPS 250nits 120Hz 99% sRGB hardware low blue light flicker free eyesafe touch
- 2x 8GB SODIMM DDR5-5600
- 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
- Intel Graphics
- Windows 11 Pro
Description
LENOVO ThinkCentre M90A G6 23.8'/24' FHD IPS TOUCH Intel U5-235 vPro 16GB DDR5 512GB SSD Windows 11 Pro 3yrs Onsite Wty Keyboard Mouse WiFi+BTProcessor Intel® Core™ Ultra 5 235, 14C (6P + 8E) / 14T, Max Turbo up to 5.0GHz, 24MB
AI PC Category AI PC
NPU Integrated Intel® AI Boost, up to 13 TOPS
Graphics Integrated Intel® Graphics
Chipset Intel® Q870 Chipset
Memory 2x 8GB SO-DIMM DDR5-5600
Memory Slots Two DDR5 SO-DIMM slots, dual-channel capable
Max Memory Up to 64GB DDR5-5600
Storage 512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0
Storage Support Up to three drives, 3x M.2 SSD • M.2 SSD up to 2TB each (Discrete NPU and 3rd SSD are mutually exclusive)
RAID Preset None
Card Reader 3-in-1 Card Reader
Optical None
Audio Chip High Definition (HD) Audio, Realtek® ALC233NL-VB2-CG codec
Speakers 3Wx2
Camera 5.0MP + IR Hybrid
Microphone 2x, Array
Power Supply 180W 90%
DESIGN
Display 23.8' FHD (1920x1080) IPS Anti-glare 250nits, 120Hz, 99% sRGB, hardware low blue light, flicker free, eyesafe, touch
Touchscreen 10-point Multi-touch
Keyboard USB Traditional Keyboard, Black, English
Mouse USB Calliope Mouse
Optional Bay None
Expansion Slots Four M.2 slots (one for WLAN, three for SSD / discrete NPU)
Case Color Black
Stand Full Function Monitor Stand
Mounting VESA mount
Pen Pen Not Supported
Form Factor AIO (23.8 inches)
Dimensions (WxDxH) 539.6 x 222.21 x 393.01-543.01 mm (21.24 x 8.75 x 15.47-21.38 inches)
Weight 8.96 kg (19.75 lbs, maximum configuration)
CONNECTIVITY
WLAN + Bluetooth Realtek® Wi-Fi® 7 RTL8922AE, 802.11be 2x2 + BT5.4
WWAN Non-WWAN
Ethernet Integrated 100/1000M
Rear Ports 2x USB-A (USB 10Gbps / USB 3.2 Gen 2)
2x USB-A (USB 5Gbps / USB 3.2 Gen 1), one supports Smart Power On
1x HDMI® (HDMI in 1.4 / HDMI out 2.1 TMDS combo port)
1x DisplayPort™ 1.4a (HBR2)
1x Ethernet (RJ-45)
Right Ports 1x USB-A (USB 10Gbps / USB 3.2 Gen 2)
1x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 3.0 up to 65W output, DisplayPort™ 2.1, Always On
1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), support data transfer and 5V@3A charging
1x headphone / microphone combo jack (3.5mm)
Optional Right Ports (configured) 1x card reader
Optional Ports (configured) None
SECURITY & PRIVACY
Security Chip Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Fingerprint Reader No fingerprint reader
Physical Locks Kensington® Security Slot™, 3 x 7 mm
Chassis Intrusion Switch None
Additional Security None
Other Security ThinkShutter camera cover (camera models)
MANAGEABILITY
System Management Non-vPro®
SERVICE
Base Warranty 3-year, Onsite
Included Upgrade None
CERTIFICATIONS
Green Certifications ENERGY STAR® 9.0
EPEAT™ Gold Registered
ErP Lot 3
GREENGUARD®
RoHS compliant
TCO Certified 10.0
TCO edge
Other Certifications Anti-dust
IP55-compliant (front face, for touch models)
Healthcare compliance: Part of IEC 60601-1 / IEC 60601-1-2
Eyesafe® Certified 2.0
SGS Performance Tested certification : Super Quiet@Hi-Performance Grade 1
TÜV Rheinland® Flicker Free
TÜV Rheinland® Low Blue Light (Hardware Solution)
Mil-Spec Test MIL-STD-810H military test passed (Low Pressure [Altitude], High Temperature, Low Temperature, Temperature Shock, Humidity, Sand and Dust, Vibration, Shock, Fungus, Solar Radiation, Contamination by Fluids, Salt Fog)
Specifications
| Display | |
|---|---|
| HD type | Full HD |
| Display diagonal | 60.5 cm (23.8") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Yes |
| Display brightness | 250 cd/m² |
| Panel type | IPS |
| Colour gamut | 99% |
| RGB colour space | sRGB |
| Native aspect ratio | 16:9 |
| Anti-glare screen | Yes |
| Processor | |
| Processor family | Intel Core Ultra 5 |
| Processor model | 235 |
| Processor cores | 14 |
| Motherboard chipset | Intel® Q870 |
| Processor manufacturer | Intel |
| Memory | |
| Internal memory | 16 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory clock speed | 5600 MHz |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory form factor | DIMM/SO-DIMM |
| Storage | |
| Optical drive type | No |
| Total storage capacity | 512 GB |
| Card reader integrated | Yes |
| Storage media | SSD |
| SSD interface | PCI Express 4.0 |
| SSD capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD form factor | M.2 |
| Total SSDs capacity | 512 GB |
| NVMe | Yes |
| Graphics | |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® Graphics |
| On-board graphics card | Yes |
| Audio | |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| RMS rated power | 6 W |
| Built-in microphone | Yes |
| Camera | |
| Built-in camera | Yes |
| Total megapixels | 5 MP |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Antenna type | 2x2 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 2.0 ports quantity | 0 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB Sleep-and-Charge | Yes |
| Combo headphone/mic port | Yes |
| Intel® Thunderbolt 4 | Yes |
| Thunderbolt 4 ports quantity | 1 |
| Design | |
| Product colour | Black |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Performance | |
| Product type | All-in-One PC |
| Motherboard chipset | Intel® Q870 |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Software | |
| Operating system installed | Windows 11 Pro |
| Operating system language | English |
| Power | |
| AC adapter power | 180 W |
| Multimedia | |
| Built-in camera | Yes |
| Total megapixels | 5 MP |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
| Weight & dimensions | |
| Width (with stand) | 539.6 mm |
| Depth (with stand) | 222.2 mm |
| Weight (with stand) | 8.96 kg |
| Packaging content | |
| Mouse included | Yes |
| Keyboard included | Yes |
| Mouse connectivity | Wired |
| Keyboard connectivity | Wired |
| Other features | |
| SSD interface | PCI Express 4.0 |
| SSD capacity | 512 GB |
| Processor manufacturer | Intel |
| On-board graphics card | Yes |
| Number of SSDs installed | 1 |
