LENOVO

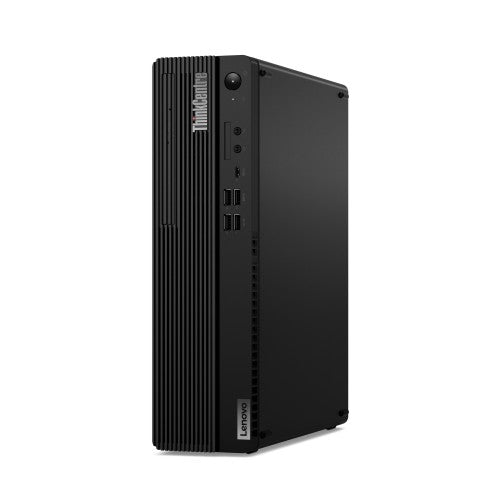

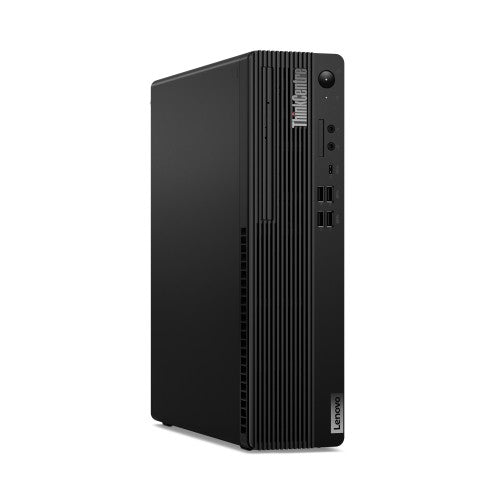

Lenovo ThinkCentre M70s Gen 5 Intel® Core™ i5 i5-14400 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro SFF PC Black
Your price
$1,415.12
List price
GST included · AUD
New
Sealed in box
Australian stock
Warehouses in Sydney, Melbourne, Brisbane, Adelaide and Perth
Delivery only - Pickup unavailable
2-5 Business days metro delivery.
Australian manufacturer Warranty
In stock — ready to ship
Estimate shipping
Enter an Australian postcode for a quick estimate.
Final shipping options and price are confirmed at checkout.
- Local Australian stock
- Australian manufacturer warranty
- GST included
- Secure checkout
Need bulk pricing for schools or councils? Request a quote via Contact Us.
Intel Core i5-14400, 10C (6P + 4E)/16T, P-core 2.5/4.7GHz, E-core 1.8/3.5GHz, 20MB, 2x 8GB UDIMM DDR5-4800, 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0, Intel UHD Graphics 730, Intel Wi-Fi 6 AX201 802.11ax 2x2 + BT5.2, Windows 11 Pro
PERFORMANCE
Processor Intel® Core™ i5-14400, 10C (6P + 4E) / 16T, P-core 2.5 / 4.7GHz, E-core 1.8 / 3.5GHz, 20MB
Graphics Integrated Intel® UHD Graphics 730
Chipset Intel® Q670 Chipset
Memory 2x 8GB UDIMM DDR5-4800
Memory Slots Two DDR5 UDIMM slots, dual-channel capable
Max Memory Up to 64GB DDR5
Storage 512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0
Storage Support Up to three drives, 1x 3.5' HDD + 1x 2.5' HDD + 1x M.2 SSD • 3.5' HDD up to 2TB • 2.5' HDD bay is only for customer self upgrade • M.2 SSD up to 2TB each
Card Reader None
Optical None
Audio Chip High Definition (HD) Audio, Realtek® ALC623-CG codec
Speakers 1Wx1
Power Supply 260W 90%
DESIGN
Keyboard USB Traditional Keyboard, Black, English
Mouse USB Calliope Mouse, Black
Optional Bay None
Expansion Slots One PCIe® 3.0 x16, low-profile, length ≤ 155mm, height ≤ 70mm
One PCIe® 3.0 x1, low-profile, length ≤ 155mm, height ≤ 70mm
Two M.2 slots (one for WLAN, one for SSD)
Case Color Black
Stand None
Dust Filter None
Pen Pen Not Supported
Form Factor SFF (8.2L)
Dimensions (WxDxH) 92.5 x 297.7 x 339.5 mm (3.6 x 11.7 x 13.4 inches)
Weight Around 5.3 kg (11.7 lbs)
CONNECTIVITY
Ethernet Integrated 100/1000M
WLAN + Bluetooth Intel® Wi-Fi® 6 AX201, 802.11ax 2x2 + BT5.2
WWAN Non-WWAN

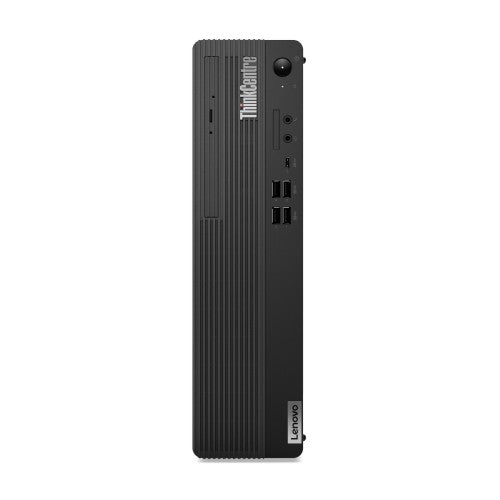

Front Ports 1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with 15W charging
4x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x headphone / microphone combo jack (3.5mm)
1x microphone (3.5mm)

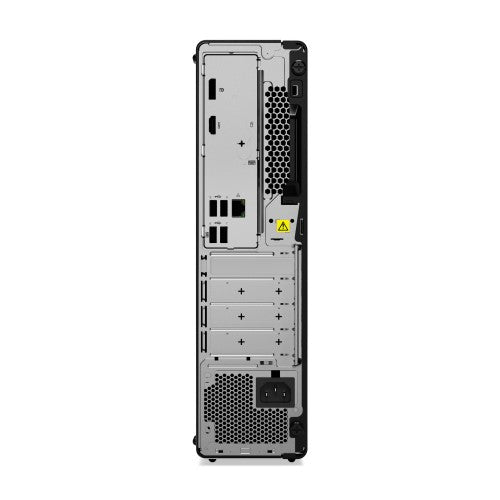

Rear Ports 4x USB-A (Hi-Speed USB / USB 2.0)
1x HDMI® 2.1 TMDS
1x DisplayPort™ 1.4a (HBR2, DSC)
1x Ethernet (RJ-45)
Optional Rear Ports (configured) None
SECURITY & PRIVACY
Security Chip Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Fingerprint Reader No fingerprint reader
Physical Locks Kensington® Security Slot™, 3 x 7 mm
Padlock Loop
Smart Cable Clip None
Chassis E-Lock None
Chassis Intrusion Switch None
MANAGEABILITY
System Management Non-vPro®
SERVICE
Base Warranty 3-year, Onsite
Included Upgrade None
CERTIFICATIONS
Green Certifications ENERGY STAR® 8.0
EPEAT™ Gold Registered
ErP Lot 3
GREENGUARD®
RoHS compliant
TCO Certified 9.0
Mil-Spec Test MIL-STD-810H military test passed (Low Pressure [Altitude], High Temperature, Low Temperature, Temperature Shock, Humidity, Sand and Dust, Vibration, Shock, Solar Radiation, Contamination by Fluids, Salt Fog)
Key Features
- Intel Core i5-14400, 10C (6P + 4E)/16T, P-core 2.5/4.7GHz, E-core 1.8/3.5GHz, 20MB
- 2x 8GB UDIMM DDR5-4800
- 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
- Intel UHD Graphics 730
- Windows 11 Pro
Description
LENOVO ThinkCentre M70s G5 SFF Desktop PC i5-14400 16GB DDR5 512GB SSD Windows 11 Pro 3yrs Onsite Wty Ethernet RJ-45 LAN UHD Graphics Keyboard MousePERFORMANCE
Processor Intel® Core™ i5-14400, 10C (6P + 4E) / 16T, P-core 2.5 / 4.7GHz, E-core 1.8 / 3.5GHz, 20MB
Graphics Integrated Intel® UHD Graphics 730
Chipset Intel® Q670 Chipset
Memory 2x 8GB UDIMM DDR5-4800
Memory Slots Two DDR5 UDIMM slots, dual-channel capable
Max Memory Up to 64GB DDR5
Storage 512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0
Storage Support Up to three drives, 1x 3.5' HDD + 1x 2.5' HDD + 1x M.2 SSD • 3.5' HDD up to 2TB • 2.5' HDD bay is only for customer self upgrade • M.2 SSD up to 2TB each
Card Reader None
Optical None
Audio Chip High Definition (HD) Audio, Realtek® ALC623-CG codec
Speakers 1Wx1
Power Supply 260W 90%
DESIGN
Keyboard USB Traditional Keyboard, Black, English
Mouse USB Calliope Mouse, Black
Optional Bay None
Expansion Slots One PCIe® 3.0 x16, low-profile, length ≤ 155mm, height ≤ 70mm
One PCIe® 3.0 x1, low-profile, length ≤ 155mm, height ≤ 70mm
Two M.2 slots (one for WLAN, one for SSD)
Case Color Black
Stand None
Dust Filter None
Pen Pen Not Supported
Form Factor SFF (8.2L)
Dimensions (WxDxH) 92.5 x 297.7 x 339.5 mm (3.6 x 11.7 x 13.4 inches)
Weight Around 5.3 kg (11.7 lbs)
CONNECTIVITY
Ethernet Integrated 100/1000M
WLAN + Bluetooth Intel® Wi-Fi® 6 AX201, 802.11ax 2x2 + BT5.2
WWAN Non-WWAN
Front Ports 1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with 15W charging
4x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x headphone / microphone combo jack (3.5mm)
1x microphone (3.5mm)
Rear Ports 4x USB-A (Hi-Speed USB / USB 2.0)
1x HDMI® 2.1 TMDS
1x DisplayPort™ 1.4a (HBR2, DSC)
1x Ethernet (RJ-45)
Optional Rear Ports (configured) None
SECURITY & PRIVACY
Security Chip Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Fingerprint Reader No fingerprint reader
Physical Locks Kensington® Security Slot™, 3 x 7 mm
Padlock Loop
Smart Cable Clip None
Chassis E-Lock None
Chassis Intrusion Switch None
MANAGEABILITY
System Management Non-vPro®
SERVICE
Base Warranty 3-year, Onsite
Included Upgrade None
CERTIFICATIONS
Green Certifications ENERGY STAR® 8.0
EPEAT™ Gold Registered
ErP Lot 3
GREENGUARD®
RoHS compliant
TCO Certified 9.0
Mil-Spec Test MIL-STD-810H military test passed (Low Pressure [Altitude], High Temperature, Low Temperature, Temperature Shock, Humidity, Sand and Dust, Vibration, Shock, Solar Radiation, Contamination by Fluids, Salt Fog)
Specifications
| Processor | |
|---|---|
| Processor generation | Intel® Core™ i5 (14th gen) |
| Processor cache type | Smart Cache |
| Processor family | Intel® Core™ i5 |
| Processor manufacturer | Intel |
| Processor model | i5-14400 |
| Processor cores | 10 |
| Processor boost frequency | 4.7 GHz |
| Processor cache | 20 MB |
| Processor threads | 16 |
| Performance cores | 6 |
| Efficient cores | 4 |
| Performance-core base frequency | 2.5 GHz |
| Efficient-core base frequency | 1.8 GHz |
| Processor base power | 65 W |
| Maximum turbo power | 148 W |
| Efficient-core Max Turbo Frequency | 3.5 GHz |
| Performance-core Max Turbo Frequency | 4.7 GHz |
| Memory | |
| Internal memory | 16 GB |
| Internal memory type | DDR5-SDRAM |
| Maximum internal memory | 64 GB |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory slots | 2x DIMM |
| Memory clock speed | 4800 MHz |
| Memory channels | Dual-channel |
| Storage | |
| Total storage capacity | 512 GB |
| Optical drive type | No |
| Card reader integrated | No |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| Total SSDs capacity | 512 GB |
| NVMe | Yes |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card family | Intel® UHD Graphics |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel UHD Graphics 730 |
| On-board graphics card | Yes |
| On-board GPU manufacturer | Intel |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| WLAN controller manufacturer | Intel |
| Ports & interfaces | |
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| USB 2.0 ports quantity | 4 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Yes |
| DisplayPort version | 1.4a |
| Design | |
| Product colour | Black |
| Volume | 8.2 L |
| Chassis type | SFF |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Colour name | Black |
| Performance | |
| Audio chip | Realtek ALC623-CG |
| Number of speakers | 1 |
| Product type | PC |
| Motherboard chipset | Intel Q670 |
| Audio system | High Definition Audio |
| Password protection | Yes |
| Password protection type | BIOS, HDD, Power on, Supervisor |
| Trusted Platform Module (TPM) | Yes |
| Built-in speaker(s) | Yes |
| Software | |
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
| Operating system language | English |
| Power | |
| Power supply | 260 W |
| Power supply input frequency | 50/60 Hz |
| Power supply input voltage | 100 - 240 V |
| Certificates | |
| Certification | ErP Lot 3 GREENGUARD RoHS compliant TCO Certified 9.0 MIL-STD-810H military test passed |
| Compliance certificates | RoHS |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | ErP, TCO |
| Weight & dimensions | |
| Volume | 8.2 L |
| Width | 92.5 mm |
| Depth | 297.7 mm |
| Height | 339.5 mm |
| Weight | 5.3 kg |
| Package width | 195 mm |
| Package depth | 395 mm |
| Package height | 530 mm |
| Package weight | 7.6 kg |
| Packaging data | |
| Package width | 195 mm |
| Package depth | 395 mm |
| Package height | 530 mm |
| Package weight | 7.6 kg |
| Packaging content | |
| Display included | No |
| Mouse included | Yes |
| Keyboard included | Yes |
| Mouse connectivity | Wired |
| Keyboard connectivity | Wired |
| Display | |
| Display included | No |
| Technical details | |
| Sustainability compliance | Yes |
| Sustainability certificates | ErP, TCO |
| Compliance certificates | RoHS |
| Other features | |
| Number of speakers | 1 |
| Processor manufacturer | Intel |
| Trusted Platform Module (TPM) | Yes |
| On-board graphics card | Yes |
| Built-in speaker(s) | Yes |
