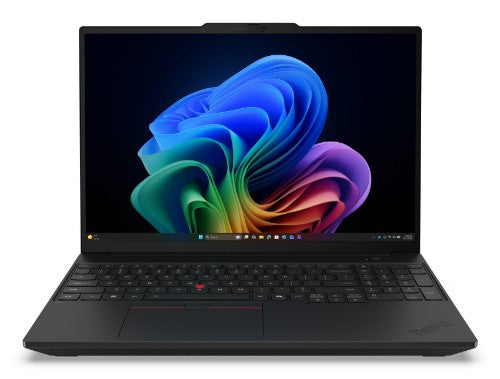

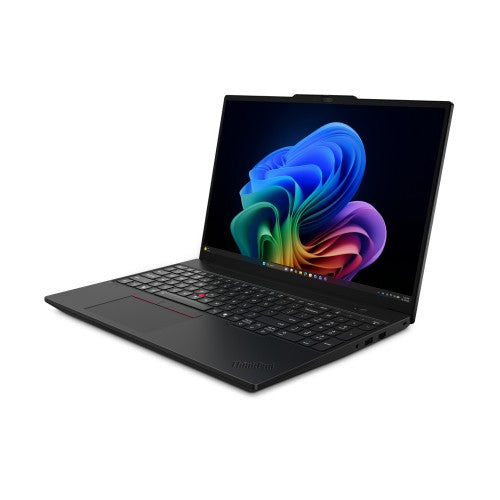

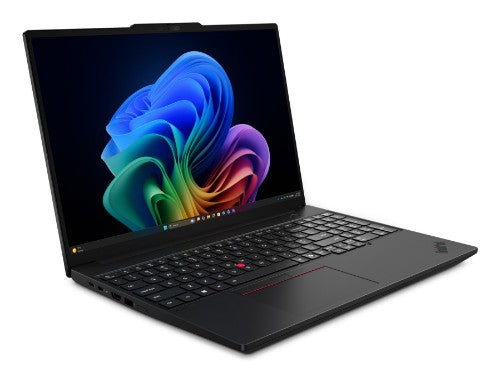

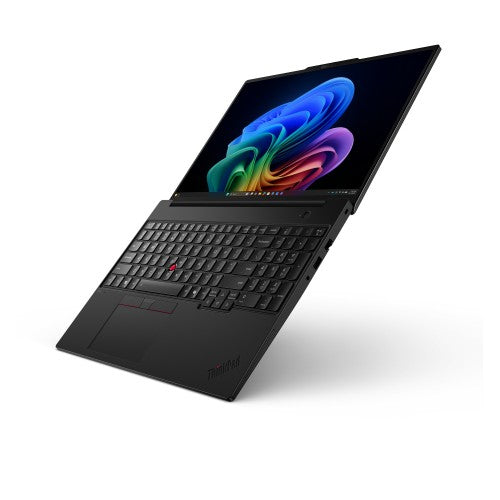

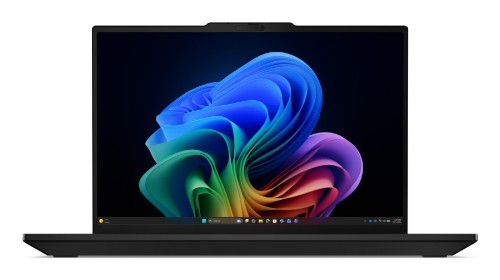

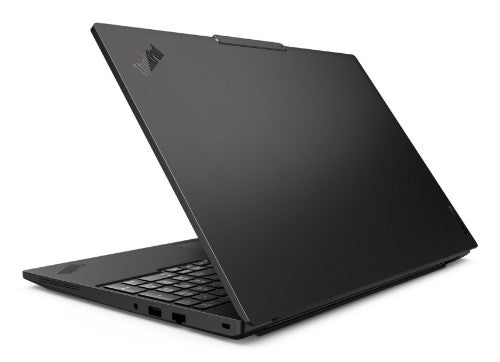

AMD Ryzen AI 5 PRO 440 (2GHz), 32GB DDR5-SDRAM, 512GB SSD, 16" WUXGA 1920 x 1200 IPS, AMD Radeon 840M, LAN, WLAN, Webcam, Windows 11 Pro
Key Features
- Windows 11 Pro
- AMD Ryzen AI 5 PRO 440 (2GHz)
- 16" WUXGA 1920 x 1200 IPS
- 32GB (5600MHz) DDR5-SDRAM (2 x 16) & 512GB SSD
Description
LENOVO ThinkPad T16 G5 16' WUXGA AMD Ryzen PRO 5‑440 32GB DDR5 512GB SSD WIN 11 PRO Radeon 840M GPU Copilot+ PC 50 TOPS 3yr PREM 1.6kg
PERFORMANCE
Processor AMD Ryzen™ AI 5 PRO 440 (6C / 12T, 2.0 / 4.8GHz, 6MB L2 / 16MB L3)
AI PC Category Copilot+ PC
NPU Integrated AMD Ryzen™ AI, up to 50 TOPS
Graphics Integrated AMD Radeon™ 840M Graphics
Chipset AMD SoC Platform
Memory 2x 16GB SODIMM DDR5-5600
Memory Slots Two DDR5 SODIMM slots, dual-channel capable
Max Memory Gorgon Point: up to 96GB DDR5-5600
Storage 512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0
Storage Slot One M.2 2280 PCIe® 4.0 x4 slot
Max Storage Support Gorgon Point: one drive, up to 2TB M.2 2280 SSD
Optical None
Card Reader No Card Reader
Audio Chip High Definition (HD) Audio, Realtek® ALC3287 codec
Speakers Stereo speakers, 2W x2, Dolby Atmos®
Microphone 2x, 360°
Camera 5.0MP + IR Discrete with Privacy Shutter
Battery 60Wh
Power Adapter 65W USB-C® (3-pin)
DESIGN
Display 16' WUXGA (1920x1200) IPS 400nits Anti-glare, 45% NTSC, 60Hz, DBEF5
Touchscreen None
Screen-to-Body Ratio 88.85%
Pen Pen Not Supported
Keyboard Backlit, English
Dimensions (WxDxH) 357.9 x 247.9 x 11.45 / 18.2 (front / rear), 23.8 (maximum) mm 14.09 x 9.76 x 0.45 / 0.72 (front / rear), 0.94 (maximum) inches
Weight Starting at 1.74 kg (3.83 lbs)
Case Color Black
Case Material PC + 20% CF (Top), PC + 20% CF (Bottom)
SOFTWARE
Operating System Windows® 11 Pro, English (US) / English (UK)
Bundled Software Lenovo® AI Now
CONNECTIVITY
WLAN + Bluetooth MediaTek Wi-Fi® 7 MT7925, 802.11be 2x2 + BT5.4
WWAN WWAN Not Supported
SIM Card No physical SIM card inbox
Ethernet 100/1000M (RJ-45)
NFC No NFC
Standard Ports 1x USB-A (USB 5Gbps), Always On
1x USB-A (USB 5Gbps)
2x Thunderbolt™ 4, with USB PD 15-100W and DisplayPort™ 2.1 (Gorgon Point) / DisplayPort™ 1.4a (Hawk Point)
1x HDMI® 2.1, up to 4K/60Hz
1x Headphone / microphone combo jack (3.5mm)
1x Ethernet (RJ-45)
Optional Ports (configured) None
Docking Various docking solutions supported via Thunderbolt™ / USB-C®. For more compatible docking solutions, please visit Docking for ThinkPad® T16 Gen 5 (AMD)
SECURITY & PRIVACY
ThinkShield ThinkShield is a comprehensive security solution that encompasses hardware, software, and supply chain components. For more detials, visit here
Security Chip Discrete TPM 2.0 Enabled
Physical Locks Kensington Nano Security Slot™, 2.5 x 6 mm
Smart Card Reader No Smart Card Reader
Fingerprint Reader Touch Style, Match-on-Chip, Integrated in Power Button
Other Security Camera privacy shutter (camera models)
IR camera for Windows® Hello (facial recognition)
MANAGEABILITY
System Management DASH
SERVICE
Base Warranty 3-year, Courier or Carry-in with 1-year Battery
Included Upgrade CO2 Offset Service 200kg Gen 3 Commercial IDG, 3Y Premier Support for AIPC upgrade from 3Y Courier/Carry-in

Specifications
| Design |
| Product type |
Laptop |
| Product colour |
Black |
| Form factor |
Clamshell |
| Housing material |
Polycarbonate (PC), Carbon fibre, Glass fibre |
| Display |
| HD type |
WUXGA |
| Display diagonal |
40.6 cm (16") |
| Display resolution |
1920 x 1200 pixels |
| Touchscreen |
No |
| LED backlight |
Yes |
| Display brightness |
400 cd/m² |
| Panel type |
IPS |
| Contrast ratio (typical) |
1000:1 |
| Anti-glare screen |
Yes |
| Maximum refresh rate |
60 Hz |
| RGB colour space |
NTSC |
| Colour gamut |
45% |
| Native aspect ratio |
16:10 |
| Processor |
| Processor generation |
AMD Ryzen AI PRO 400 Series |
| Processor cache type |
L2 & L3 |
| Processor frequency |
2 GHz |
| Processor family |
AMD Ryzen AI 5 PRO |
| Processor model |
PRO 440 |
| Processor boost frequency |
4.8 GHz |
| Processor cores |
6 |
| Processor threads |
12 |
| L3 cache |
16 MB |
| L2 cache |
6 MB |
| Motherboard chipset |
AMD SoC |
| Processor manufacturer |
AMD |
| Neural processor unit (NPU) |
| Neural processor unit (NPU) |
AMD Ryzen AI |
| Total processor performance up to |
59 TOPs |
| NPU performance up to |
50 TOPs |
| Copilot+ PC |
Yes |
| Memory |
| Internal memory |
32 GB |
| Internal memory type |
DDR5-SDRAM |
| Memory clock speed |
5600 MHz |
| Memory layout (slots x size) |
2 x 16 GB |
| Memory slots |
2x SO-DIMM |
| Maximum internal memory |
96 GB |
| Memory form factor |
SO-DIMM |
| Memory channels |
Dual-channel |
| Storage |
| SSD form factor |
M.2 |
| Optical drive type |
No |
| Total storage capacity |
512 GB |
| Storage media |
SSD |
| Number of SSDs installed |
1 |
| SSD capacity |
512 GB |
| SSD interface |
PCI Express 4.0 |
| Card reader integrated |
No |
| Total SSDs capacity |
512 GB |
| NVMe |
Yes |
| M.2 SSD size |
2280 (22 x 80 mm) |
| Graphics |
| Discrete graphics card |
No |
| On-board graphics card family |
AMD Radeon |
| On-board graphics card model |
AMD Radeon 840M |
| Discrete graphics card model |
Not available |
| On-board graphics card |
Yes |
| On-board GPU manufacturer |
AMD |
| Audio |
| Audio chip |
Realtek ALC3287 |
| Number of microphones |
2 |
| Audio system |
Dolby Atmos |
| Number of built-in speakers |
2 |
| Speaker power |
2 W |
| Built-in microphone |
Yes |
| Camera |
| Front camera |
Yes |
| Front camera resolution (numeric) |
5 MP |
| Privacy camera |
Yes |
| Privacy type |
Privacy shutter |
| Infrared (IR) camera |
Yes |
| Windows Hello |
Yes |
| Optical drive |
| Optical drive type |
No |
| Network |
| Mobile network connection |
No |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| WLAN controller model |
MediaTek MT7925 |
| Bluetooth |
Yes |
| Wi-Fi standards |
Wi-Fi 7 (802.11be) |
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
100,1000 Mbit/s |
| Bluetooth version |
5.4 |
| WWAN |
Not installed |
| Near Field Communication (NFC) |
No |
| Antenna type |
2x2 |
| WLAN controller manufacturer |
MediaTek |
| Ports & interfaces |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| USB 2.0 ports quantity |
0 |
| HDMI ports quantity |
1 |
| HDMI version |
2.1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Combo headphone/mic port |
Yes |
| USB Sleep-and-Charge ports |
1 |
| USB Sleep-and-Charge |
Yes |
| USB Power Delivery (USB PD) |
Yes |
| Thunderbolt 4 ports quantity |
2 |
| Intel® Thunderbolt 4 |
Yes |
| Performance |
| Motherboard chipset |
AMD SoC |
| Keyboard |
| Pointing device |
ThinkPad UltraNav |
| Numeric keypad |
Yes |
| Spill-resistant keyboard |
Yes |
| Keyboard backlit |
Yes |
| Keyboard language |
English |
| Copilot key |
Yes |
| Software |
| Operating system installed |
Windows 11 Pro |
| Operating system language |
ENG-UK, US English |
| Bundled software |
Lenovo AI Now |
| Microsoft Copilot |
Yes |
| Copilot+ PC |
Yes |
| Battery |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Battery capacity |
60 Wh |
| Fast charging |
Yes |
| Power |
| AC adapter power |
65 W |
| AC adapter frequency |
50 - 60 Hz |
| AC adapter input voltage |
100 - 240 V |
| USB Power Delivery (USB PD) |
Yes |
| USB Type-C charging port |
Yes |
| USB Type-C required charging power (min) |
15 W |
| USB Type-C required charging power (max) |
100 W |
| Security |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Fingerprint reader |
Yes |
| Trusted Platform Module (TPM) |
Yes |
| Password protection |
Yes |
| Password protection type |
BIOS, Power on, SSD, Supervisor |
| Windows Hello |
Yes |
| Smart card reader |
No |
| Trusted Platform Module (TPM) version |
2.0 |
| Operational conditions |
| Operating temperature (T-T) |
5 - 35 °C |
| Storage temperature (T-T) |
5 - 43 °C |
| Operating relative humidity (H-H) |
8 - 95% |
| Storage relative humidity (H-H) |
5 - 95% |
| Maximum shipping altitude |
3048 m |
| Certificates |
| Certification |
ENERGY STAR 9.0
EPEAT Gold Registered
ErP Lot 6/26
RoHS compliant
TCO Certified, generation 10
MIL-STD-810H military test passed |
| Weight & dimensions |
| Weight |
1.78 kg |
| Width |
357.9 mm |
| Depth |
247.9 mm |
| Height (front) |
1.15 cm |
| Height (rear) |
1.82 cm |
| Packaging data |
| AC adapter included |
Yes |
| Packaging content |
| AC adapter included |
Yes |
| Other features |
| WLAN controller model |
MediaTek MT7925 |
| Audio system |
Dolby Atmos |
| On-board graphics card |
Yes |
| Maximum shipping altitude |
3048 m |
| AC adapter included |
Yes |
| Anti-glare screen |
Yes |
