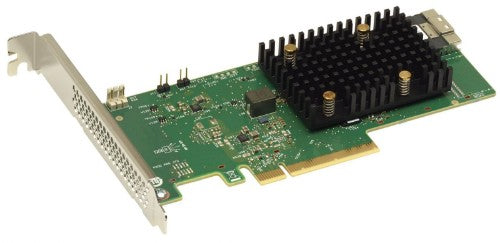

Lenovo 4Y37A93012 RAID controller PCI Express x8 12 Gbit/s

ThinkSystem RAID 545-8i PCIe Gen4 12Gb Adapter

Description

The ThinkSystem RAID 540/545 PCIe Gen4 12Gb Adapters are an entry-level 12 Gb SAS/SATA family of internal RAID adapters that offer a cost-effective RAID solution for small to medium business customers. These cacheless adapters support RAID levels 0, 1 and 10, and include an extensive list of RAS and management features.

Specifications

Ports & interfaces
Supported storage drive interfaces	PCI Express 4.0
Host interface	PCI Express x8
Performance
RAID levels	0, 1, 10
SSD support	Yes
Chipset	SAS3808
S.M.A.R.T. support	Yes
Number of devices supported	8
Form factor	Low Profile PCIe
Data transfer rate	12 Gbit/s
Hot-swap	Yes
Certification	USA (FCC 47 CFR part 15 Subpart B, class B) Canada (ICES -003, Class B) Taiwan (CNS 13438) Japan (VCCI V-3) Australia/New Zealand (AS/NZS CISPR 22) Korea (RRA no 2013-24 & 25) Europe (EN55022/EN55024) Safety: EN/IEC/ UL 60950; RoHS; WEEE
JBOD function	Yes
Design
Form factor	Low Profile PCIe
Operational conditions
Operating temperature (T-T)	10 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	20 - 90%
Storage relative humidity (H-H)	5 - 95%
