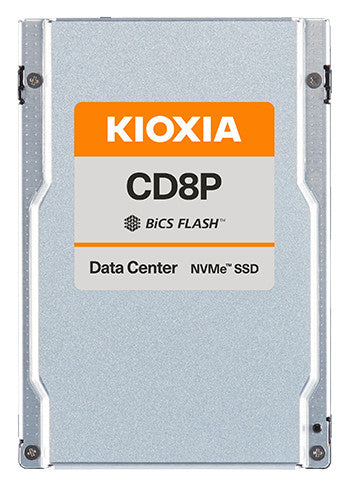

ThinkSystem 2.5" U.2 CD8P 6.4TB Mixed Use NVMe PCIe 5.0 x4 HS SSD
Key Features
- Based on the Kioxia CD8P-V drives
- Available in three form factors:
- 15mm 2.5-inch drives in a hot-swap tray
- E3.S 1T drives in a hot-swap tray
- E3.S 1T drives without a hot-swap tray (trayless)
- Direct PCIe 5.0 x4 connection for each NVMe drive, resulting in up to 14 GBps overall throughput, compared to 7.5 GBps for a PCIe 4.0 connection
- Also supports PCIe 4.0 and 3.0 host connection for previous-generation servers
- Based on KIOXIA BiCS FLASH Gen 5 TLC flash memory
- Single-port design, optimized for data center class workloads
- Consistent performance and reliability for demanding 24x7 environments
- Designed for high-density storage deployments
- Power loss protection (PLP) and end-to-end data correction
- Supports Self-Monitoring, Analysis and Reporting Technology (S.M.A.R.T)
- SED support for TCG Opal and Ruby SSCs
- Supports the following specifications:
- PCI Express Base Specification, Revision 5.0, May 28, 2019
- NVM Express Specification, Revision 2.0, July 23, 2021
- NVM Express Management Interface, Revision 1.1d, March 11, 2021
Description
The ThinkSystem CD8P Mixed Use NVMe PCIe 5.0 SSDs, available in capacities up to 12.8TB, are general-purpose yet high-performance NVMe PCIe Gen 5 SSDs. Available in the 2.5-inch form factor, they are engineered for greater performance and endurance in a cost-effective design, and to support a broader set of workloads. Now with SED encryption as standard, these drives help ensure data security, even when the drive is removed from the server.
This product guide provides essential presales information to understand the CD8P SSDs and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.
Non-Volatile Memory Express (NVMe) is PCIe high performance SSD technology that provides high I/O throughput and low latency. NVMe interfaces remove SAS/SATA bottlenecks and unleash all of the capabilities of contemporary NAND flash memory. Each of the CD8P SSDs have direct PCIe 5.0 x4 connection, which provides at significantly greater bandwidth and lower latency than SATA/SAS-based SSD solutions. NVMe drives are also optimized for heavy multi-threaded workloads by using internal parallelism and many other improvements, such as enlarged I/O queues.
Specifications
| Features |
|---|
| Interface |
PCI Express 5.0 |
| Component for |
Server |
| SSD capacity |
6.4 TB |
| NVMe |
Yes |
| Sequential read speed (ATTO) |
12000 MB/s |
| Sequential write speed (ATTO) |
5500 MB/s |
| Memory type |
TLC |
| PCI Express interface data lanes |
x4 |
| Random read (4KB) |
2000000 IOPS |
| Random write (4KB) |
400000 IOPS |
| Security algorithms |
TCG Opal 2.0 |
| S.M.A.R.T. support |
Yes |
| Uncorrectable Bit Error Rate (UBER) |
< 1 per 10^17 bits read |
| Hot-swap |
Yes |
| Hardware encryption |
Yes |
| Mean time between failures (MTBF) |
2500000 h |
| SSD form factor |
2.5" |
| Market segment |
Server |
| TCG Opal 2.0 |
Yes |
| H/W PLP function |
Yes |
| Target workload |
Mixed Use (MU) |
| Random latency - read (up to) |
69 µs |
| Random latency - write (up to) |
10 µs |
| Drive writes per day (DWPD) |
3 |
| Power |
|---|
| Power consumption (idle) |
21 W |
| Performance |
|---|
| Interface |
PCI Express 5.0 |
| Component for |
Server |
| SSD capacity |
6.4 TB |
| NVMe |
Yes |
| Sequential read speed (ATTO) |
12000 MB/s |
| Sequential write speed (ATTO) |
5500 MB/s |
| Memory type |
TLC |
| PCI Express interface data lanes |
x4 |
| Random read (4KB) |
2000000 IOPS |
| Random write (4KB) |
400000 IOPS |
| Security algorithms |
TCG Opal 2.0 |
| S.M.A.R.T. support |
Yes |
| Uncorrectable Bit Error Rate (UBER) |
< 1 per 10^17 bits read |
| Hot-swap |
Yes |
| Hardware encryption |
Yes |
| Mean time between failures (MTBF) |
2500000 h |
| TCG Opal 2.0 |
Yes |
| Design |
|---|
| SSD form factor |
2.5" |
| Market segment |
Server |
| Technical details |
|---|
| Interface |
PCI Express 5.0 |
| SSD form factor |
2.5" |
| Market segment |
Server |
| Other features |
|---|
| Uncorrectable Bit Error Rate (UBER) |
< 1 per 10^17 bits read |
