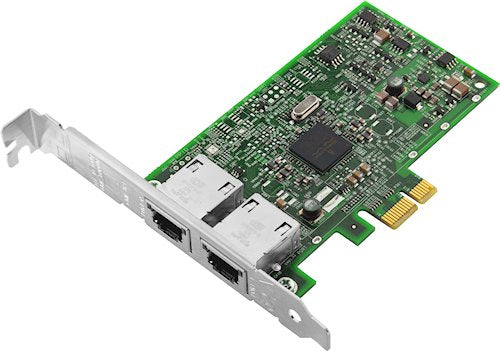

2x RJ45, 1Gb, PCIe 2.0, BCM5720
Key Features
- One, two, or four 10/100/1000 copper ports with RJ45 for Cat 5e/6 cabling
- Full line-rate performance across all ports
- Low-profile form factor - supported by the majority of System x and iDataPlex servers
- PCI Express 2.0 host interface (39Y6066 is PCI Express 1.1)
- Jumbo Frames support (9600 bytes frames)
- IEEE 802.1q VLAN support - provides enhanced network management and efficiency
- I/O virtualization (IOV) support for VMWare NetQueue and Microsoft VMQ - improves network performance in virtualized environments
- IEEE 802.3x flow control support
- Receive and transmit side scaling
- TCP, IP, and UDP checksum offload
- Message Signaled Interrupts (MSI) and MSI-X support - Maximizes server processing performance by reducing CPU overhead and lowering interrupt latency
- On-chip temperature monitor (NetXteme I only)
- IEEE 802.3az Energy Efficient Ethernet (EEE) compliant - Reduces adapter power consumption by up to 42% through intelligent adaptive power management, adjusting power based on data traffic load. (NetXtreme I only)
- IEEE 802.3z (Clause 30) - Statistics for SNMP MIB II, Ethernet like MIB, and Ethernet MIB (NetXtreme I only)
- IEEE 1588 Precision Time Control and 802.1AS time synchronization support - Provides greater accuracy of data packet delivery within the network (NetXtreme I only)
- Management using Broadcom Advanced Control Suite (BACS), Windows Management Instrumentation (WMI), and Broadcom Management API (BMAPI)
Description
The Broadcom NetXtreme Gigabit Ethernet Adapters are a family of high performance PCI Express adapters. The adapters are available with either two ports or four ports and are supported on ThinkSystem and System x servers.
This product guide provides essential presales information to understand the NetXtreme GbE offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
Specifications
| Ports & interfaces |
|---|
| Internal |
Yes |
| PCI version |
2.0 |
| Connectivity technology |
Wired |
| Host interface |
PCI Express |
| Interface |
Ethernet |
| Ethernet LAN (RJ-45) ports |
2 |
| PCI Card form factor |
Full-height (low-profile) |
| Bandwidth |
|---|
| Maximum data transfer rate |
1000 Mbit/s |
| Network |
|---|
| Ethernet interface type |
Gigabit Ethernet |
| Jumbo frames |
9600 |
| iSCSI support |
Yes |
| Maximum data transfer rate |
1000 Mbit/s |
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Cabling technology |
10/100/1000BaseT(X) |
| Networking standards |
IEEE 802.1Q, IEEE 802.3az |
| LAN controller |
Broadcom BCM5720 |
| Jumbo frames support |
Yes |
| Flow control support |
Yes |
| Design |
|---|
| Internal |
Yes |
| Product colour |
Green |
| Certification |
EN55022
EN55024
EN60950 / CE
EN 61000-3-2
EN 61000-3-3
ICES-003, Issue-004
IEC 950 CB Scheme
FCC 47 CFR Part 15 Class A
UL 1950
CSA C22.2 950-95
VCCI
AS/NZSCISPR 22 / C-tick
RRL for KC
BSMI
UL 94-/V |
| PCI Card form factor |
Full-height (low-profile) |
| LED indicators |
Yes |
| System requirements |
|---|
| Compatible operating systems |
Microsoft Windows Server 2008 HPC Edition, Windows 2008HPC
Microsoft Windows Server 2008 R2
Microsoft Windows Server 2008, Datacenter x64 Edition
Microsoft Windows Server 2008, Enterprise x64 Edition
Microsoft Windows Server 2008, Enterprise x86 Edition
Microsoft Windows Server 2008, Standard x64 Edition
Microsoft Windows Server 2008, Standard x86 Edition
Microsoft Windows Server 2008, Web x64 Edition
Microsoft Windows Server 2008, Web x86 Edition
Microsoft Windows Server 2012
Microsoft Windows Server 2012 R2
Microsoft Windows Server 2016
Microsoft Windows Small Business Server 2008 Premium Edition
Microsoft Windows Small Business Server 2008 Standard Edition
Red Hat Enterprise Linux 5 Server Edition
Red Hat Enterprise Linux 5 Server with Xen x64 Edition
Red Hat Enterprise Linux 5 Server x64 Edition
Red Hat Enterprise Linux 6 Server Edition
Red Hat Enterprise Linux 6 Server x64 Edition
Red Hat Enterprise Linux 7
SUSE LINUX Enterprise Server 10 for AMD64/EM64T
SUSE LINUX Enterprise Server 10 for x86
SUSE LINUX Enterprise Server 10 with Xen for AMD64/EM64T
SUSE LINUX Enterprise Server 11 for AMD64/EM64T
SUSE LINUX Enterprise Server 11 for x86
SUSE LINUX Enterprise Server 11 with Xen for AMD64/EM64T
SUSE LINUX Enterprise Server 12
VMware ESX 4.1
VMware ESXi 4.1
VMware vSphere 5.0 (ESXi)
VMware vSphere 5.1 (ESXi
VMware vSphere 5.5 (ESXi)
VMware vSphere 6.0 (ESXi) |
| Weight & dimensions |
|---|
| Width |
109 mm |
| Depth |
19 mm |
| Height |
69 mm |
| Technical details |
|---|
| Harmonized System (HS) code |
85176990 |
| Quantity per pack |
1 pc(s) |
| Compliance certificates |
RoHS |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
| Certificates |
|---|
| Certification |
EN55022
EN55024
EN60950 / CE
EN 61000-3-2
EN 61000-3-3
ICES-003, Issue-004
IEC 950 CB Scheme
FCC 47 CFR Part 15 Class A
UL 1950
CSA C22.2 950-95
VCCI
AS/NZSCISPR 22 / C-tick
RRL for KC
BSMI
UL 94-/V |
| Other features |
|---|
| Compatible operating systems |
Microsoft Windows Server 2008 HPC Edition, Windows 2008HPC
Microsoft Windows Server 2008 R2
Microsoft Windows Server 2008, Datacenter x64 Edition
Microsoft Windows Server 2008, Enterprise x64 Edition
Microsoft Windows Server 2008, Enterprise x86 Edition
Microsoft Windows Server 2008, Standard x64 Edition
Microsoft Windows Server 2008, Standard x86 Edition
Microsoft Windows Server 2008, Web x64 Edition
Microsoft Windows Server 2008, Web x86 Edition
Microsoft Windows Server 2012
Microsoft Windows Server 2012 R2
Microsoft Windows Server 2016
Microsoft Windows Small Business Server 2008 Premium Edition
Microsoft Windows Small Business Server 2008 Standard Edition
Red Hat Enterprise Linux 5 Server Edition
Red Hat Enterprise Linux 5 Server with Xen x64 Edition
Red Hat Enterprise Linux 5 Server x64 Edition
Red Hat Enterprise Linux 6 Server Edition
Red Hat Enterprise Linux 6 Server x64 Edition
Red Hat Enterprise Linux 7
SUSE LINUX Enterprise Server 10 for AMD64/EM64T
SUSE LINUX Enterprise Server 10 for x86
SUSE LINUX Enterprise Server 10 with Xen for AMD64/EM64T
SUSE LINUX Enterprise Server 11 for AMD64/EM64T
SUSE LINUX Enterprise Server 11 for x86
SUSE LINUX Enterprise Server 11 with Xen for AMD64/EM64T
SUSE LINUX Enterprise Server 12
VMware ESX 4.1
VMware ESXi 4.1
VMware vSphere 5.0 (ESXi)
VMware vSphere 5.1 (ESXi
VMware vSphere 5.5 (ESXi)
VMware vSphere 6.0 (ESXi) |
| Jumbo frames |
9600 |
| Flow control support |
Yes |
| Harmonized System (HS) code |
85176990 |
| Quantity per pack |
1 pc(s) |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
