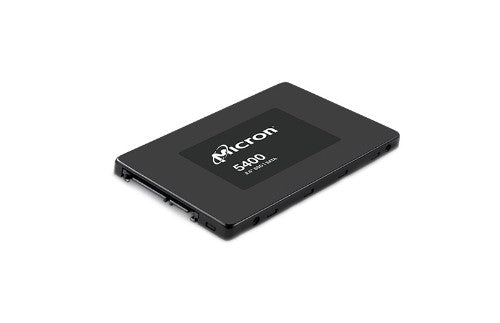

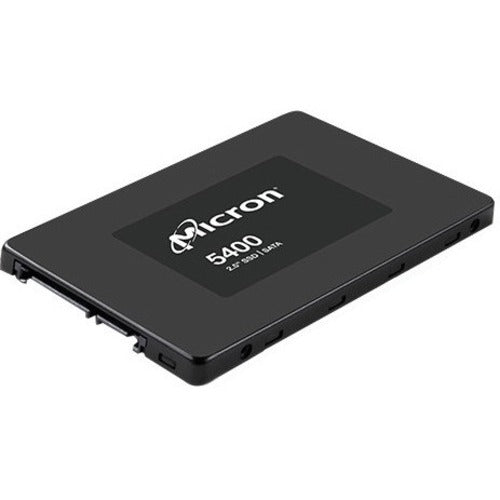

ThinkSystem 2.5" 5400 PRO 960GB Read Intensive SATA 6Gb HS
Description
The ThinkSystem 5400 PRO Read Intensive SATA 6Gb SSDs are general-purpose self-encrypting SSDs (SEDs) based on the Micron 5400 PRO platform and are available in capacities ranging from 240GB to 7.86TB. They are engineered for greater performance and endurance in a cost-effective design, and to support a broader set of workloads.
This product guide provides essential presales information to understand the 5400 PRO SSDs, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the 5400 PRO SSDs and consider their use in IT solutions.
Specifications
| Features |
|---|
| Interface |
Serial ATA III |
| Component for |
Server/workstation |
| SSD capacity |
960 GB |
| Read speed |
540 MB/s |
| Write speed |
520 MB/s |
| Memory type |
3D TLC NAND |
| Random read (4KB) |
95000 IOPS |
| Random write (4KB) |
33000 IOPS |
| Read latency |
170 µs |
| Write latency |
80 µs |
| S.M.A.R.T. support |
Yes |
| Hot-swap |
Yes |
| Mean time between failures (MTBF) |
3000000 h |
| Certification |
Micron Green Standard
Built with sulfur resistant resistors
CE (Europe): EN 55032 Class B, RoHS
UKCA (UK): SI 2016/1091 Class B and SI 2012/3032 RoHS
FCC: CFR Title 47, Part 15 Class B
UL/cUL: approval to UL-60950-1, 2nd Edition, IEC 60950-1:2005 (2nd Edition); EN 60950-1 (2006) + A11:2009+ A1:2010 + A12:2011 + A2:2013
BSMI (Taiwan): approval to CNS 13438 Class B and CNS 15663
RCM (Australia, New Zealand): AS/NZS CISPR32 Class B
KC RRA (Korea): approval to KN32 Class B, KN 35 Class B
W.E.E.E.: compliance with EU WEEE directive 2012/19/EC
TUV (Germany): approval to IEC60950/EN60950
VCCI (Japan): 2015-04 Class B
IC (Canada): ICES-003 Class B
Morocco: approval to EN55032/EN55024 Class B
UkrSEPRO (Ukraine): EN55032 Class B, IEC60950/EN60950, RoHS (Resolution 2017 No. 139) |
| SSD form factor |
2.5" |
| Compatible products |
ThinkSystem |
| Power |
|---|
| Power consumption (write) |
3.1 W |
| Power consumption (read) |
2.8 W |
| Performance |
|---|
| Interface |
Serial ATA III |
| Component for |
Server/workstation |
| SSD capacity |
960 GB |
| Read speed |
540 MB/s |
| Write speed |
520 MB/s |
| Memory type |
3D TLC NAND |
| Random read (4KB) |
95000 IOPS |
| Random write (4KB) |
33000 IOPS |
| Read latency |
170 µs |
| Write latency |
80 µs |
| S.M.A.R.T. support |
Yes |
| Hot-swap |
Yes |
| Mean time between failures (MTBF) |
3000000 h |
| Compatible products |
ThinkSystem |
| Design |
|---|
| Certification |
Micron Green Standard
Built with sulfur resistant resistors
CE (Europe): EN 55032 Class B, RoHS
UKCA (UK): SI 2016/1091 Class B and SI 2012/3032 RoHS
FCC: CFR Title 47, Part 15 Class B
UL/cUL: approval to UL-60950-1, 2nd Edition, IEC 60950-1:2005 (2nd Edition); EN 60950-1 (2006) + A11:2009+ A1:2010 + A12:2011 + A2:2013
BSMI (Taiwan): approval to CNS 13438 Class B and CNS 15663
RCM (Australia, New Zealand): AS/NZS CISPR32 Class B
KC RRA (Korea): approval to KN32 Class B, KN 35 Class B
W.E.E.E.: compliance with EU WEEE directive 2012/19/EC
TUV (Germany): approval to IEC60950/EN60950
VCCI (Japan): 2015-04 Class B
IC (Canada): ICES-003 Class B
Morocco: approval to EN55032/EN55024 Class B
UkrSEPRO (Ukraine): EN55032 Class B, IEC60950/EN60950, RoHS (Resolution 2017 No. 139) |
| SSD form factor |
2.5" |
| Weight & dimensions |
|---|
| Width |
70 mm |
| Depth |
100 mm |
| Height |
7 mm |
| Weight |
70 g |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Non-operating shock |
1500 G |
| Technical details |
|---|
| Interface |
Serial ATA III |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Non-operating shock |
1500 G |
| SSD form factor |
2.5" |
| Other features |
|---|
| Compatible products |
ThinkSystem |
