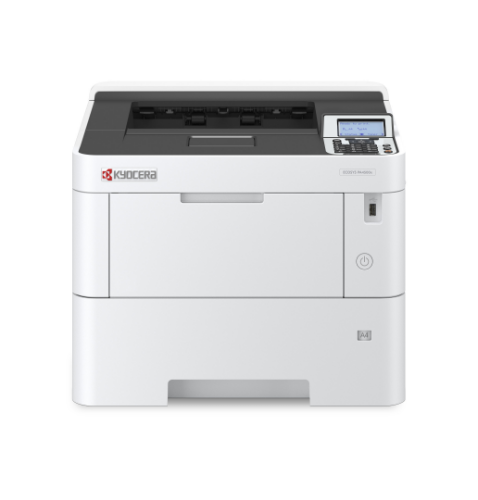

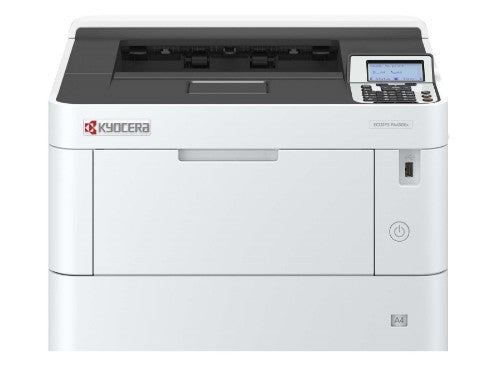

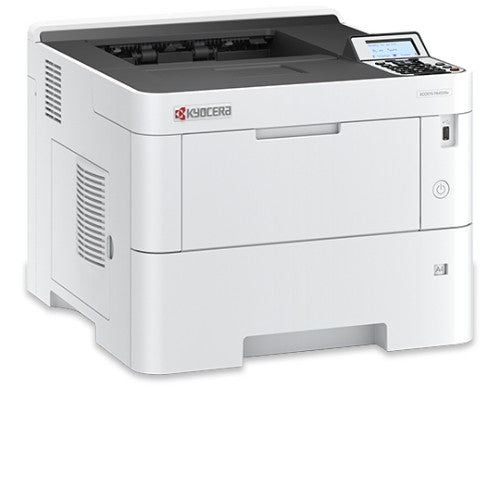

KYOCERA PA4500x 1200 x 1200 DPI A4

A4, 45 PPM, 1200 x 1200 DPI, LCD, Coretex-A53 1.4 GHz, 512 MB, RJ-45, USB 2.0, 220-240 V, 50/60 Hz

Key Features

• Up to 6 ways of paper input for max. 2,600 sheet capacity
• Strenghen affinity with Microsoft Universal Print
• Optional SSD hard disk with Data Security Kit
• Environmentally friendly: long-life components, low energy consumption

Description

The ECOSYS PA4500x is a powerful printer embedded with high-level security features. The rapid speed of up to 45 pages per minute contributes to the enhanced productivity of smaller workgroups. Thanks to long-life components and low energy consumption, leaves a smaller environmental footprint.

Specifications

Print technology
Print resolution black	1200 x 1200 DPI
Colour	No
Maximum resolution	1200 x 1200 DPI
Maximum duty cycle	150000 pages per month
Duplex printing	Yes
Number of print cartridges	1
Print technology	Laser
Recommended duty cycle	5000 - 20000 pages per month
Printing colours	Black
Duplex printing mode	Auto
Replacement cartridges	TK-3400
Number of printer fonts	93
Printer fonts	Barcode, Bitmap, PCL
Input capacity
Maximum input capacity	2600 sheets
Multi-Purpose tray input capacity	100 sheets
Paper input type	Cassette, Paper tray
Ports & interfaces
Bluetooth	No
USB port	Yes
USB connector	USB Type-A / USB Type-B
Standard interfaces	RJ-45, USB 2.0
USB 2.0 ports quantity	2
Optional connectivity	Ethernet, Parallel, Wireless LAN
Direct printing	Yes
Performance
Certification	GS, TÜV, CE
Windows operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Linux operating systems supported	Yes
Other operating systems supported	ChromeOS
Built-in processor	Yes
Processor model	Cortex-A53
Processor cores	2
Internal memory	512 MB
Processor family	ARM Cortex
Processor frequency	1400 MHz
Maximum internal memory	2500 MB
Compatible memory cards	SD, SDHC
Sound pressure level (printing)	54 dB
Sound power level (standby)	30 dB
Memory
Internal memory	512 MB
Maximum internal memory	2500 MB
Compatible memory cards	SD, SDHC
Processor
Built-in processor	Yes
Processor model	Cortex-A53
Processor cores	2
Processor family	ARM Cortex
Processor frequency	1400 MHz
Printing
Print resolution black	1200 x 1200 DPI
Print speed (black, normal quality, A4/US Letter)	45 ppm
Colour	No
Maximum resolution	1200 x 1200 DPI
Duplex printing	Yes
Print technology	Laser
Warm-up time	16 s
Time to first page (black, normal)	5.3 s
Duplex print speed (black, normal quality, A4/US Letter)	22.5 ppm
Duplex printing mode	Auto
Certificates
Certification	GS, TÜV, CE
Features
Colour	No
Duplex printing	Yes
Print technology	Laser
Duplex printing mode	Auto
Control type	Buttons
Maximum duty cycle	150000 pages per month
Number of print cartridges	1
Recommended duty cycle	5000 - 20000 pages per month
Printing colours	Black
Replacement cartridges	TK-3400
Number of printer fonts	93
Printer fonts	Barcode, Bitmap, PCL
Page description languages	Epson LQ, IBM ProPrinter, JPEG, OpenXPS, PCL 5e, PCL 6, PCL XL, PCLm, PDF, PWG, PostScript 3, TIFF, URF, XPS
Input & output capacity
Total number of input trays	1
Total input capacity	500 sheets
Total output capacity	250 sheets
Maximum input capacity	2600 sheets
Multi-Purpose tray input capacity	100 sheets
Paper input type	Cassette, Paper tray
Paper tray 1 input capacity	500 sheets
Multi-Purpose tray	Yes
Maximum number of input trays	5
Paper handling
Maximum ISO A-series paper size	A4
Multi-purpose tray media types	Legal, Letter
ISO A-series sizes (A0...A9)	A4, A5
ISO B-series sizes (B0...B9)	B5
Non-ISO print media sizes	Legal, Letter
Multi-Purpose Tray media weight	60 - 220 g/m²
Duplex media weight	60 - 120 g/m²
Custom media width	140 - 216 mm
Custom media length	210 - 356 mm
Maximum print size	216 x 356 mm
Paper tray media types	Plain paper
Paper tray media weight	60 - 120 g/m²
Network
Ethernet LAN	Yes
Wi-Fi	No
Network ready	Yes
Near Field Communication (NFC)	No
Security algorithms	HTTPS, IPPS, IPSec, SNMPv3
Mobile printing technologies	Apple AirPrint, Google Cloud Print, Kyocera Mobile Print, Mopria Print Service
Cabling technology	10/100/1000Base-T(X)
Bluetooth	No
Ethernet LAN data rates	10,100,1000 Mbit/s
Design
Colour display	No
Product colour	White
Built-in display	Yes
Display	LCD
Touchscreen	No
Display number of lines	5 lines
Certification	GS, TÜV, CE
Control type	Buttons
Market positioning	Business
Technical details
Sustainability certificates	Blue Angel, ENERGY STAR
Power
Power consumption (standby)	8.4 W
Power consumption (PowerSave)	0.5 W
Power consumption (printing)	605.5 W
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
System requirements
Windows operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Linux operating systems supported	Yes
Other operating systems supported	ChromeOS
Sustainability
Sustainability certificates	Blue Angel, ENERGY STAR
Weight & dimensions
Width	390 mm
Depth	416 mm
Height	308 mm
Weight	14.6 kg
Package width	549 mm
Package depth	494 mm
Package height	420 mm
Package weight	18.5 kg
Packaging data
Package width	549 mm
Package depth	494 mm
Package height	420 mm
Package weight	18.5 kg
Included cartridge capacity (black)	6000 pages
Cartridge(s) included	Yes
Cables included	AC
Packaging content
Included cartridge capacity (black)	6000 pages
Cartridge(s) included	Yes
Cables included	AC
Other features
Cabling technology	10/100/1000Base-T(X)
Cartridge(s) included	Yes
Power consumption (printing)	605.5 W
Control type	Buttons
