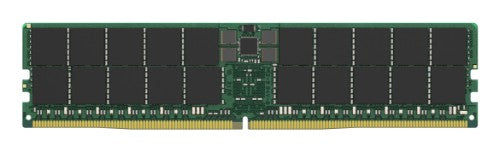

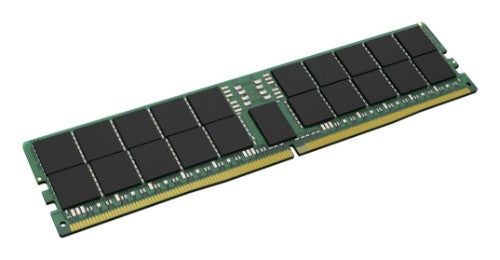

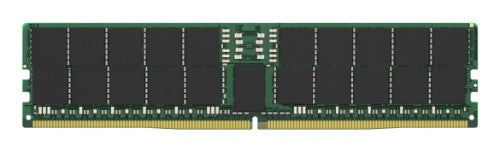

Kingston Technology KSM64R52BD4-64MD memory module 64 GB 1 x 64 GB DDR5 6400 MT/s 288-pin DIMM
SAVE 12%

Kingston Technology

Kingston Technology KSM64R52BD4-64MD memory module 64 GB 1 x 64 GB DDR5 6400 MT/s 288-pin DIMM

Read reviews
SKU: KSM64R52BD4-64MD
Your price $5,489.22
List price $6,254.87 Save $765.65
GST included · AUD
New Sealed in box Australian stock Warehouses in Sydney, Melbourne, Brisbane, Adelaide and Perth Delivery only - Pickup unavailable 2-5 Business days metro delivery. Australian manufacturer Warranty

In stock — ready to ship

Estimate shipping

Enter an Australian postcode for a quick estimate.

Final shipping options and price are confirmed at checkout.

  • Local Australian stock
  • Australian manufacturer warranty
  • GST included
  • Secure checkout

Need bulk pricing for schools or councils? Request a quote via Contact Us.

64GB, DDR5 6400MT/s, ECC, Registered, DIMM, CL52, x80, 2RX4, 1.1V, 288-pin, 16Gbit, Micron D

Key Features

  • On-Die ECC
  • x80 ECC (x40, 2 independent I/O sub channels)
  • 32 internal banks
  • Hard/Soft Post Package Repair
  • Sideband access with I3C/I2C
  • RoHS Compliant and Halogen-Free

Description

Kingston's KSM64R52BD4-64MD is a 8G x 80-bit (64GB) DDR5-6400 CL52 SDRAM (Synchronous DRAM), 2Rx4, ECC, memory module, based on forty 4G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-6400 timing of 52-52-52 at 1.1V. Each 288-pin DIMM uses gold contact fingers.

Specifications

Design
JEDEC standard Yes
Memory
Buffered memory type Registered (buffered)
Internal memory 64 GB
Internal memory type DDR5
Component for PC/Server
ECC No
Memory layout (modules x size) 1 x 64 GB
Memory form factor 288-pin DIMM
CAS latency 52
Memory voltage 1.1 V
Lead plating Gold
Module configuration 8192M x 80
Row cycle time 48 ns
Refresh row cycle time 295 ns
Row active time 32 ns
SPD profile Yes
Memory ranking 2
Programming power voltage (VPP) 1.8 V
Features
On-Die ECC Yes
Buffered memory type Registered (buffered)
Internal memory 64 GB
Internal memory type DDR5
Component for PC/Server
ECC No
Memory layout (modules x size) 1 x 64 GB
Memory form factor 288-pin DIMM
CAS latency 52
Memory voltage 1.1 V
Lead plating Gold
Module configuration 8192M x 80
Row cycle time 48 ns
Refresh row cycle time 295 ns
Row active time 32 ns
SPD profile Yes
Memory ranking 2
Programming power voltage (VPP) 1.8 V
JEDEC standard Yes
Memory data transfer rate 6400 MT/s
Operational conditions
Operating temperature (T-T) 0 - 95 °C
Storage temperature (T-T) -55 - 100 °C
Technical details
Doesn't contain Halogen
Compliance certificates RoHS
Sustainability
Doesn't contain Halogen
Compliance certificates RoHS
Weight & dimensions
Width 133.3 mm
Height 31.2 mm
Other features
Doesn't contain Halogen
Brand
Kingston Technology
SKU
KSM64R52BD4-64MD
