SD5010T5 EQ Thunderbolt™ 5 Triple 4K Docking Station
Key Features
- Data transfer speeds up to 80Gbps.
- andwidth Boost up to 120Gbps for video-intensive usage.
- Up to Triple 4K or Dual 8K for Windows or Dual 6K+4K for macOS.**** A Thunderbolt 5 dock can support three external displays with M5 Pro and M5 Max chips.
- Up to 140W dynamic Power Delivery.
- Built-in SD and Micro SD card readers.
- Compatible with Thunderbolt™ 5, Thunderbolt™ 4, USB4® and USB-C® devices.
- Windows and macOS compatible.
- Outer case contains 100% post-consumer recycled (PCR) aluminium.
- Zero-footprint mounting option.
- Security cable lock slots.
- Free Kensington DockWorks™ software.
- 3-year limited warranty.
- Ethernet performance on Apple devices reached approximately 1.6 Gbps during testing.
Description
Boost Your Productivity with Thunderbolt™ 5SD5010T5 offers lightning-fast data transfers, achieving speeds up to 80Gbps with Bandwidth Boost providing up to 120Gbps for video-intensive usage.
Triple 4K or Dual 8K for Windows and Dual 6K+4K for macOS**For Windows laptops supports up to 3 x 4K monitors @ 144Hz or 2 x 8K monitors @ 60Hz/30Hz via 2 x HDMI® ports and 1 x Thunderbolt™ 5 port. For MacBook models with M4/M5 base chips* and M-Series Pro and Max chipsets, SD5010T5 supports 2 x 4K @ 60Hz via 2 x HDMI® ports, or switch one of the displays to up to 6K through the Thunderbolt™ 5 port.*** M1/M2 base chips support a single external display only. M3 base supports two external displays with the lid closed.*** A Thunderbolt 5 dock can support three external displays with only M5 Pro and M5 Max chips.
Up to 140W Dynamic Power Delivery + KonstantCharge™Perfect for demanding workstations, SD5010T5 supports USB-C® PD 3.1, ensuring seamless power and connectivity with up to 140W dynamic power delivery. Includes KonstantCharge™, enabling connected devices to charge even when your laptop is undocked.

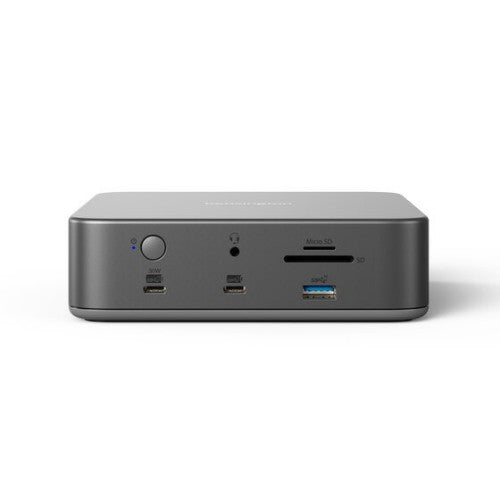

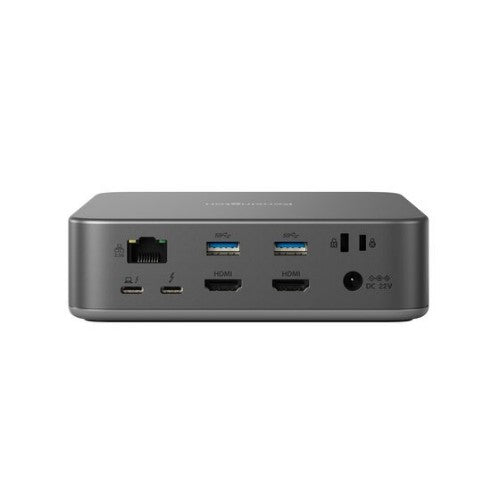

13-in-1 DesignA single Thunderbolt™ 5 cable expands your connectivity: 2 x Thunderbolt™ 5 (host + 15W downstream), 2 x HDMI®, 1 x USB-A 3.2 Gen2 10Gbps, 2 x USB-A 3.2 Gen1 5Gbps, 2 x USB-C® Gen2 10Gbps (1 x 30W), an audio combo jack, 2 x SD/Micro SD 4.0 slots and a 2.5Gbps Ethernet port.
Built-in SD and Micro SD Card ReadersPerfect for graphic designers, video editors and animators requiring fast and efficient data transfer speeds, SD5010T5 transfers files at ultra-fast speeds via built-in SD and Micro SD 4.0 card*readers.
Universal CompatibilityOffers a quick and powerful plug-and-play solution for Thunderbolt™ 5, Thunderbolt™ 4, USB4® and USB-C® devices running Windows 11 (23H2 or later) or macOS (14.5 or later).
Zero-Footprint Mounting Option and Security Cable Lock SlotsMaximise desktop space by mounting your docking station out of the way. Protect your investment with a Kensington cable lock (K65020EU or K65021WW), sold separately.
Free Kensington DockWorks™ Software and 3-Year Limited WarrantyFree DockWorks™ software for Windows users delivers the best connection, performance and security from your Kensington dock. Backed by Kensington with a 3-year limited warranty.
Sustainability AttributesThe outer case of this docking station contains 100% post-consumer recycled (PCR) aluminium and is delivered in Forest Stewardship Council (FSC®) certified packaging.
Professionals can struggle to fully unlock the potential of their high‑performance Thunderbolt™ 5 laptops, particularly when connecting multiple high‑resolution HDMI® monitors without relying on dongles or adapters. The SD5010T5 Thunderbolt™ 5 Triple 4K Docking Station provides a powerful, all‑in‑one solution designed to elevate productivity. SD5010T5 supports multiple 4K displays for immersive visual workflows. Ultra‑fast data transfer speeds make working with large files effortless, while a wide range of ports simplifies peripheral connectivity. Enhanced power delivery ensures reliable performance for demanding setups. Purpose‑built for demanding professionals, the SD5010T5 turns a Thunderbolt™ 5 laptop into a fully connected, high‑performance desktop environment.
Specifications
| Ports & interfaces |
|---|
| Combo headphone/mic port |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| Connectivity technology |
Wired |
| Host interface |
Thunderbolt 5 |
| HDMI ports quantity |
1 |
| Headphone outputs |
1 |
| Headphone connectivity |
3.5 mm |
| DC-in jack |
Yes |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery revision |
3.1 |
| USB Power Delivery up to |
140 W |
| Thunderbolt 5 ports quantity |
1 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Performance |
|---|
| Number of displays supported |
3 |
| Product colour |
Grey |
| On/off switch |
Yes |
| Card reader integrated |
Yes |
| Compatible memory cards |
SD, MicroSD (TransFlash) |
| Cable lock slot |
Yes |
| Plug and Play |
Yes |
| Data transfer rate |
120 Gbit/s |
| Cable lock slot type |
Kensington, Nano |
| HD type |
8K Ultra HD |
| Housing material |
Aluminium |
| Storage |
|---|
| Card reader integrated |
Yes |
| Compatible memory cards |
SD, MicroSD (TransFlash) |
| Software |
|---|
| Windows operating systems supported |
Windows 11 |
| Mac operating systems supported |
Mac OS 14.5 |
| Design |
|---|
| Windows operating systems supported |
Windows 11 |
| Mac operating systems supported |
Mac OS 14.5 |
| Product colour |
Grey |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington, Nano |
