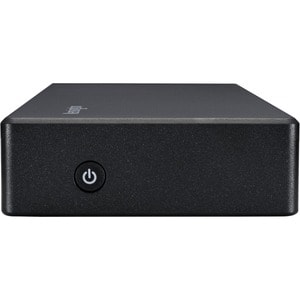

Kensington SD4850P Wired USB 3.2 Gen 2 (3.1 Gen 2) Type-C Black

5 x USB-A 3.2 Gen2, 4 x USB-A 3.2 Gen1, 1 x USB-C 3.2 Gen2, 1 x 3.5mm, 2 x DisplayPort, 1 x HDMI, 10/100/1000 Ethernet, 4K max, 100W max,

Key Features

• Best For: Windows OS (7 or above) laptop with a USB-C port supporting DisplayPort Alt Mode and Power Delivery
• Connection Technology: USB-C
• Power Delivery: Supports up to 100W of Power Delivery (PD 3.0)
• Compatibility: Compatible with Windows 7 or above laptops with a USB-C port supporting DisplayPort Alt Mode and Power Delivery
• of Monitors Supported: 2
• Video Ports: 2 x DisplayPort++ ports and 1 x HDMI port
• Maximum Resolution Supported: Single 4K @ 60Hz, Dual 4K @ 60Hz, and Triple 4K at 60Hz when connected to a DP1.4 HBR3 device
• Plug & Play: Plug & play installation, though installation of Kensington DockWorks™ software is recommended for the best connection, performance, and security from your Kensington universal docking station
• System Requirements: Driverless — no firmware or software required for setup
• USB-C Microsoft Devices: We are aware of a general USB-C compatibility issue between USB-C docking stations (not only those from Kensington) and USB-C based Microsoft devices. The issue results in a lack of consistent charging and video output to your USB-C Microsoft device. If you would like to contact us to be updated when a fix is in place, please reach out to our Tech Support team

Description

The SD4850P USB-C 10Gbps Dual Video Driverless Docking Station - 100W PD - DP++/HDMI - Windows is the top-of-the-line USB-C driverless dock for any Windows OS laptop with a USB-C port supporting DisplayPort Alt Mode and Power Delivery. One connection expands your Windows 7 or above laptop into a fully powered yet streamlined desktop setup supporting up to Dual 4K via a 13-in-1 design complete with 6 USB-ports.

Driverless, USB-C Connectivity with 10Gbps Data Transfer Speed and 100W Power Delivery (PD 3.0)
No driver installation required to access 10Gbps Data Transfer Speed and 100W Power Delivery (PD 3.0). The best docking station for all Windows OS laptops with a USB-C port supporting DisplayPort Alt Mode and Power Delivery.

Numerous Video Ports
With two DisplayPort++ ports and one HDMI port, the user can select the right connections and resolutions for their needs — an optional USB-C Alt Mode can be used in place of one DP++ port. Resolutions supported vary by the device connected (see manual or specifications table for more information).

Dynamic Video Support
Supports a minimum resolution of Single 4K @ 30Hz, Dual 1080p @ 60Hz, and Triple 1600x900 @ 60Hz when connected to a DP1.2/HBR2 device and a maximum resolution of Single 4K @ 60Hz, Dual 4K @ 60Hz, and Triple 4K at 60Hz when connected to a DP1.4 HBR3 device. A dynamic 4K switch allows you to toggle between modes, prioritizing resolution over USB, Ethernet, and SD Card speeds. See manual or specifications table for more information.

Universal Windows Compatibility
A windows dock that connects seamlessly to any laptop running Windows 7 and above.

13-in-1 design with 6 USB-ports
Complete with 6 USB-ports that give full power to your laptop and devices. Its front side features one USB-C 3.2 Gen2 port up to 5V/3A/10Gbps, one USB-A 3.2 Gen2 port up to 5V/2.4A/10Gbps, a combo audio port, and a UHS II SD 4.0 Memory Card Reader. Its rear features four USB-A 3.2 Gen1 ports up to 5V/0/9A/5Gbps, a Gigabit Ethernet port, and four video ports: two DP++ ports, one HDMI port, and one USB-C port.

UHS II SD 4.0 Memory Card Reader
Eliminates the need for additional adapters and accessories to transfer large hi-res photos and video footage at ultra-fast speeds.

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Connectivity technology	Wired
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.0
DisplayPorts quantity	2
Headphone outputs	1
DC-in jack	Yes
USB Power Delivery	Yes
USB Power Delivery revision	3.0
USB Power Delivery up to	100 W
DisplayPort version	1.4
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Number of displays supported	2
Product colour	Black
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC
Cable lock slot	Yes
Plug and Play	Yes
Data transfer rate	10 Gbit/s
Cable lock slot type	Kensington
HD type	4K Ultra HD
Maximum refresh rate	60 Hz
Storage
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Design
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Product colour	Black
Cable lock slot	Yes
Cable lock slot type	Kensington
Packaging content
Cables included	USB Type-C to USB Type-C
AC adapter included	Yes
