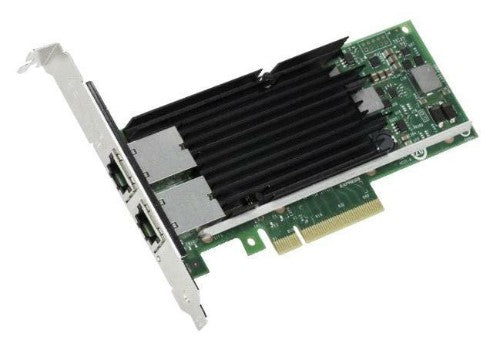

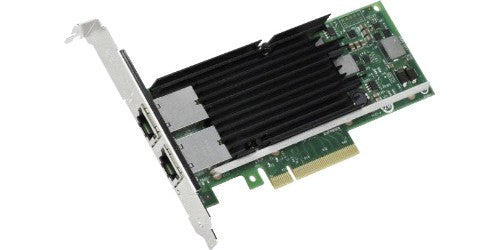

Intel X540T2 network card Internal Ethernet 10000 Mbit/s

Ethernet Converged Network Adapter X540-T2

Description

10GBASE-T Converged Network Adapter Simplifies Migration to 10GbE
Provides iSCSI, FCoE, Virtualization, and Flexible Port Partitioning

10 Gigabit for the Broad Market

The Intel® Ethernet Converged Network Adapter X540-T2 is the latest innovation in Intel’s leadership to drive 10 Gigabit Ethernet into the broader server market. This adapter hosts Intel’s latest Ethernet silicon, the Intel® Ethernet Controller X540, which is used by many OEMs as a single chip solution for LAN on Motherboard (LOM) to deliver 10 Gigabit Ethernet (10 GbE) on the latest server platforms.

10GBASE-T Simplifies the Transition to 10GbE
The X540 family of products works with existing networks today. It works with legacy Gigabit Ethernet (GbE) switches and CAT-6a cabling. Install the X540 adapter into a server and the auto-negotiation between 1 GbE and 10 GbE provides the necessary backwards compatibility that most customers require for a smooth transition and easy migration to 10 GbE. When time and budget allows, 10GBASE-T switches can be added any time to experience the full benefits of 10 GbE.

10GBASE-T uses the copper twisted pair cables that are very familiar to IT professionals today. It is everything you know and love about 1000BASE-T. The knowledge, training and investment in BASE-T are preserved. 10GBASE-T is the easiest and most versatile 10 GbE and you can deploy it anywhere in your data center. Its flexible reach from 1 meter to 100 meters supports the latest network architectures including Top of Rack (ToR), Middle of Row (MoR), and End of Row (EoR).

10G Performance at Low Cost and Low Power
The new Intel® Ethernet Converged Network Adapter X540-T2 is the lowest cost way to deploy 10 GbE in your data center today. The X540-T2 uses low cost, CAT-6 and CAT-6a cabling. Chances are this cabling already exists in the data center.

Specifications

Ports & interfaces
Internal	Yes
PCI version	2.1
Connectivity technology	Wired
Host interface	PCI Express
Interface	Ethernet
Ethernet LAN (RJ-45) ports	2
PCI Card form factor	Half-height (low-profile)
Bandwidth
Maximum data transfer rate	10000 Mbit/s
Network
Chipset	X540
Maximum data transfer rate	10000 Mbit/s
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000,10000 Mbit/s
Networking standards	IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ad
Quality of Service (QoS) support	Yes
Maximum operating distance	100 m
LAN controller	Intel® X540
Antenna
Quality of Service (QoS) support	Yes
Design
Internal	Yes
Chipset	X540
PCI Card form factor	Half-height (low-profile)
Product family	Intel 10 Gigabit server adapter
Product series	500 Series Network Adapters (up to 10GbE)
System requirements
Compatible operating systems	https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Performance
Ethernet adapter ARK ID	58954
Thermal power	13.4 W
Speed & slot width	5.0 GT/s, x8 Lane
PCI-SIG* SR-IOV Capable	Yes
On-chip QoS and Traffic Management	Yes
iWARP/RDMA	No
Intelligent Offloads	Yes
Intel® Virtualization Technology (Intel® VT)	VT-c
Intel Virtual Machine Device Queues (VMDq)	Yes
Intel Flexible Port Partitioning	Yes
Intel Ethernet Power Management	No
Intel Data Direct I/O Technology	Yes
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Technical details
Harmonized System (HS) code	8517620090
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	G135872
Thermal Design Power (TDP)	13.4 W
Product type	Network Interface Card
Number of QPI links	Dual
Status	Launched
Product name	Intel Ethernet Converged Network Adapter X540-T2
Product brief URL	http://www.intel.com/content/www/us/en/network-adapters/10-gigabit-network-adapters/ethernet-x540-t2-brief.html
Network interface card type	Server
Network interface card cable medium	Copper
Market segment	Server
Launch date	Q1'12
Born on date	Q1'12
Last change	64826822
Other features
Chipset	X540
Compatible operating systems	https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html
Thermal Design Power (TDP)	13.4 W
Product type	Network Interface Card
Number of QPI links	Dual
Ethernet adapter ARK ID	58954
Cable type	RJ45 Category 6 up to 55 m; Category 6A up to 100 m
Thermal power	13.4 W
Speed & slot width	5.0 GT/s, x8 Lane
PCI-SIG* SR-IOV Capable	Yes
On-chip QoS and Traffic Management	Yes
Low halogen options available	No
iWARP/RDMA	No
Interface type	PCIe v2.1 (5.0 GT/s)
Intelligent Offloads	Yes
Intel Virtualization Technology for Connectivity (VT-c)	Yes
Intel® Virtualization Technology (Intel® VT)	VT-c
Intel Virtual Machine Device Queues (VMDq)	Yes
Intel Flexible Port Partitioning	Yes
Intel Ethernet Power Management	No
Intel Data Direct I/O Technology	Yes
Storage Over Ethernet	iSCSI, FCoE, NFS
Status	Launched
Product name	Intel Ethernet Converged Network Adapter X540-T2
Product brief URL	http://www.intel.com/content/www/us/en/network-adapters/10-gigabit-network-adapters/ethernet-x540-t2-brief.html
Network interface card type	Server
Network interface card cable medium	Copper
Market segment	Server
Launch date	Q1'12
Born on date	Q1'12
Last change	64826822
Product family	Intel 10 Gigabit server adapter
Product series	500 Series Network Adapters (up to 10GbE)
Harmonized System (HS) code	8517620090
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	G135872
Controller type	Intel® Ethernet Controller X540
Cabling type	RJ45 Category 6 up to 55 m; Category 6A up to 100 m
Bracket height	Low-Profile (LP) / Full-Height (FH)
Logistics data
Harmonized System (HS) code	8517620090
