Networking Instant On Outdoor Access Point Dual Radio 2x2 Wi-Fi 6 (RW) AP27
Reasons To Buy
Built to Withstand the Elements
The HPE Networking Instant On Access Point AP27 is water- and dust-resilient built to IP67 standards that make it suitable for outdoor use
The hardened outer shell is capable of withstanding the bitter cold and harsh temperatures of all seasons.
An operating temperature as low as -40°C and as high as 60°C makes the AP27 ideal for any environment.
Create a Custom Guest Access Experience
HPE Networking Instant On Access Point AP27 creates a new avenue of revenue by providing connectivity to customers and employees in outside spaces
Guests and Employees experience quick and easy onboarding with the free-to-setup captive portal from the Instant On app, or a web portal.
Keep customers engaged and staying longer with easy and intuitive guest access and be sure employees are more productive with any time wireless access.
802.11ax Wi-Fi Certified 6
The HPE Networking Instant On Access Point AP27 features Orthogonal Frequency-Division Multiple Access (OFDMA) which allows access points to handle multiple Wi-Fi 6 capable clients on each channel simultaneously, improving efficiency by boosting overall capacity and reducing latency.
Target Wake Time (TWT): Ideal for IoT devices that communicate infrequently, TWT establishes a schedule for when clients need to communicate with an AP, thereby reducing power consumption and extending client battery life.
Multiple Input, Multiple Output (MIMO) allows the access point to serve multiple clients (Wi-Fi 5 and Wi-Fi 6) simultaneously.
Description

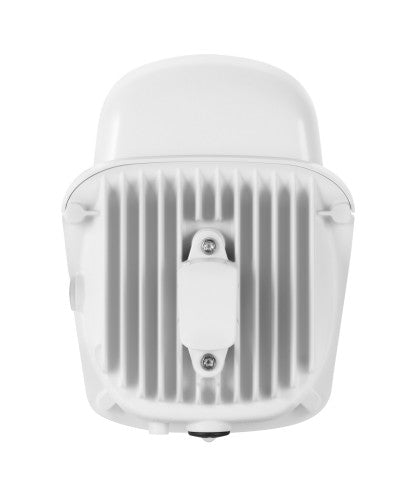

The HPE Networking Instant On Access Point AP27 is a dual radio outdoor access point designed to keep your employees and customers productive outdoors. This Wi-Fi CERTIFIED 6™ access point supports up to 75 simultaneous users and offers modern Wi-Fi standards in a robust, tough casing. These dual-band omni-directional radios offer impressive range and the same great features as other enterprise-class access points, but without any ongoing subscription fees. The AP27 features integrated wall- or pole-mounting brackets in a ruggedized casing for flexible mounting configurations in outdoor environments. The AP27 offers Power over Ethernet (PoE) 802.3af (Class 4) with a fully-integrated management experience in the Instant On mobile app or web portal.
What is new supporting point:
Wi-Fi CERTIFIED 6™ support for up to 75 user devices.
Provide Wi-Fi for the outdoors.
IP67 rated for outdoor use from -40°C to 60°C.
The hardened external shell protects from rain, wind, and dust.
Great at extending Wi-Fi to a patio, outdoor workspace, or curbside deliveries.
Introducing new TEC Certified SKU (S3U62A) for India
Specifications
| Performance |
|---|
| 2.4 GHz |
Yes |
| 5 GHz |
Yes |
| Maximum data transfer rate |
1774 Mbit/s |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Spread spectrum method |
OFDMA |
| Number of users |
75 user(s) |
| Networking standards |
IEEE 802.11ax |
| Certification |
Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3 |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| Features |
|---|
| 2.4 GHz |
Yes |
| 5 GHz |
Yes |
| Maximum data transfer rate |
1774 Mbit/s |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Spread spectrum method |
OFDMA |
| Number of users |
75 user(s) |
| Networking standards |
IEEE 802.11ax |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| Maximum data transfer rate (2.4 GHz) |
574 Mbit/s |
| Maximum data transfer rate (5 GHz) |
1200 Mbit/s |
| Trusted Platform Module (TPM) |
Yes |
| Security |
|---|
| Security algorithms |
OWE, WPA2, WPA3 |
| Ports & interfaces |
|---|
| USB 2.0 ports quantity |
0 |
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
|---|
| Power consumption (typical) |
14.6 W |
| Power over Ethernet (PoE) |
Yes |
| Design |
|---|
| Placement |
Ceiling, Pole, Wall |
| Product colour |
White |
| Cable lock slot |
Yes |
| Certification |
Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3 |
| Cable lock slot type |
Kensington |
| Antenna |
|---|
| Antenna type |
Internal |
| Antennas quantity |
2 |
| Antenna direction type |
Omni-directional |
| Certificates |
|---|
| Certification |
Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3 |
| Weight & dimensions |
|---|
| Width |
180 mm |
| Depth |
232 mm |
| Height |
120 mm |
| Weight |
1.17 kg |
| Other features |
|---|
| Mounting |
Wall-mount bracket |
| I/O ports |
1 GbE Base-T uplink port LED status indicators Reset button Kensington security slot |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-40 - 65 °C |
