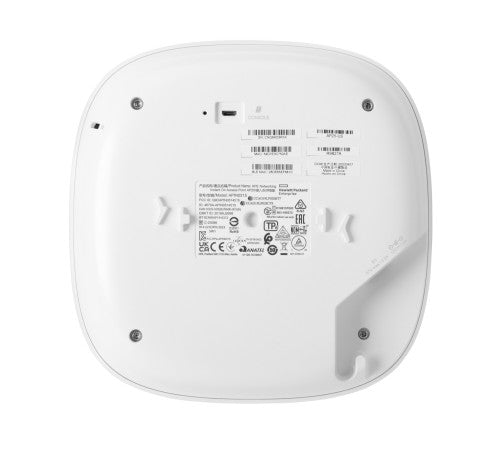

Networking Instant On Indoor Access Point Wi-Fi 6 4x4 (RW) AP25
Reasons To Buy
Incredible Efficiency with Wi-Fi 6
The HPE Networking Instant On Access Points AP25 supports the Wi-Fi 6 standard, including features such as orthogonal frequency-division multiple access (OFDMA) and Multi-User MIMO (MU-MIMO), and Target Wait Time (TWT).
HPE Networking Instant On Access Points AP25 support features Target Wake Time (TWT) that helps establish a schedule when clients need to communicate with an access point improving efficiency for longer battery life.
The HPE Networking Instant On Access Points AP25 are 100% backward compatible, allowing businesses to support multiple clients (Wi-Fi 6) and legacy (11a/b/g/n/ac) at the same time.
Higher Performance and Superior Coverage
The HPE Networking Instant On Access Points AP25 delivers higher capacity, efficiency, and performance to small and growing businesses with device-dense environments.
High-performance HPE Networking Instant On Access Points AP25 brings powerful 4 spatial streams for superior Wi-Fi coverage.
Performance benefits of Orthogonal Frequency Division Multiple Access (OFDMA) are improved, meaning increased network performance and network capacity.
160 MHz channel bandwidth delivers increased mesh throughput and Wi-Fi speed ideal for high-def video streaming and virtual reality devices.
2.5 Gigabit Ethernet uplink port enhances wireless connectivity.
Safeguard Sensitive Data with WPA2/WPA3 and Enhanced Open
HPE Networking Instant On Access Points AP25 comes with integrated Wi-Fi Alliance security standard WPA2/WPA3 and Enhanced Open support for protected wireless access.
HPE Networking Instant On Access Points AP25 features integrated router, gateway, and firewall functionality.
HPE Networking Instant On Access Points AP25 supports Two-Factor Authentication (2FA) for additional layer of authentication, preventing attackers from remotely accessing your networks.
Create up to eight different SSIDs under one network name to keep your data safe, whether surfing the web or checking HR data.
Description
Wi-Fi Certified 6TM HPE Networking Instant On Access Points AP25 delivers faster Wi-Fi speeds, greater capacity, and reduced latency between access points and devices for a superior Wi-Fi experience. With the AP25, you can upgrade your Wi-Fi network to boost performance across devices now, while preparing it for more mobile and IoT devices in the future. Features include Orthogonal frequency-division multiple access (OFDMA), multi-user MIMO, and target wake time (TWT). With up to 4 spatial streams (4SS) and 160 MHz channel bandwidth (HE160), the Instant On AP25 provides outstanding wireless capabilities for businesses looking to future-proof their networks.
What is new supporting point:
Instant On mobile app and/or cloud-based web portal allows for easy network management onsite or remotely
Provides a high performance Dual Radio 802.11ax AP with 4 spatial streams (4X4) for higher capacity and coverage
This series features maximum data rates of 4.8 Gbps in the 5 GHz band and 574 Mbps in the 2.4 GHz band (for an aggregate peak data rate of 5.3 Gbps)
Support for WPA2/WPA3 protected employee and guest login with Enhanced Open for per user guest access
Includes 2.5 Gigabit Ethernet uplink port and 160 MHz channel bandwidth for increased wireless throughput
Wi-Fi 6 certification supports all mandatory 802.11ax features that include MU-MIMO, OFDMA, TWT, and more
Specifications
| Performance |
|---|
| 2.4 GHz |
Yes |
| 5 GHz |
Yes |
| Maximum data transfer rate |
4800 Mbit/s |
| Ethernet LAN data rates |
2500 Mbit/s |
| Number of users |
100 user(s) |
| Web-based management |
Yes |
| Reset button |
Yes |
| Networking standards |
IEEE 802.11ax |
| Certification |
Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3 |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| Features |
|---|
| 6 GHz |
No |
| 2.4 GHz |
Yes |
| 5 GHz |
Yes |
| Maximum data transfer rate |
4800 Mbit/s |
| Ethernet LAN data rates |
2500 Mbit/s |
| Number of users |
100 user(s) |
| Networking standards |
IEEE 802.11ax |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| Maximum data transfer rate (2.4 GHz) |
574 Mbit/s |
| Maximum data transfer rate (5 GHz) |
4800 Mbit/s |
| Bluetooth Low Energy (BLE) |
Yes |
| Security |
|---|
| Security algorithms |
OWE, WPA2, WPA3 |
| Management features |
|---|
| Web-based management |
Yes |
| Ports & interfaces |
|---|
| USB 2.0 ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| DC-in jack |
Yes |
| Power |
|---|
| Power consumption (max) |
20.1 W |
| Power over Ethernet (PoE) |
Yes |
| DC voltage range |
12 V |
| Design |
|---|
| Placement |
Ceiling, Wall |
| Reset button |
Yes |
| Product colour |
White |
| Cable lock slot |
Yes |
| Certification |
Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3 |
| Cable lock slot type |
Kensington |
| Antenna |
|---|
| Antenna type |
Internal |
| Antenna gain level (max) |
4.5 dBi |
| Antenna direction type |
Omni-directional |
| Technical details |
|---|
| Harmonized System (HS) code |
85176990 |
| Certificates |
|---|
| Certification |
Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3 |
| Weight & dimensions |
|---|
| Width |
203 mm |
| Depth |
45 mm |
| Height |
51 mm |
| Weight |
1.18 kg |
| Other features |
|---|
| Mounting |
Ceiling/Wall mount clip |
| I/O ports |
1x 2.5 GbE Base-T uplink port DC power connector Bluetooth Low Energy (BLE) LED status indicators Reset/LED control button Kensington security slot |
| Weight (imperial) |
1.18 kg (2.6 lbs) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
