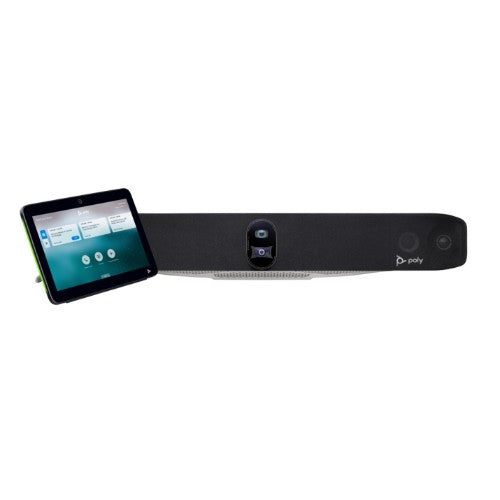

Poly Studio X70 All-In-One Video Bar with TC10 Controller Kit
Key Features
- Ready for your close-up? This all-in-one video bar transitions seamlessly between wide and narrow-angle cameras, showing everyone in your large meeting spaces in sharp detail.

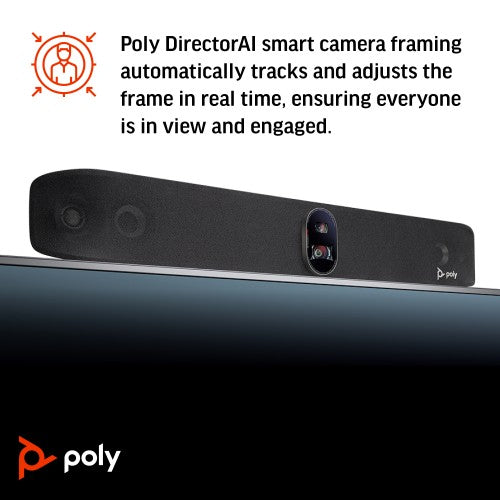

- Keep your eye on the action with Poly DirectorAI intelligent camera framing and NoiseBlockAI technology — all powered by machine learning. Get advanced vocal pickup from our next gen microphones. Easily share content over wired or wireless connections.
Reasons To Buy
Crystal clear video
Ready for your close-up? This all-in-one video bar transitions seamlessly between wide and narrow-angle cameras, showing everyone in your large meeting spaces in sharp detail.
Production-quality performance
Keep your eye on the action with Poly DirectorAI intelligent camera framing and NoiseBlockAI technology — all powered by machine learning. Get advanced vocal pickup from our next gen microphones. Easily share content over wired or wireless connections.
Description
Enable meeting equalityThe Poly Studio X70, all-in-one video bar, offers quality audio and video performance in large meeting spaces. Enjoy pinpoint-accurate automatic framing and tracking modes, distraction-free audio technology, and lifelike 4K UltraHD video.
Specifications
| Performance |
|---|
| Product type |
Group video conferencing system |
| Product colour |
Black |
| Wall mountable |
Yes |
| Auto framing |
Yes |
| Tracking modes |
Presenter mode |
| Meeting features |
Whiteboard |
| Technical details |
|---|
| Product type |
Group video conferencing system |
| Product colour |
Black |
| Wall mountable |
Yes |
| Pallet gross weight |
357 kg |
| General Product Safety Regulation (GPSR) URL |
https://kaas.hpcloud.hp.com/pdf-public/pdf_11006260_en-US-1.pdf |
| Video |
|---|
| HD type |
4K Ultra HD |
| Megapixel (approx.) |
20 MP |
| Digital zoom |
7.3x |
| Video formats supported |
AVC, H.264, H.265 |
| Supported video modes |
720p, 1080p, 2160p |
| Supported graphics resolutions |
800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 3840 x 2160 |
| Maximum video resolution |
3840 x 2160 pixels |
| Audio |
|---|
| Speaker power |
20 W |
| Voice codecs |
G.711, G.719, G.722, G.722.1, G.728, G.729A |
| RMS rated power |
40 W |
| Built-in speaker(s) |
Yes |
| Number of speakers |
2 |
| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Line-out |
Yes |
| USB connector type |
USB Type-A, USB Type-C |
| HDMI ports quantity |
3 |
| Line-in |
Yes |
| Ethernet LAN (RJ-45) ports |
2 |
| HDMI output ports quantity |
2 |
| HDMI input ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Wi-Fi |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Supported network protocols |
IPv4, IPv6 |
| Security algorithms |
128-bit AES, 256-bit AES, FIPS 140-2, SSL/TLS |
| Camera |
|---|
| Horizontal field of view |
120° |
| Megapixel (approx.) |
20 MP |
| Digital zoom |
7.3x |
| Diagonal field of view |
140° |
| Camera type |
Dual camera |
| Second camera resolution |
20 MP |
| Zoom capability |
Yes |
| Display |
|---|
| Display diagonal |
20.3 cm (8") |
| Display resolution |
1280 x 800 pixels |
| Microphone |
|---|
| Number of microphones |
4 |
| Features |
|---|
| Cable lock slot |
Yes |
| Logistics data |
|---|
| Pallet gross weight |
357 kg |
| UNSPSC-code |
45111902 |
| Computer system |
|---|
| VESA mounting |
Yes |
| Computer case |
|---|
| VESA mounting |
Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
15 - 80% |
| Heat dissipation |
65 BTU/h |
| Weight & dimensions |
|---|
| Width |
840.2 mm |
| Depth |
135.4 mm |
| Height |
117.3 mm |
| Weight |
3.2 kg |
| Packaging content |
|---|
| Packaging content |
Poly Studio X70; AC power adapter; HDMI cable; Power cable; CAT 5E LAN cable; Poly TC10 touch controller; Display mounting clamp |
| Cables included |
AC, HDMI, LAN (RJ-45) |
