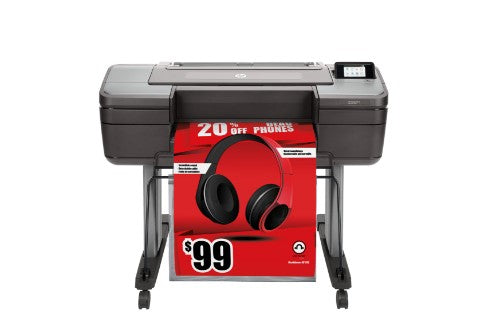

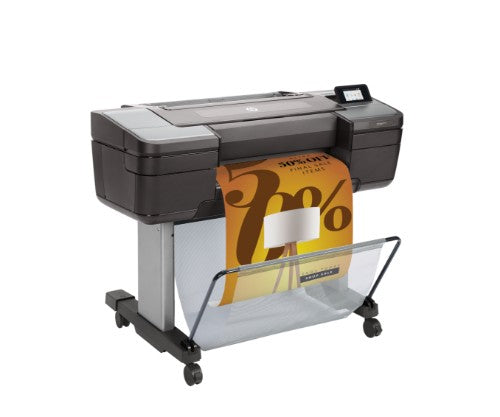

HP Designjet Z6 24-in PostScript Printer

DesignJet Z6 24-in PostScript Printer

Key Features

• Print

Reasons To Buy

PRECISE—Clearly distinguish subtle details

Read details more clearly and see high-contrast colour with new high-definition HP printheads.
No need for light inks with HP's dual drop technology.
Get smooth gradients, even for challenging colour combinations, with HP Pixel Control.
Work with water- and fade-resistant prints, indoors and out, with HP Vivid Photo Inks.^[1]

FAST—Work without delays

Handle even the most complex files with powerful processing architecture and the Adobe PDF Print Engine.^[2]
Cut maps to different sizes in fewer steps with the first printer including an integrated vertical trimmer.^[3]
Print up to 20% faster^[4] with 2400 nozzle-per-inch, high-definition HP printheads.
Spend less time on media changes and adjustments with dual roll support and automatic roll switching.^[3]

SECURE—Protect your work and your information

Protect printers/data from unauthorized access with HP Secure Boot, Allowlisting, and encrypted hard disk.
Protect documents, preserve confidentiality with authentication solutions like PIN printing, card readers.^[5]
Secure your printers with HP JetAdvantage Security Manager; manage your fleet remotely with HP Web Jetadmin.

Description

Dynamic security enabled printer Certain HP printers are intended to work only with cartridges that have a new or reused HP chip or electronic circuitry. These printers use dynamic security measures to block cartridges using a non-HP chip or electronic circuitry. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. Reused HP chips and electronic circuitry enable the use of reused, remanufactured, and refilled cartridges.

Specifications

Print technology
Print resolution colour	2400 x 1200 DPI
Maximum resolution	2400 x 1200 DPI
Number of print cartridges	6
Print technology	Inkjet
Printing colours	Cyan, Photo black, Matte black, Magenta, Yellow
Print head	3
Colour	Yes
Page description languages	PostScript 3, PDF 1.7, HP-GL/2, TIFF, JPEG, HP-RTL, CALS G4
HP Dynamic security	Yes
Printing
Print resolution colour	2400 x 1200 DPI
Maximum resolution	2400 x 1200 DPI
Print speed (normal quality)	66.9 m²/hr
Number of print cartridges	6
Print technology	Inkjet
Printing colours	Cyan, Photo black, Matte black, Magenta, Yellow
Print head	3
Colour	Yes
Page description languages	PostScript 3, PDF 1.7, HP-GL/2, TIFF, JPEG, HP-RTL, CALS G4
Copying
Copying	No
Scanning
Scanning	No
Print quality
Maximum resolution	2400 x 1200 DPI
Printing colours	Cyan, Photo black, Matte black, Magenta, Yellow
Drivers included	Yes
Paper handling
Roll widths supported	279 - 610mm
Maximum roll width	61 cm
Maximum print size	A1 (594 x 841 mm)
ISO A-series sizes (A0...A9)	A1, A2, A3, A4
Media width (sheets)	610 mm
Media thickness	0.8 mm
Maximum roll diameter	13.5 cm
Cut sheets	Yes
Custom media sizes	210 x 279 to 610 x 1676 mm
Paper tray media types	Coated paper, Bond paper, Photo paper, Banner
Media types
Paper tray media types	Coated paper, Bond paper, Photo paper, Banner
Media formats
Roll widths supported	279 - 610mm
Maximum roll width	61 cm
ISO A-series sizes (A0...A9)	A1, A2, A3, A4
Maximum roll diameter	13.5 cm
Display
Display	LED
Ports & interfaces
USB port	Yes
Direct printing	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
USB connector	USB Type-A
Ethernet LAN	Yes
RJ-45 ports quantity	1
Mobile printing technologies	HP ePrint
Wi-Fi Direct	Yes
Performance
Internal memory	4096 MB
Display	LED
Product colour	Grey
Certification	Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC), South Africa (SABS)
Storage media	HDD
Built-in display	Yes
HP segment	Business
Country of origin	China, Thailand
Network
Direct printing	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN	Yes
Design
Display	LED
Product colour	Grey
Built-in display	Yes
Brand-specific features
HP Dynamic security	Yes
HP ePrint	Yes
HP Web Jetadmin	Yes
HP Care Pack	Yes
HP segment	Business
HP GTIN (EAN/UPC)	192018667501
Power
Power consumption (typical)	100 W
Power consumption (off)	0.1 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (sleep)	6.5 W
Operational conditions
Storage temperature (T-T)	-25 - 55 °C
Operating relative humidity (H-H)	20 - 80%
Operating temperature (T-T)	5 - 40 °C
System requirements
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Sustainability
Sustainable technologies and materials	30% post-consumer recycled plastic; Free, convenient HP ink cartridge and printhead recycling with HP Planet Partners; Highest WIR Print Permanence Ratings in the Industry; ENERGY STAR certified; EPEAT registered
Sustainability compliance	Yes
Sustainability certificates	ENERGY STAR
Carbon footprint
Total carbon footprint (kg of CO2e)	815
Carbon emissions, manufacturing (kg of CO2e)	755
Carbon emissions, logistics (kg of CO2e)	52
Carbon emissions, end-of-life (kg of CO2e)	1
Total carbon emissions, w/o use phase (kg of CO2e)	7
Weight & dimensions
Width	1293 mm
Depth	695 mm
Height	998 mm
Weight	66 kg
Package width	1440 mm
Package depth	766 mm
Package height	718 mm
Package weight	97 kg
Packaging data
Bundled software	HP Click printing software, HP PrintOS, HP Web Jetadmin, HP DesignJet Utility including HP Color Center, HP Partner Link, HP JetAdvantage Security Manager (optional), HP SmartStream (optional)
Package width	1440 mm
Package depth	766 mm
Package height	718 mm
Package weight	97 kg
Drivers included	Yes
Cartridge(s) included	Yes
Quick start guide	Yes
Software
Bundled software	HP Click printing software, HP PrintOS, HP Web Jetadmin, HP DesignJet Utility including HP Color Center, HP Partner Link, HP JetAdvantage Security Manager (optional), HP SmartStream (optional)
Certificates
Safety	EU (LVD and EN 60950-1 compliant); Russia, Belarus, Kazakhstan (EAC)
Electromagnetic compatibility	Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC), South Africa (SABS)
Certification	Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC), South Africa (SABS)
Packaging content
Bundled software	HP Click printing software, HP PrintOS, HP Web Jetadmin, HP DesignJet Utility including HP Color Center, HP Partner Link, HP JetAdvantage Security Manager (optional), HP SmartStream (optional)
Drivers included	Yes
Cartridge(s) included	Yes
Quick start guide	Yes
Features
Country of origin	China, Thailand
Other features
Safety	EU (LVD and EN 60950-1 compliant); Russia, Belarus, Kazakhstan (EAC)
Electromagnetic compatibility	Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC), South Africa (SABS)
UNSPSC-code	43212104
Logistics data
Harmonized System (HS) code	84433210
Technical details
Box contents	HP DesignJet Z6 PostScript Printer, printheads, introductory ink cartridges, printer stand and media bin, spindle, quick reference guide, setup poster, power cord
Sustainable technologies and materials	30% post-consumer recycled plastic; Free, convenient HP ink cartridge and printhead recycling with HP Planet Partners; Highest WIR Print Permanence Ratings in the Industry; ENERGY STAR certified; EPEAT registered
Sustainability compliance	Yes
Sustainability certificates	ENERGY STAR
Harmonized System (HS) code	84433210
Total carbon footprint (kg of CO2e)	815
HP GTIN (EAN/UPC)	192018667501
