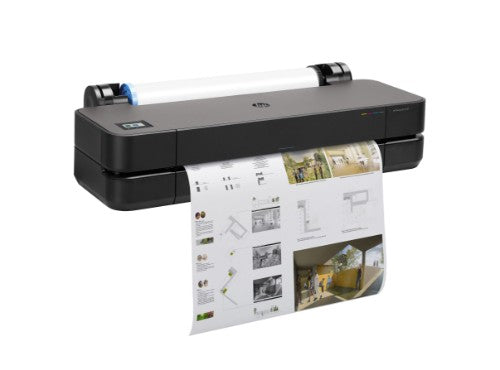

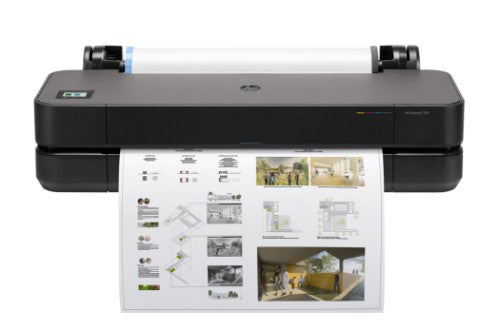

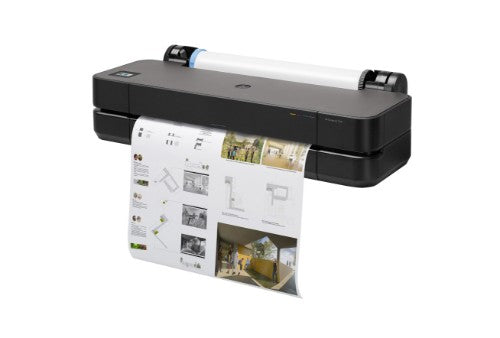

HP Designjet T230 24-in Printer

DesignJet T230 24-in Printer

Key Features

• Print

Reasons To Buy

RESPONSIBLY DESIGNED—Reduce energy and plastic use

Save 65% energy^[5] with the printer on/off auto scheduler and enjoy efficient ink maintenance routines^[6].
Use up to 95% less ink for routine maintenance vs competitor and get up to 100 extra A1 pages per month.^[4]
Made with at least 40% recycled plastic^[8] and the first HP large format printer containing recycled metal.^[9]
Certified by UL ECOLOGO®.^[10] Registered in EPEAT Gold and achieves EPEAT Climate+^[11].

INTUITIVE—Easy, effortless printing

Simplify printing with the new HP Click Print solutions—save time with real-print preview.^[2]
With an accessory, print multi-size A4/A to A1/D projects without manually switching the media source.^[3]
Print your jobs and manage your plotter virtually anywhere, anytime with the HP app.^[4]

OPTIMIZED—Fits the way you work

Save space with the world's smallest plotters^[1] designed to fit your office.
Avoid waiting by the printer with printing as fast as 35 seconds per A1/D plot.^[12]
Protect your printer from cyberthreats with HP Wolf Essential Security.
Get high-quality results—HP Bright Office Inks deliver better line accuracy^[13] and up to 34% more gamut.^[14]

Description

Dynamic security enabled printer Certain HP printers are intended to work only with cartridges that have a new or reused HP chip or electronic circuitry. These printers use dynamic security measures to block cartridges using a non-HP chip or electronic circuitry. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. Reused HP chips and electronic circuitry enable the use of reused, remanufactured, and refilled cartridges.

Specifications

Print technology
Print resolution colour	2400 x 1200 DPI
Maximum resolution	2400 x 1200 DPI
Number of print cartridges	4
Print technology	Thermal inkjet
Printing colours	Black, Cyan, Magenta, Yellow
Print head	1 (cyan , magenta, yellow, black)
Colour	Yes
Page description languages	JPEG, URF
HP Dynamic security	Yes
Printing
Print resolution colour	2400 x 1200 DPI
Maximum resolution	2400 x 1200 DPI
Number of print cartridges	4
Print technology	Thermal inkjet
Printing colours	Black, Cyan, Magenta, Yellow
Print speed (normal quality, A1)	68 pph
Print head	1 (cyan , magenta, yellow, black)
Colour	Yes
Page description languages	JPEG, URF
Copying
Copying	No
Scanning
Scanning	No
Print quality
Maximum resolution	2400 x 1200 DPI
Printing colours	Black, Cyan, Magenta, Yellow
Paper handling
Maximum print size	610 x 1897 mm
ISO A-series sizes (A0...A9)	A1, A2, A3, A4
Media thickness	0.3 mm
Maximum roll diameter	10 cm
Cut sheets	Yes
Custom media sizes	210 x 279 to 610 x 1897 mm
Paper tray media types	Coated paper, Plain paper, Semi-glossy paper, Glossy paper, Bond paper, Photo paper, Matte paper, Heavy paper, Satin paper
Roll weight (rear roll)	4.1 kg
Media types
Paper tray media types	Coated paper, Plain paper, Semi-glossy paper, Glossy paper, Bond paper, Photo paper, Matte paper, Heavy paper, Satin paper
Media formats
ISO A-series sizes (A0...A9)	A1, A2, A3, A4
Maximum roll diameter	10 cm
Ports & interfaces
USB port	Yes
Wi-Fi	Yes
Direct printing	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
USB 2.0 ports quantity	1
Ethernet LAN	Yes
Mobile printing technologies	Apple AirPrint
Wi-Fi Direct	Yes
Performance
Internal memory	512 MB
Product colour	Grey
Certification	Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/RED Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class B product: Korea (KCC)
Built-in display	No
HP segment	Business
Country of origin	China
Introduction year	2024
Network
Wi-Fi	Yes
Direct printing	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN	Yes
Design
Product colour	Grey
Built-in display	No
Brand-specific features
HP Dynamic security	Yes
HP segment	Business
HP GTIN (EAN/UPC)	198701026549, 198701413844, 198701026563, 198701413851, 198701026570, 198701413868, 198701026617
HP GTIN (EAN/UPC) with options	(ABG) 198701026549; (AC4) 198701413844; (ACJ) 198701026563; (AKV) 198701413851; (B19) 198701026570; (B1K) 198701413868; (BCD) 198701026617
Power
Power consumption (typical)	35 W
Power consumption (standby)	0.2 W
Power consumption (off)	0.2 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (sleep)	2.1 W
Operational conditions
Storage temperature (T-T)	-25 - 55 °C
Operating relative humidity (H-H)	20 - 80%
Operating temperature (T-T)	5 - 40 °C
Operating altitude	0 - 3000 m
System requirements
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Sustainability
Sustainability compliance	Yes
Sustainability certificates	ENERGY STAR
Carbon footprint
Total carbon footprint (kg of CO2e)	250
Carbon emissions, manufacturing (kg of CO2e)	200
Carbon emissions, logistics (kg of CO2e)	14
Carbon emissions, end-of-life (kg of CO2e)	15
Total carbon emissions, w/o use phase (kg of CO2e)	23
Weight & dimensions
Width	1013 mm
Depth	440 mm
Height	285 mm
Weight	21.5 kg
Package width	1155 mm
Package depth	575 mm
Package height	405 mm
Package weight	27 kg
Packaging data
Bundled software	HP Click App for Windows and macOS, HP Click Driver for Windows 11, HP app for Windows, macOS, Android and iOS
Package width	1155 mm
Package depth	575 mm
Package height	405 mm
Package weight	27 kg
Software
Bundled software	HP Click App for Windows and macOS, HP Click Driver for Windows 11, HP app for Windows, macOS, Android and iOS
Certificates
Electromagnetic compatibility	Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/RED Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class B product: Korea (KCC)
Certification	Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/RED Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class B product: Korea (KCC)
Packaging content
Bundled software	HP Click App for Windows and macOS, HP Click Driver for Windows 11, HP app for Windows, macOS, Android and iOS
Features
Country of origin	China
Other features
Electromagnetic compatibility	Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/RED Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class B product: Korea (KCC)
UNSPSC-code	43212104
Technical details
Box contents	HP DesignJet T230 24-in Printer, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord
Sustainability compliance	Yes
Sustainability certificates	ENERGY STAR
Total carbon footprint (kg of CO2e)	250
General Product Safety Regulation (GPSR) URL	https://support.hp.com/gb-en/product/setup-user-guides/hp-designjet-t230-printer/model/33508832?sku=5HB07D#B19 ; https://kaas.hpcloud.hp.com/pdf-public/pdf_11352036_en-US-1.pdf
HP GTIN (EAN/UPC)	198701026549, 198701413844, 198701026563, 198701413851, 198701026570, 198701413868, 198701026617
HP GTIN (EAN/UPC) with options	(ABG) 198701026549; (AC4) 198701413844; (ACJ) 198701026563; (AKV) 198701413851; (B19) 198701026570; (B1K) 198701413868; (BCD) 198701026617
