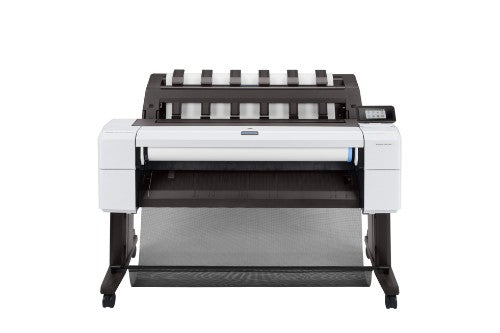

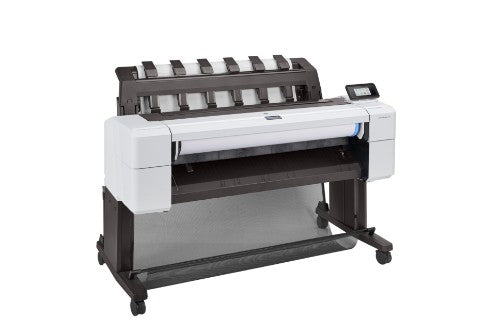

HP Designjet T1600 36-in PostScript Printer Plus Edition

DesignJet T1600 36-in PostScript Printer Plus Edition

Key Features

• Print

Reasons To Buy

EXPERIENCE SIMPLICITY—At the high-end

Adopt a smart workstyle with the easiest PDF printing^[1] using HP Click software.
Empower your workforce. Easily print and share jobs from the cloud with your mobile device and HP app.
Fits your workplace with the most compact footprint and most quiet operation, with up to 87% less noise.^[2]

UNLEASH PERFORMANCE—To turn design into delivery

Showcase design versatility from precise line drafts to boldly colored 3D renders, with HP Bright Office Inks.
Provide the highest accuracy and display the finest details with the unique Adobe PDF Print Engine.^[3]
Meet deadlines with the fastest speed up to 180 A1/hr.^[2]
Cut out unproductive tasks with integrated automatic print stacking, up to 100 pages.

SECURE – World's most secure large-format printer^[4]

Rely on the best network protection with features like HP Secure Boot and whitelisting.^[4]
Control who accesses the printer and its confidential documents with secure user authentication.
Keep your fleet secure at any time with HP Security Manager^[6].

Description

Dynamic security enabled printer Certain HP printers are intended to work only with cartridges that have a new or reused HP chip or electronic circuitry. These printers use dynamic security measures to block cartridges using a non-HP chip or electronic circuitry. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. Reused HP chips and electronic circuitry enable the use of reused, remanufactured, and refilled cartridges.

Specifications

Print technology
Print resolution colour	2400 x 1200 DPI
Maximum resolution	2400 x 1200 DPI
Number of print cartridges	6
Print technology	Thermal inkjet
Printing colours	Cyan, Photo black, Matte black, Magenta, Yellow, Grey
Print head	1 universal printhead
Colour	Yes
Page description languages	PostScript 3, PDF 1.7, HP-GL/2, TIFF, JPEG, HP-RTL, CALS G4
HP Dynamic security	Yes
Printing
Print resolution colour	2400 x 1200 DPI
Maximum resolution	2400 x 1200 DPI
Number of print cartridges	6
Print technology	Thermal inkjet
Printing colours	Cyan, Photo black, Matte black, Magenta, Yellow, Grey
Print head	1 universal printhead
Colour	Yes
Page description languages	PostScript 3, PDF 1.7, HP-GL/2, TIFF, JPEG, HP-RTL, CALS G4
Copying
Copying	No
Scanning
Scanning	No
Print quality
Maximum resolution	2400 x 1200 DPI
Printing colours	Cyan, Photo black, Matte black, Magenta, Yellow, Grey
Paper handling
Maximum print size	914 x 1219 mm
ISO A-series sizes (A0...A9)	A0, A1, A2, A3, A4
Media width (sheets)	914 mm
Media thickness	0.5 mm
Custom media sizes	210 x 279 to 914 x 1219 mm
Paper tray media types	Coated paper, Semi-glossy paper, Glossy paper, Bond paper, Photo paper, Matte paper, Heavy paper, Satin paper
Media types
Paper tray media types	Coated paper, Semi-glossy paper, Glossy paper, Bond paper, Photo paper, Matte paper, Heavy paper, Satin paper
Media formats
ISO A-series sizes (A0...A9)	A0, A1, A2, A3, A4
Ports & interfaces
USB port	No
Wi-Fi	No
Direct printing	Yes
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Mobile printing technologies	HP ePrint
Wi-Fi Direct	Yes
Performance
Product colour	Black, White
Certification	Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC)
Internal storage capacity	128 GB
Built-in display	Yes
RAM capacity	500 GB
HP segment	Business
Country of origin	China, Thailand
Network
Wi-Fi	No
Direct printing	Yes
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Design
Product colour	Black, White
Built-in display	Yes
Brand-specific features
HP Dynamic security	Yes
HP ePrint	Yes
HP segment	Business
HP GTIN (EAN/UPC)	193808345609
Power
Power supply	100 W
Power consumption (off)	0.3 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (sleep)	10 W
Operational conditions
Storage temperature (T-T)	-25 - 55 °C
Operating relative humidity (H-H)	20 - 80%
Operating temperature (T-T)	5 - 35 °C
Sustainability
Sustainability compliance	Yes
Sustainability certificates	ENERGY STAR
Carbon footprint
Total carbon footprint (kg of CO2e)	930
Carbon emissions, manufacturing (kg of CO2e)	745
Carbon emissions, logistics (kg of CO2e)	51
Carbon emissions, end-of-life (kg of CO2e)	126
Total carbon emissions, w/o use phase (kg of CO2e)	8
Weight & dimensions
Width	1390 mm
Depth	760 mm
Height	1080 mm
Weight	82 kg
Package width	1477 mm
Package depth	767 mm
Package height	800 mm
Package weight	113 kg
Packaging data
Bundled software	HP Click App, HP mobile, ePrint and iOS/Android support plus the HP Smart app for mobile, HP Web Jetadmin, HP JetAdvantage Security Manager, HP SmartTracker (optional), HP Click Driver for Windows 11
Package width	1477 mm
Package depth	767 mm
Package height	800 mm
Package weight	113 kg
Cartridge(s) included	Yes
Manual	Yes
Software
Bundled software	HP Click App, HP mobile, ePrint and iOS/Android support plus the HP Smart app for mobile, HP Web Jetadmin, HP JetAdvantage Security Manager, HP SmartTracker (optional), HP Click Driver for Windows 11
Certificates
Safety	EU (LVD and EN 60950-1 compliant); Russia, Belarus, Khazakstan (EAC); Ukraine (UA)
Electromagnetic compatibility	Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC)
Certification	Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC)
Packaging content
Bundled software	HP Click App, HP mobile, ePrint and iOS/Android support plus the HP Smart app for mobile, HP Web Jetadmin, HP JetAdvantage Security Manager, HP SmartTracker (optional), HP Click Driver for Windows 11
Cartridge(s) included	Yes
Manual	Yes
Features
Country of origin	China, Thailand
Other features
Safety	EU (LVD and EN 60950-1 compliant); Russia, Belarus, Khazakstan (EAC); Ukraine (UA)
Electromagnetic compatibility	Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC)
UNSPSC-code	43212107
Technical details
Box contents	HP DesignJet T1600 Printer, printer stand and media bin, spindle, printheads, introductory ink cartridges, user guide, power cords
Sustainability compliance	Yes
Sustainability certificates	ENERGY STAR
Total carbon footprint (kg of CO2e)	930
HP GTIN (EAN/UPC)	193808345609
