600 x 600 dpi, 1200 dpi, 3 Colour, RGB LED, 4000 pages, 50 sheets , 80g/m2, 27-413 g/m2, USB 3.0, Wi-Fi, 100-240V, 296mm x 169mm x 176mm, 3.7kg
Key Features
- Exceptional Speed – 35ppm / 70 ipm1 scan speeds for efficient and productive scanning
- Optional Network Adaptor – One single unit can be connected to a network so the unit can be shared by multiple users
- Wireless Scanning – USB 3.0 connectivity to rapidly connect, capture, edit, store and share business documents
- Scan directly to popular cloud services – scan to Dropbox, Sharepoint®, Evernote®, Google Drive® for efficient file sharing2
- Scan to searchable PDF's – scan and edit documents; save scanned documents as PDF files. OCR software included for easy filing
- Advanced colour and image adjustments – Colour Enhance, Colour Dropout, automatic paper size detection for innovative and productive document management
- Connect to document management software – TWAIN and ISIS drivers (ISIS available via web download) for seamless integration between the scanner and custom built business applications
- 50 sheet ADF capacity – for rapid capture of large multi-page documents
- Powerful Duty Cycle – Scan up to 4,000 sheets per day
- Versatile paper handling – Scan folded pages, thick business cards and single sheets
Description

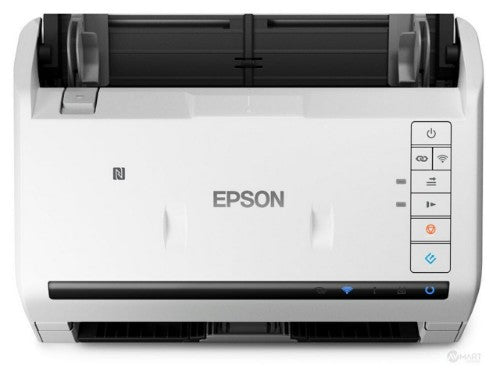

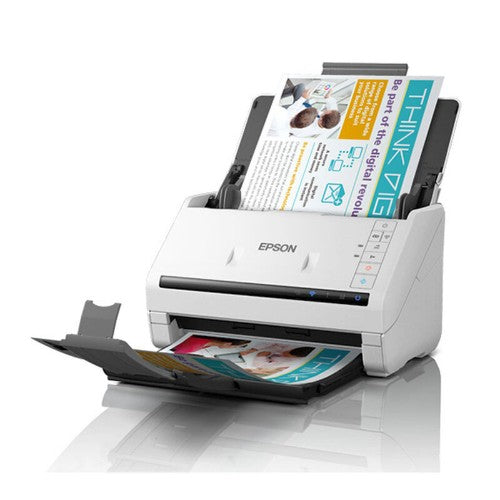

The EPSON WorkForce DS-570WII document scanner takes efficiency to a new level for business environments where fast and easy document management is required. Scan documents, business cards, and identification cards directly to popular cloud services with the included software. The scanner is very easy to use and includes intuitive one-touch scanning.
Boasting speeds of up to 35ppm and a built-in Automatic Document Feeder, the DS-570WII will easily scan large amounts of documents in no time. Additional features include Wi-Fi and USB 3.0 connectivity that enables rapid connection to capture, edit, store and share business documents.
With a slow mode feature for scanning crumpled or fragile documents, the ability to scan challenging media has never been easier. The Active Separation Roller System prevents tedious document double feeds ensuring every piece of paper gets scanned and the Double Feed Detection Skip (DFDS) means you can scan difficult media like envelopes or documents with post-it notes. Auto Scan Mode enables the processing of a vast number of documents as manageable amounts, enabling them to be scanned as one file.
Single-pass double-sided scanning ensures rapid document processing, while it's possible to scan a versatile array of media such as paper as thin as 27gsm, or thick card at 413gsm. The A3 carrier sheet speeds up the process by automatically stitching larger documents back together digitally.
Specifications
| Scanning |
|---|
| Maximum scan size |
215.9 x 6096 mm |
| Optical scanning resolution |
600 x 600 DPI |
| Enhanced scan resolution |
1200 x 1200 DPI |
| Colour scanning |
Yes |
| Duplex scanning |
Yes |
| Input colour depth |
30 bit |
| Output colour depth |
24 bit |
| ADF scan speed (b/w, A4) |
35 ppm |
| Duplex ADF scan speed (b/w, A4) |
70 ipm |
| Input greyscale depth |
30 bit |
| Design |
|---|
| Product colour |
White |
| Scanner type |
Sheet-fed scanner |
| Performance |
|---|
| Sensor type |
SingleSensor |
| Light source |
LED |
| Scan file formats |
JPEG,PDF,TIFF |
| Daily duty cycle (max) |
4000 pages |
| Supported network protocols |
TCP/IP, DHCP, DNS, SNMP, SLP |
| Input capacity |
|---|
| Auto document feeder (ADF) input capacity |
50 sheets |
| Paper handling |
|---|
| Scanning media types supported |
Business Card, Plastic Card |
| Auto Document Feeder (ADF) media weight |
27 - 413 g/m² |
| Letter |
Yes |
| Legal |
Yes |
| ISO B-series sizes (B0...B9) |
B5 |
| ISO A-series sizes (A0...A9) |
A4,A5,A6 |
| Ports & interfaces |
|---|
| USB port |
Yes |
| Power |
|---|
| Power supply type |
AC |
| Power consumption (typical) |
12 W |
| Power consumption (off) |
0.1 W |
| Input voltage |
100-240 V |
| Power consumption (sleep) |
1.3 W |
| Sleep mode |
Yes |
| Network |
|---|
| Wi-Fi |
Yes |
| Supported network protocols |
TCP/IP, DHCP, DNS, SNMP, SLP |
| System requirements |
|---|
| Windows operating systems supported |
Windows 10,Windows 7,Windows 7 x64,Windows 8,Windows 8 x64,Windows 8.1,Windows 8.1 x64,Windows Vista,Windows Vista x64 |
| Mac operating systems supported |
Mac OS X 10.6 Snow Leopard,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks,Mac OS X 11.0 Big Sur |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 35 °C |
| Storage temperature (T-T) |
-25 - 60 °C |
| Operating relative humidity (H-H) |
15 - 80% |
| Operating temperature (T-T) |
41 - 95 °F |
| Weight & dimensions |
|---|
| Width |
296 mm |
| Depth |
169 mm |
| Height |
176 mm |
| Weight |
3.7 kg |
| Packaging content |
|---|
| Cables included |
AC, USB |
| Packaging content |
Epson WorkForce DS-570WII, Setup Sheet, Warranty / Registration Card, USB Cable, Software CD-ROM, AC Adapter & Cable |
| Other features |
|---|
| Wi-Fi |
Yes |
| Scanner type |
Sheet-fed scanner |
