Thermal line printing, 203 DPI × 203 DPI, 100mm/sec, WLAN, 590g
Description

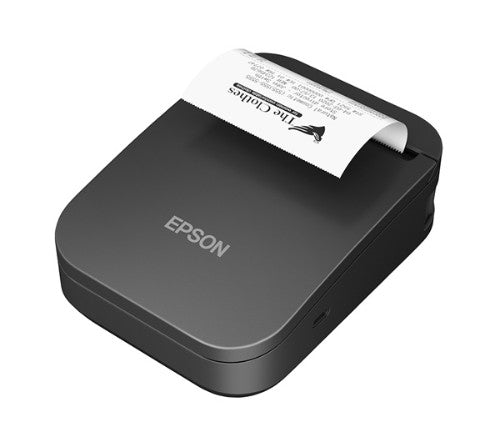

The TM-P80II is a series of printers with 80mm (three-inch) receipts ideal for retail and food service and logistics. It offers the speed, reliability and connectivity options needed to meet the requirements of today's iOS, Android and Windows printing applications.
This Product is available in 4 different configurations.
Portable and lightweight – ultra compact, easy for users to wear (belt clip included); helps prevent carry fatigue
Robust design – IP54-rated enclosure is water- and dust-resistant; holds up to rigorous use, with a drop rating 1.8m*
Long-lasting battery life – up to 47 hours on a full charge1 (battery and USB-C cable included)
Fast battery charging capability – fully charges as fast as 2.5 hours2 (charger sold separately)
Versatile connectivity – wireless connectivity options (Wi-Fi 5 or Bluetooth 5.0) to provide connections to a wide variety of devices and networks
Exceptional print quality and ultra-fast print speed – quickly produce sharp and crisp text, barcodes and logos at up to 100 mm/sec
High-capacity media basket to help maximize uptime – 51 mm outer diameter allows for large paper capacity; replace rolls less often
Modern design – sleek design suited to complement your business
Enhance your printing with accessories – choose from a wide range of optional accessories, such as single or quad battery charger, spare battery, belt strap, shoulder strap and soft carrying case (each sold separately)
Specifications
| Printing |
|---|
| Type |
Mobile printer |
| Print technology |
Thermal |
| Maximum resolution |
203 x 203 DPI |
| Performance |
|---|
| Type |
Mobile printer |
| Print technology |
Thermal |
| Maximum resolution |
203 x 203 DPI |
| Built-in barcodes |
AZTECCODE, Code 128 (A/B/C), Code 39, Code 93, Data Matrix, EAN13, EAN8, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Limited, GS1 DataBar Truncated, MaxiCode, PDF417, QR Code, UPC-A, UPC-E |
| Paper handling |
|---|
| Supported paper width |
79.5 mm |
| Roll core diameter (max) |
5.1 cm |
| Ports & interfaces |
|---|
| Connectivity technology |
Wired & Wireless |
| USB port |
Yes |
| USB connector |
USB Type-C |
| Serial interface |
No |
| Network |
|---|
| Ethernet LAN |
No |
| Wi-Fi |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Print technology |
|---|
| Type |
Mobile printer |
| Print technology |
Thermal |
| Print quality |
|---|
| Maximum resolution |
203 x 203 DPI |
| Technical details |
|---|
| Product colour |
Black |
| Built-in barcodes |
AZTECCODE, Code 128 (A/B/C), Code 39, Code 93, Data Matrix, EAN13, EAN8, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Limited, GS1 DataBar Truncated, MaxiCode, PDF417, QR Code, UPC-A, UPC-E |
| Autocutter durability |
0.5 million cuts |
| Cutter |
Yes |
| Features |
|---|
| Product colour |
Black |
| Built-in barcodes |
AZTECCODE, Code 128 (A/B/C), Code 39, Code 93, Data Matrix, EAN13, EAN8, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Limited, GS1 DataBar Truncated, MaxiCode, PDF417, QR Code, UPC-A, UPC-E |
| Autocutter durability |
0.5 million cuts |
| Cutter |
Yes |
| Design |
|---|
| Product colour |
Black |
| Power |
|---|
| Power source type |
Battery |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 45 °C |
| Weight & dimensions |
|---|
| Width |
104 mm |
| Depth |
153 mm |
| Height |
66 mm |
| Weight |
590 g |
