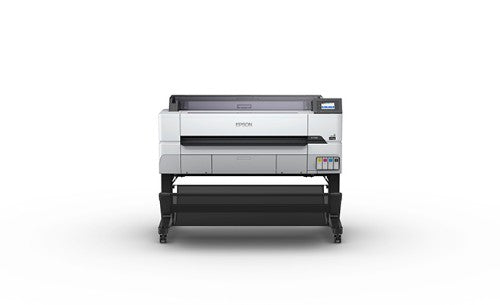

SureColor T5465 - 36", 2400dpi x 1200dpi, 4.3" LCD, USB, Ethernet, Wi-Fi, 1GB RAM, 50 dB
Description
The Epson SureColor Technical series is a versatile and compact range of printers. They are designed for users who need to produce large-format colour and black-and-white images, economically and at high speed. They are compatible with a wide range of media from basic bond paper, to photographic media. They support high resolution print with dense and consistent colour. They are ideal for maps, plans, drawings, schematics, geological survey diagrams, sales presentations, POS, posters and displays.
The SC-T5465 features Epson's latest heat-free PrecisionCore™ print head and aqueous UltraChrome® XD2 pigment ink. It will print an A1 image in as little as 22s with output that dries almost instantly to be water and rub resistant. Ink ships in a range of cartridge sizes to suit different production and cost-per-print requirements. Designed for businesses that want to produce wide format prints, the printer is supplied with a stand and paper basket and can be installed against a wall or in a corner. It also ships with software that enables easy printing from office and CAD/GIS applications.
High Productivity – prints an A1 image in as little as 22s and includes an integrated auto-cutter
High Precision – 2400x1200dpi resolution Epson heat-free PrecisionCore™ print head with Variable Sized Dot Technology (VSDT) for super fine lines, superior half tones, solid and consistent colour
High Durability – all-pigment Epson UltraChrome™ XD2 ink dries almost instantly to be moisture & scratch resistant
High Reliability – solid construction backed with a comprehensive 'heads-n-all' warranty with service cover extendable up to 5 years
High Flexibility – supports roll paper up to 36" (914mm) wide, sheet paper up to A0 and has integrated scanner support for optional MFP functionality
High Convenience – large 4.3" touchscreen panel with easy to use interface, front loaded ink and media, Barcode Roll Media Management system and comes with a stand and basket to catch your prints
Low Running Cost – ultra-low power consumption, uses individual colour cartridges in a choice of sizes up to 700ml and you can track how much your prints are costing with the LFP Accounting tool
Easy Integration – compact design, high speed Gigabit Ethernet, convenient WiFi / WiFi Direct & AirPrint support, HP-GL/2 & RTL emulation
Greater Connectivity – Connect a USB thumb drive to the printer and print JPEG or TIFF images directly from the USB
Specifications
| Print technology |
|---|
| Maximum resolution |
2400 x 1200 DPI |
| Number of print cartridges |
4 |
| Print technology |
Inkjet |
| Printing colours |
Black, Cyan, Magenta, Yellow |
| Print head |
PrecisionCore TFP with VSDT and Auto Head Alignment |
| Colour |
Yes |
| Page description languages |
ESC P, Epson ESC/P2, HP-GL/2, HP-RTL |
| Printing |
|---|
| Maximum resolution |
2400 x 1200 DPI |
| Number of print cartridges |
4 |
| Print technology |
Inkjet |
| Printing colours |
Black, Cyan, Magenta, Yellow |
| Print head |
PrecisionCore TFP with VSDT and Auto Head Alignment |
| Colour |
Yes |
| Borderless printing |
Yes |
| Page description languages |
ESC P, Epson ESC/P2, HP-GL/2, HP-RTL |
| Print quality |
|---|
| Maximum resolution |
2400 x 1200 DPI |
| Printing colours |
Black, Cyan, Magenta, Yellow |
| Paper handling |
|---|
| Maximum roll width |
91.4 cm |
| ISO A-series sizes (A0...A9) |
A0, A1, A2, A3, A4 |
| ISO B-series sizes (B0...B9) |
B1 |
| Media thickness |
0.08 - 0.3 mm |
| Maximum roll diameter |
17 cm |
| Cut sheets |
Yes |
| Borderless printing |
Yes |
| Paper tray media types |
Plain paper, Roll |
| Media types |
|---|
| Paper tray media types |
Plain paper, Roll |
| Media formats |
|---|
| Maximum roll width |
91.4 cm |
| ISO A-series sizes (A0...A9) |
A0, A1, A2, A3, A4 |
| ISO B-series sizes (B0...B9) |
B1 |
| Maximum roll diameter |
17 cm |
| Borderless printing |
Yes |
| Display |
|---|
| Display |
LCD |
| Ports & interfaces |
|---|
| USB port |
Yes |
| Wi-Fi |
Yes |
| Direct printing |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Performance |
|---|
| Internal memory |
1000 MB |
| Display |
LCD |
| Product colour |
Grey, White |
| Sound pressure level (printing) |
50 dB |
| Colour display |
Yes |
| Control type |
Touch |
| Built-in display |
Yes |
| Display diagonal |
10.9 cm (4.3") |
| Network |
|---|
| Wi-Fi |
Yes |
| Direct printing |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Design |
|---|
| Display |
LCD |
| Product colour |
Grey, White |
| Colour display |
Yes |
| Control type |
Touch |
| Built-in display |
Yes |
| Display diagonal |
10.9 cm (4.3") |
| Sound emission |
|---|
| Sound pressure level (printing) |
50 dB |
| Power |
|---|
| Power consumption (typical) |
38 W |
| Power consumption (standby) |
13 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
20 - 80% |
| Operating temperature (T-T) |
10 - 35 °C |
| System requirements |
|---|
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP |
| Mac operating systems supported |
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur |
| Weight & dimensions |
|---|
| Width |
1385 mm |
| Depth |
966 mm |
| Height |
1070 mm |
| Weight |
76 kg |
| Package width |
1548 mm |
| Package depth |
850 mm |
| Package height |
1100 mm |
| Package weight |
113 kg |
| Packaging data |
|---|
| Package width |
1548 mm |
| Package depth |
850 mm |
| Package height |
1100 mm |
| Package weight |
113 kg |
| Cartridge(s) included |
Yes |
| Packaging content |
|---|
| Cartridge(s) included |
Yes |
