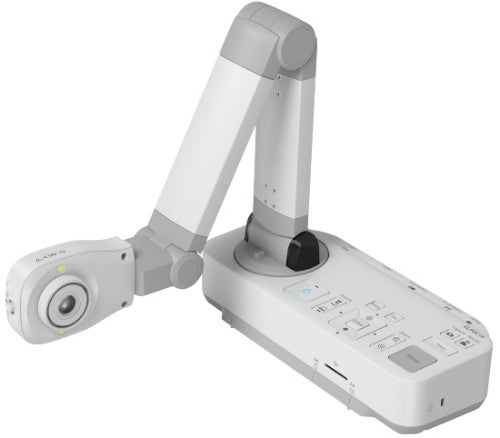

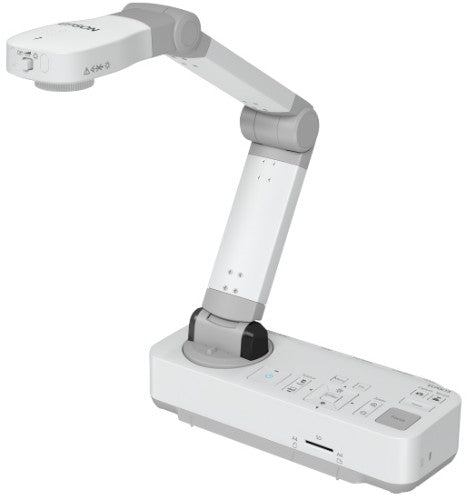

Epson ELP-DC13 document camera White 25.4 / 2.7 mm (1 / 2.7") CMOS USB 1.1

1/2.7", CMOS, 1920 x 1080, 30fps, A3, digital zoom 16, auto focus, freeze

Description

Education document camera
This user-friendly document camera contains a range of features for the classroom, making it the ideal partner for Epson education projectors

ELPDC13
Bring lessons to life with this user-friendly document camera and share pictures and objects in Full HD on a large screen for the benefit of the whole class. Bursting with a range of clever features and functionality, teachers can create a dynamic environment to enhance student learning. Benefitting from a lightweight and portable design, it is easy to transport between classrooms.

Display in Full HD
Display images and 3D objects in Full HD with incredible detail for the whole class to see. Thanks to a large A3 shooting area, two full pages from a textbook can be displayed. Smooth video streaming is achieved with impressive clarity and without motion blur at 30 frames per second. Thanks to a 16 x digital zoom and built-in LED light, even intricate detail can be seen. Ideal for science lessons, minute objects can be displayed on a large screen thanks to a microscope attachment.

Added flexibility
Live images and video content, including that stored on a SD card, can be output to multiple displays thanks to parallel video output. Thanks to split-screen functionality, teachers can present two pieces of content side-by-side to help highlight teaching points, such as plant and animal growth. Teachers can maintain student engagement by operating the document camera directly from the projected image at the front of the classroom, including starting and stopping video recordings.

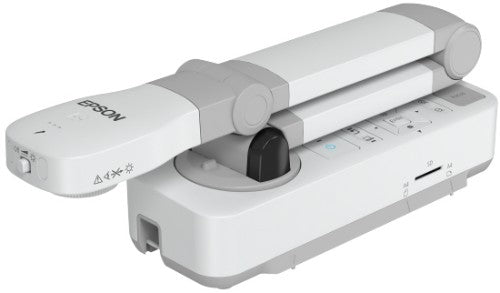

Portable and lightweight
A lightweight and portable design and included soft carry case makes it easy to move between classrooms. With a Kensington lock and security bar, schools and education establishments can have added peace of mind when the camera is unattended or not in use.

Key Features
- Clear, smooth images: Full HD 1080p camera and 30-frames-per-second screen refresh rate
- Capture every detail: 16 x digital zoom; one-touch auto focus and freeze function
- Large A3 capture area: Ideal for projecting maps, detailed diagrams and 3D objects
- Illuminate hard-to-see objects: Built-in LED light
- Added peace of mind: Kensington lock and security bar for theft protection

Specifications

Camera
Optical sensor size	25.4 / 2.7 mm (1 / 2.7")
Sensor type	CMOS
Supported graphics resolutions	1920 x 1080 (HD 1080)
Maximum frame rate	30 fps
White balance	Auto
Image freeze	Yes
Light source	LED
Lens system
Auto focus	Yes
Digital zoom	16x
Shooting area (WxD)	297 x 420 mm

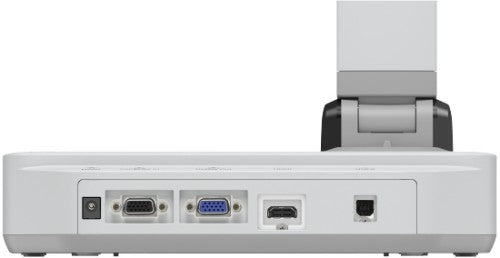

Ports & interfaces
DC-in jack	Yes
Interface	USB 1.1
USB connector type	USB Type-B
VGA (D-Sub) output ports	1
VGA (D-Sub) input ports	1
Technical details
Image viewer	Yes
Image quality adjustment	Brightness, Contrast
Illumination	Yes
Bundled software	Easy Interactive Tools, TWAIN driver for Epson Document Camera (for Windows)
Document size (max)	A3
Horizontal rotation angle	-90 - 90°
Vertical rotation angle	-90 - 90°
Product colour	White
Lamp type	LED
Cable lock slot	Yes
Built-in microphone	Yes
Cable lock slot type	Kensington
Country of origin	Philippines
Power
Power supply type	AC
Power consumption (typical)	13 W
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
System requirements
Mac compatibility	Yes
Windows operating systems supported	Windows 10, Windows 7, Windows 8.1, Windows Vista
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%
Weight & dimensions
Weight	2.5 kg
Packaging data
Quantity per pack	1 pc(s)
Package width	180 mm
Package weight	4.58 kg
Package height	235 mm
Package depth	445 mm
Packaging content
Manual	Yes
Carrying case	Yes
Cables included	AC, USB, VGA
