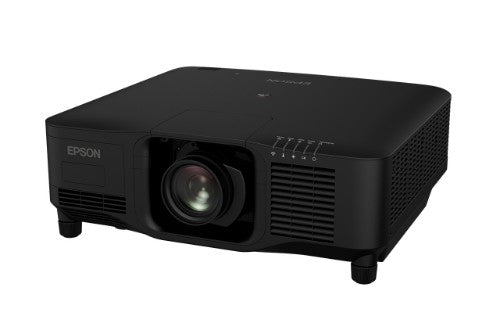

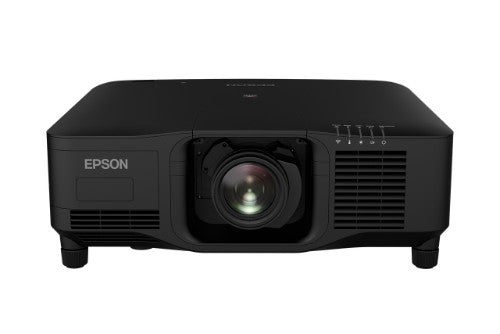

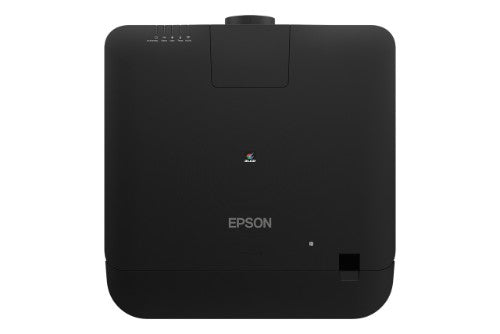

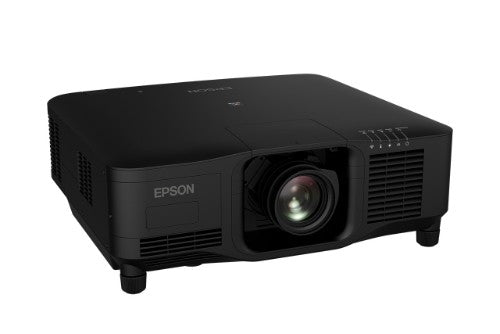

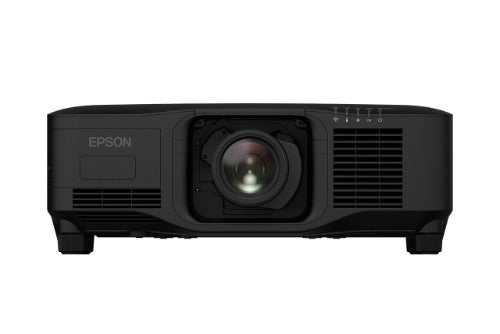

20000 lm 4K projector
Key Features
- Patented 4K and imaging technology Outstanding 4K image quality delivers superb immersivity
- Ultra-compact and lightweight The world's smallest and lightest 20,000lm 4K projector
- Cross-platform lens compatibility Lets you build the optimal projection solution for every requirement
- Fit-and-forget reliability Filter-free design and IP5X dust resistance
- Reduced environmental impact Energy-efficient with reduced requirements for packaging and transport
Description
The world's smallest and lightest 20,000lm 4K projectorBuilding on the success of the EB-PU Series, the EB-PQ2220B is not only the smallest and lightest in its class, but is highly affordable, versatile, extremely energy-efficient and packed with advanced features.
A revolutionary 4K experienceMarvel at the clarity of the images produced by Epson’s latest 4K technology. Combining its patented, state of the art 4K Crystal Motion, panel thermo-control and double micro-lens array technologies, Epson achieves a new benchmark in 4K image quality.

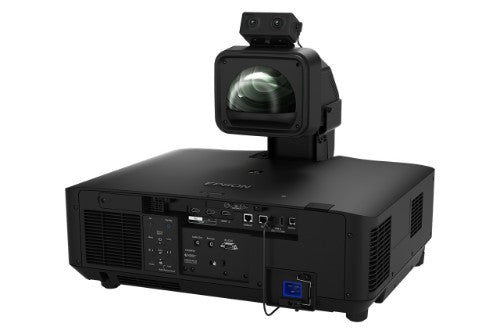

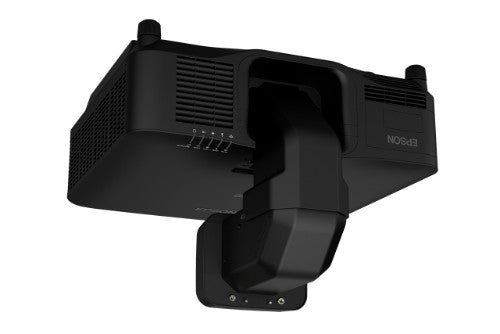

Fantastically flexibleFeaturing a wide range of connectivity, including 12G SDI in/out and HDMI in/out supporting 120Hz 4K. This high brightness projector also benefits from cross-platform lens compatibility, using the same 4K lenses as the existing EB-PU Series, including the ELPLX02S zero-offset ultra-short throw lens which is perfect for immersive spaces. This projector is supplied 'body-only', allowing you to build the perfect solution for your installation.
ReliableBuilt for exceptional reliability, the EB-PQ2220B features IP5X rated dust resistance² and up to 20,000 hours maintenance-free operation, or even longer in extended modes.
Extensive softwareCompatible with the ELPEC01 camera, Epson Projector Professional Tool and Epson Projector Config Tool for a wealth of calibration, assistance and control functionality.
Specifications
| Projector |
|---|
| Number of colours |
1.07 billion colours |
| Projector brightness |
20000 ANSI lumens |
| Projection technology |
3LCD |
| Projector native resolution |
UHD 4K (3840x2160) |
| Native aspect ratio |
16:9 |
| Supported aspect ratios |
16:9, 21:9 |
| Contrast ratio (typical) |
5000000:1 |
| Projector brightness (economic mode) |
14000 ANSI lumens |
| White light output |
20000 ANSI lumens |
| Matrix size |
2.64 cm (1.04") |
| Keystone correction, vertical |
-45 - 45° |
| Keystone correction, horizontal |
-30 - 30° |
| Heat dissipation |
4865 BTU/h |
| Colour light output |
20000 ANSI lumens |
| Smart projector |
No |
| Light source |
|---|
| Light source type |
Laser |
| Service life of light source |
20000 h |
| Service life of light source (economic mode) |
30000 h |
| Lens system |
|---|
| Zoom capability |
Yes |
| Throw ratio |
0.34 - 7.16:1 |
| Video |
|---|
| Analog signal format system |
Not supported |
| Full HD |
Yes |
| 3D |
No |
| Video colour modes |
Cinema, Dynamic, Natural, Presentation |

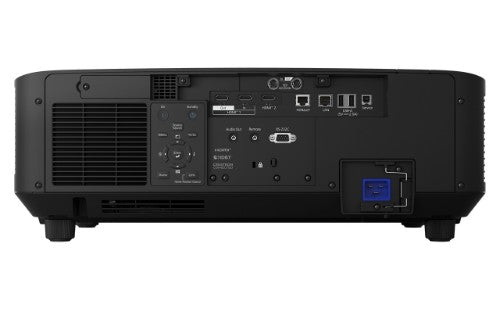

| Ports & interfaces |
|---|
| HDBaseT port |
Yes |
| USB 2.0 Type-B ports quantity |
1 |
| VGA (D-Sub) ports quantity |
0 |
| HDMI ports quantity |
3 |
| USB 2.0 ports quantity |
2 |
| Serial interface type |
RS-232C |
| DVI port |
No |
| AC (power) in |
Yes |
| Service port type |
USB Type-B |
| USB 2.0 Type-A ports quantity |
2 |
| Network |
|---|
| Smart TV |
No |
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Storage |
|---|
| Card reader integrated |
No |
| Features |
|---|
| Interactive |
No |
| On Screen Display (OSD) |
Yes |
| Password protection |
Yes |
| Noise level |
48 dB |
| Noise level (economic mode) |
39 dB |
| High Dynamic Range (HDR) technology |
High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG) |
| High Dynamic Range (HDR) supported |
Yes |
| International Protection (IP) code |
IPX5 |
| Design |
|---|
| Market positioning |
Presentation |
| Product colour |
Black |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Placement |
Ceiling, Desktop, Floor, Flying frame, Wall |
| Display |
|---|
| Built-in display |
No |
| Colour depth |
10 bit |
| Power |
|---|
| Power source |
AC |
| Power consumption (typical) |
1431 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (economy mode) |
975 W |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-10 - 60 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Width |
586 mm |
| Depth |
492 mm |
| Height |
218 mm |
| Weight |
29.2 kg |
| Packaging content |
|---|
| Remote control included |
Yes |
| Batteries included |
Yes |
