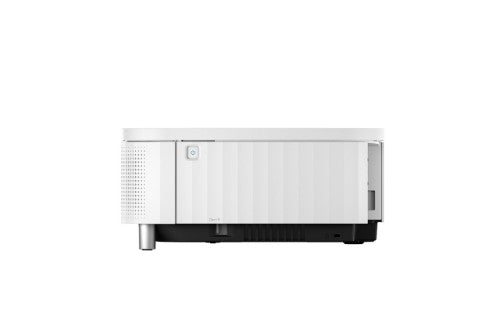

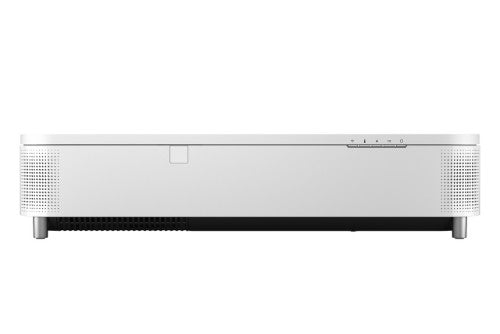

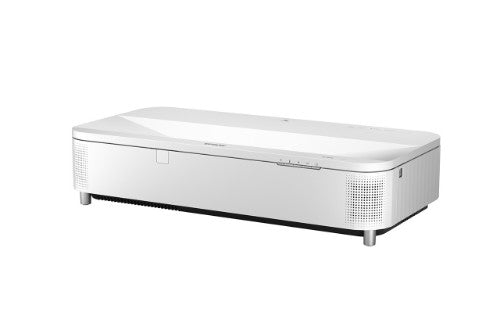

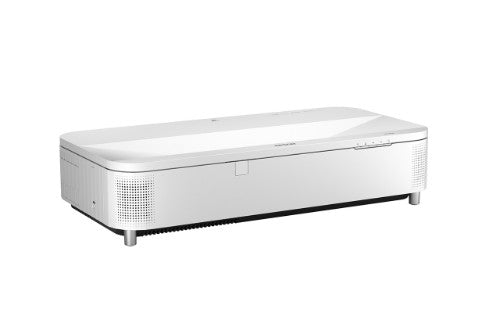

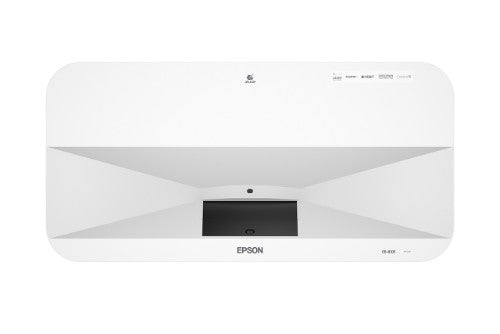

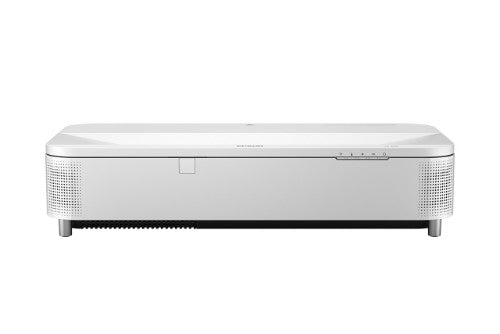

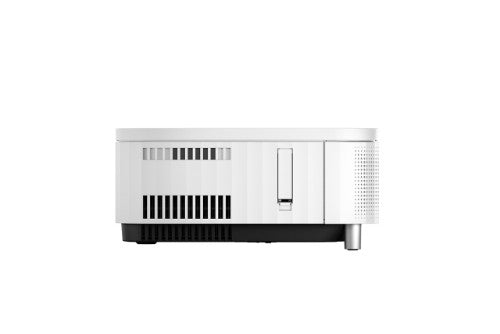

Epson EB-810E Ultra short throw projector 5000 ANSI lumens 3LCD 1080p (1920x1080) White

Super UST 4KE laser display

Description

EB-810E, Epson’s first 4KE super-ultra-short-throw laser display designed for businesses, hybrid working and immersive spaces
The EB-810E can be placed just centimetres away from a wall to create bright 4KE images up to 160”. It projects content in stunning clarity and offers a low cost, energy efficient large display solution with a convenient and quick set up.

EB-810E's super-ultra-short-throw lens allows discreet positioning close to the wall, enabling presenters free access without casting shadows.

With 5,000 lumens CLO and 3LCD technology, the EB-810E is bright and vibrant up-to 160", which enables content visibility from all angles and distances. The experience is immersive and it's extremely simple to use.

Versatile wired and wireless connectivity options, including Miracast™ screen mirroring, ensure effortless, multi-device content sharing.

Weighing only 12.3kg, it is highly portable, and the Epson Setting Assistant App makes setup quick and simple. The ideal display solution suitable for different room sizes, combined with flexible installation options.

The EB-810E supports multiple aspect ratios and multi-projector edge-blending for a low cost, seamless, energy efficient ultra-wide display, perfect for video conferencing.

Paired with Epson's Ambient Light Rejection Screen, the EB-810E's image quality could be mistaken for a video wall or LED display, but it is surprisingly affordable and consumes a fraction of the energy.

Specifications

Projector
Projector brightness	5000 ANSI lumens
Projection technology	3LCD
Projector native resolution	1080p (1920x1080)
Screen size compatibility	2032 - 4064 mm (80 - 160")
Native aspect ratio	16:9
Contrast ratio (typical)	2500000:1
Vertical scan range	192 - 240 Hz
Smart projector	No
Light source
Light source type	Laser
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h
Lens system
Fixed focal length	2.3 mm
Zoom ratio	1.35:1
Focus	Manual
Throw ratio	0.16 - 0.40:1
F-number (relative aperture)	1.8
Video
Analog signal format system	Not supported
Full HD	Yes
3D	No
Video colour modes	Blackboard, Cinema, DICOM simulation mode, Dynamic, Multi-projection, Natural, Presentation

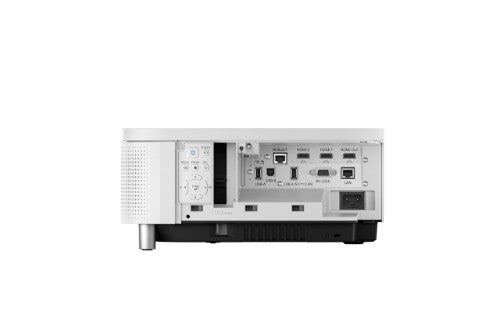

Ports & interfaces
HDBaseT port	Yes
VGA (D-Sub) ports quantity	0
HDMI ports quantity	3
USB 2.0 ports quantity	2
Composite video in	0
Serial interface type	RS-232C
DVI port	No
Component video (YPbPr/YCbCr) in	0
Service port type	USB Type-B
USB 2.0 Type-A ports quantity	2
Network
Smart TV	No
Ethernet LAN	Yes
Ethernet LAN data rates	10,100 Mbit/s
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Ethernet LAN (RJ-45) ports	1
Miracast	Yes
Storage
Card reader integrated	No
Features
Interactive	No
Password protection	Yes
Noise level	35 dB
Noise level (economic mode)	26 dB
High Dynamic Range (HDR) technology	High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG)
High Dynamic Range (HDR) supported	Yes
Multimedia
Built-in speaker(s)	No
Design
Market positioning	Business
Product type	Ultra short throw projector
Product colour	White
Cable lock slot type	Kensington
Cable lock slot	Yes
Placement	Ceiling, Desktop, Wall
Display
Built-in display	No
Power
Power source	AC
Power consumption (typical)	290 W
Power consumption (max)	380 W
Power consumption (PowerSave)	0.4 W
Power consumption (economy mode)	286 W
Operational conditions
Operating temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	695 mm
Depth	341 mm
Height	156 mm
Weight	12.5 kg
Packaging content
Remote control included	Yes
Cables included	AC
Batteries included	Yes
Other features
F-number (relative aperture)	1.8
