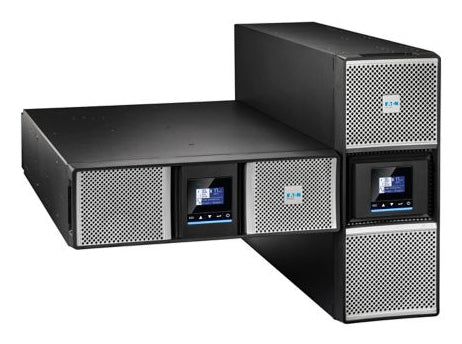

9PX Gen2 Extended battery module (EBM), 240V, 3U, Black/silver, 62kg
Description
Eaton 9PX Gen2 extended battery module (EBM), 240V, Rack/tower, 3U, Rack-mounting kit included
Specifications
| Power |
|---|
| Efficiency |
96.5% |
| Input power factor |
0.99 |
| Efficiency (ECO mode) |
98.9% |
| Performance |
|---|
| Noise level |
37 dB |
| LED indicators |
Yes |
| Features |
|---|
| Efficiency |
96.5% |
| Input power factor |
0.99 |
| Noise level |
37 dB |
| Efficiency (ECO mode) |
98.9% |
| Power consumption (average operating) |
210 W |
| Ports & interfaces |
|---|
| USB port |
Yes |
| AC outlet types |
C13 coupler, C19 coupler |
| RS-232 ports |
1 |
| Battery |
|---|
| Battery technology |
Sealed Lead Acid (VRLA) |
| Typical backup time at half load |
7.1 min |
| Battery voltage |
12 V |
| Battery capacity |
5 Ah |
| Automatic battery test |
Yes |
| Design |
|---|
| Rack capacity |
3U |
| Form factor |
Rackmount/Tower |
| Product colour |
Black |
| Certification |
IEC/EN 62040-1
IEC/EN 62040-2
IEC/EN 62040-3 |
| LED indicators |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3000 m |
| Technical details |
|---|
| Sustainability certificates |
ENERGY STAR |
| Compliance certificates |
BSMI, CE, Electromagnetic Compatibility (EMC), KCC, Low Voltage Directive (LVD), RCM, REACH, RoHS, UKCA, WEEE, cULus |
| Certificates |
|---|
| Certification |
IEC/EN 62040-1
IEC/EN 62040-2
IEC/EN 62040-3 |
| Compliance certificates |
BSMI, CE, Electromagnetic Compatibility (EMC), KCC, Low Voltage Directive (LVD), RCM, REACH, RoHS, UKCA, WEEE, cULus |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Cables included |
Output power cable, USB cable |
| Rack mount kit |
Yes |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR |
| Weight & dimensions |
|---|
| Width |
440 mm |
| Depth |
684 mm |
| Height |
130 mm |
| Weight |
43.1 kg |
| Packaging data |
|---|
| Quick installation guide |
Yes |
| Cables included |
Output power cable, USB cable |
| Rack mount kit |
Yes |
