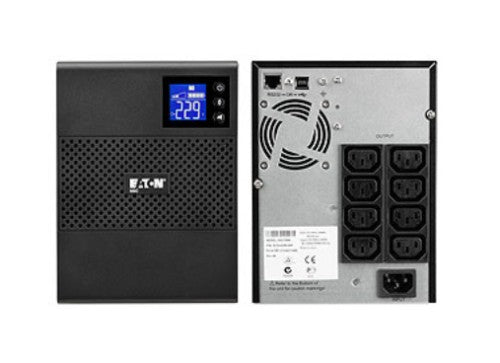

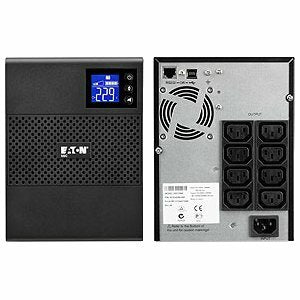

1500VA, 1050W, 1 x C14 In, 8 x C13
Description
Eaton 5SC UPS provides line-interactive, affordable and reliable protection for small business servers. Complementing our range of industry leading UPSs, the 5SC includes an LCD interface for real-time status and measurements, and provides sinewave output for compatibility with today’s most sensitive IT equipment.
Specifications
| Power |
|---|
| Output power capacity |
1.5 kVA |
| Output power |
1050 W |
| Input operation voltage (min) |
184 V |
| Input operation voltage (max) |
276 V |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Efficiency |
97% |
| Input frequency |
50 Hz |
| Performance |
|---|
| Waveform |
Sine |
| Power protection features |
Overload |
| Noise level |
40 dB |
| LED indicators |
Yes |
| Audible alarm(s) |
Yes |
| Features |
|---|
| Output power capacity |
1.5 kVA |
| Output power |
1050 W |
| Input operation voltage (min) |
184 V |
| Input operation voltage (max) |
276 V |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Efficiency |
97% |
| Waveform |
Sine |
| Power protection features |
Overload |
| Noise level |
40 dB |
| Audible alarm(s) |
Yes |
| Input frequency |
50 Hz |
| Ports & interfaces |
|---|
| AC outlets quantity |
8 AC outlet(s) |
| AC outlet types |
C13 coupler |
| Power plug |
C14 coupler |
| USB 2.0 ports quantity |
1 |
| RS-232 ports |
1 |
| Battery |
|---|
| Typical backup time at half load |
13 min |
| Typical backup time at full load |
5 min |
| Design |
|---|
| Form factor |
Tower |
| Product colour |
Black |
| Safety |
IEC 62040-1, CB Report (TUV) |
| Certification |
CE/GS/C-Tick |
| LED indicators |
Yes |
| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 35 °C |
| Storage temperature (T-T) |
-15 - 40 °C |
| Operating altitude |
0 - 3000 m |
| Technical details |
|---|
| Harmonized System (HS) code |
85078000 |
| Certificates |
|---|
| Certification |
CE/GS/C-Tick |
| Safety |
IEC 62040-1, CB Report (TUV) |
| Safety regulation & standards |
|---|
| Safety |
IEC 62040-1, CB Report (TUV) |
| Weight & dimensions |
|---|
| Width |
150 mm |
| Depth |
410 mm |
| Height |
210 mm |
| Weight |
15.2 kg |
| Logistics data |
|---|
| Harmonized System (HS) code |
85078000 |
| Other features |
|---|
| Nominal output voltage |
230 V |
| Nominal input voltage |
230 V |
