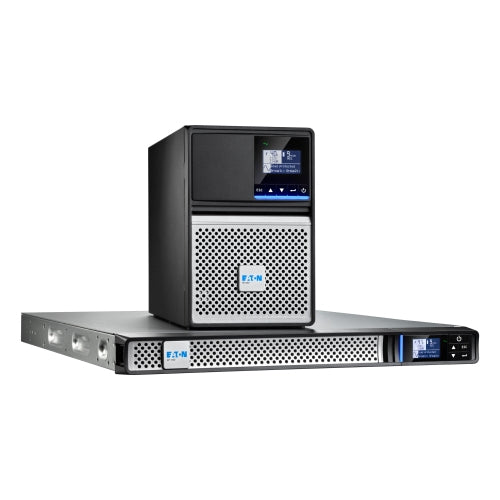

Eaton 5P Gen2 uninterruptible power supply (UPS) Line-Interactive 0.65 kVA 520 W

5P 650VA/ 520W Tower UPS with LCD

Description

Benefit from enhanced power capacity
The 5P Gen2 UPS delivers up to 33% more than comparable models available on the market in a compact format, making it ideal for protecting a wide range of applications.

Get ready for a revolution in battery management
Our new Eaton ABM+ technology provides accurate battery life prediction and timely replacement alerts, powered by machine learning.

Enjoy peace of mind that your data are secure
The Eaton 5P Gen 2 UPS, together with our cybersecure Gigabit Network Card (included in the Netpack versions), meets stringent cybersecurity standards.

Ensure continuous service and data integrity
Our IPM2 a DITPM software makes it easy to remotely monitor and manage IT infrastructure, even in hard-to-reach locations, while our Brightlayer Software Suite provides seamless integration with virtualization environments.

Specifications

Power
Output power capacity	0.65 kVA
Output power	520 W
Input operation voltage (min)	160 V
Input operation voltage (max)	294 V
Input frequency	47/70 Hz
Performance
UPS topology	Line-Interactive
Waveform	Pure sine
Power protection features	Overdischarge
Noise level	40 dB
LED indicators	Yes
Features
UPS topology	Line-Interactive
Output power capacity	0.65 kVA
Output power	520 W
Input operation voltage (min)	160 V
Input operation voltage (max)	294 V
Waveform	Pure sine
Power protection features	Overdischarge
Noise level	40 dB
Input frequency	47/70 Hz
Ports & interfaces
USB port	Yes
Serial interface	Yes
Serial interface type	RS-232
Cabling technology	10/100/1000Base-T(X)
AC outlet types	C13 coupler
Power plug	C14 coupler
Serial ports quantity	1
Battery
Hot-swap battery	Yes
Automatic battery test	Yes
Design
Form factor	Rackmount/Tower
Product colour	Black
Safety	IEC/EN 62040-1, UL1778, CSA22.2
LED indicators	Yes
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Technical details
Sustainability compliance	Yes
Sustainability certificates	ENERGY STAR
Compliance certificates	CE
Certificates
Compliance certificates	CE
Safety	IEC/EN 62040-1, UL1778, CSA22.2
Sustainability
Sustainability compliance	Yes
Sustainability certificates	ENERGY STAR
Safety regulation & standards
Safety	IEC/EN 62040-1, UL1778, CSA22.2
Weight & dimensions
Width	150 mm
Depth	345 mm
Height	233 mm
Weight	7.9 kg
Packaging data
Management card included	Yes
Other features
Nominal output voltage	230 V
